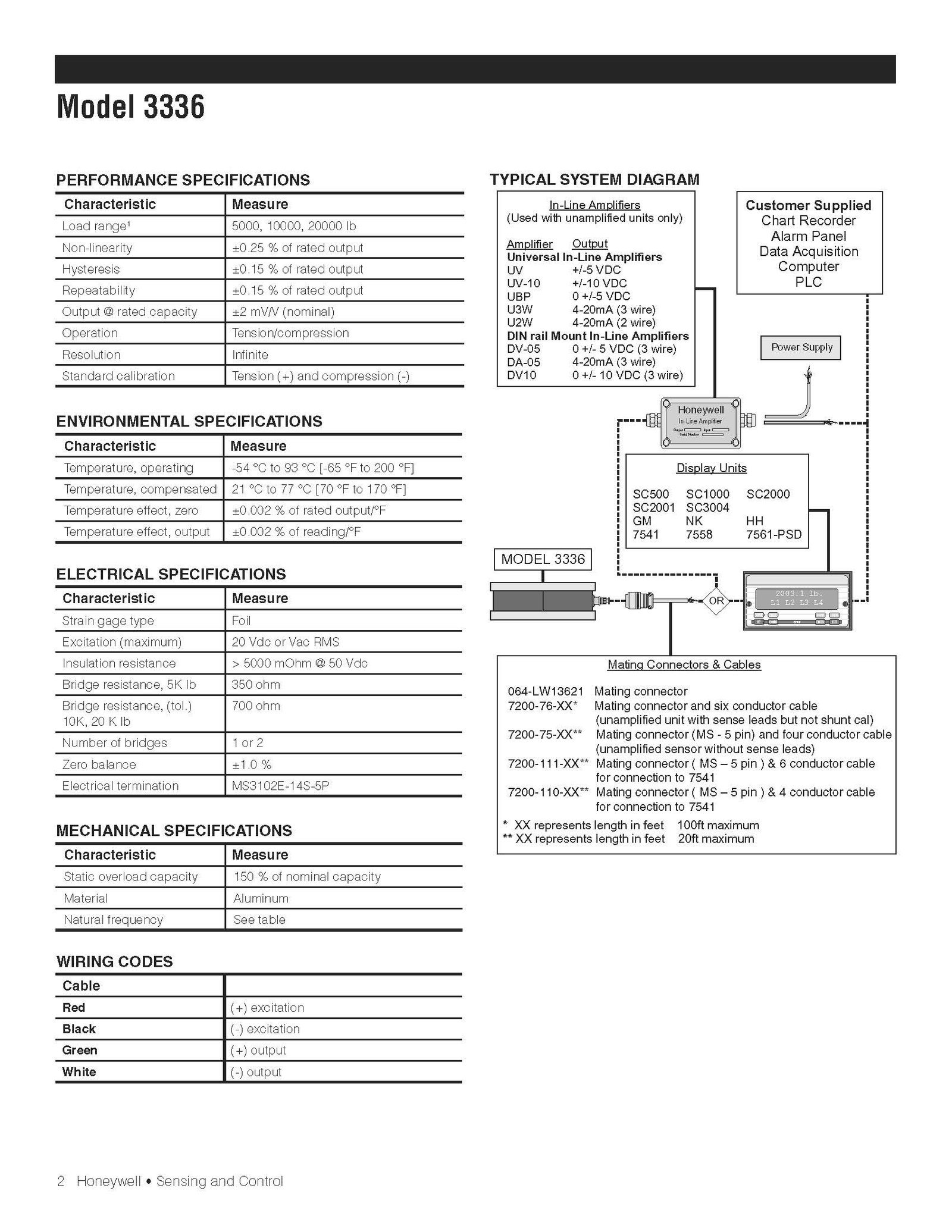

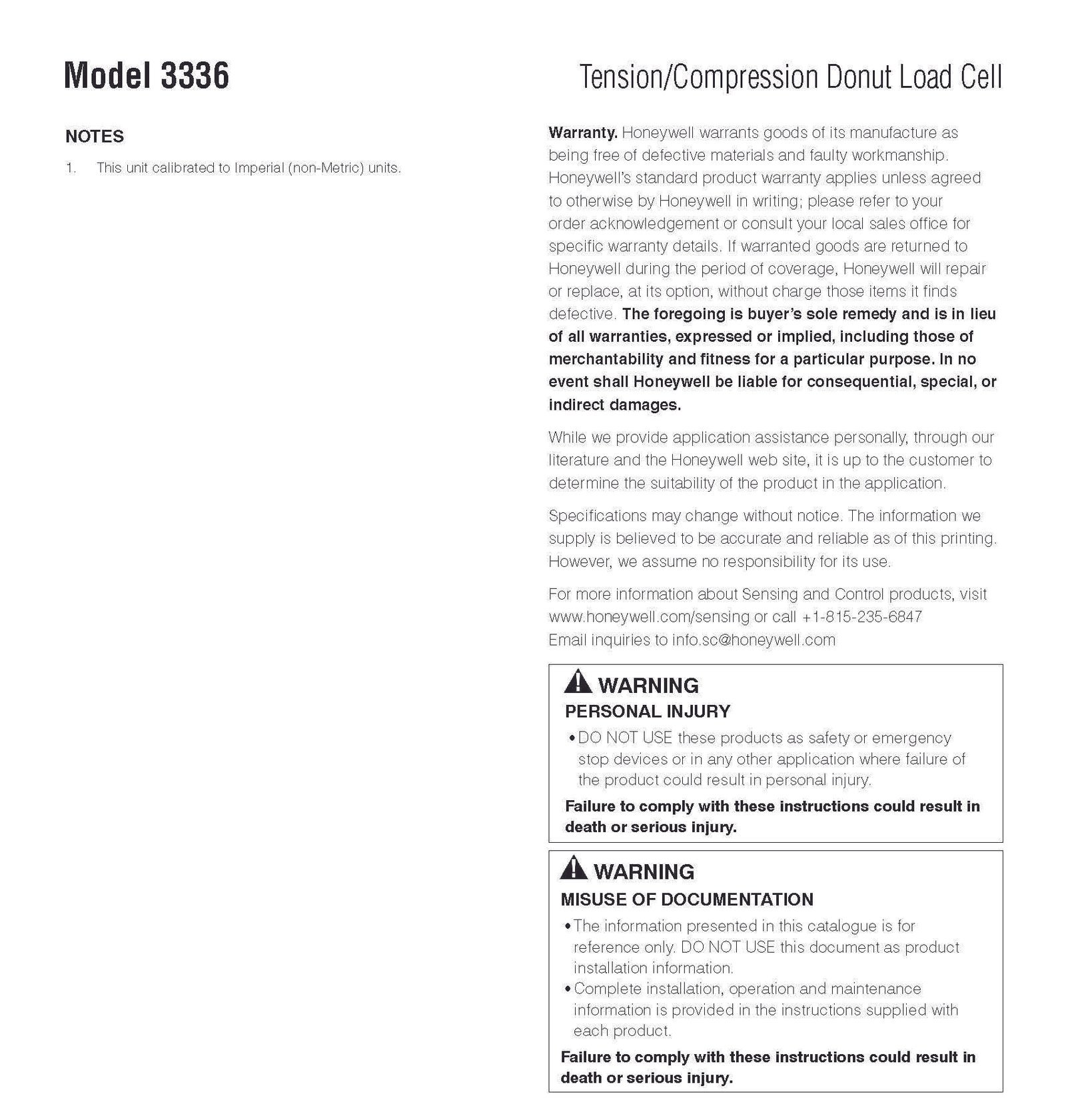

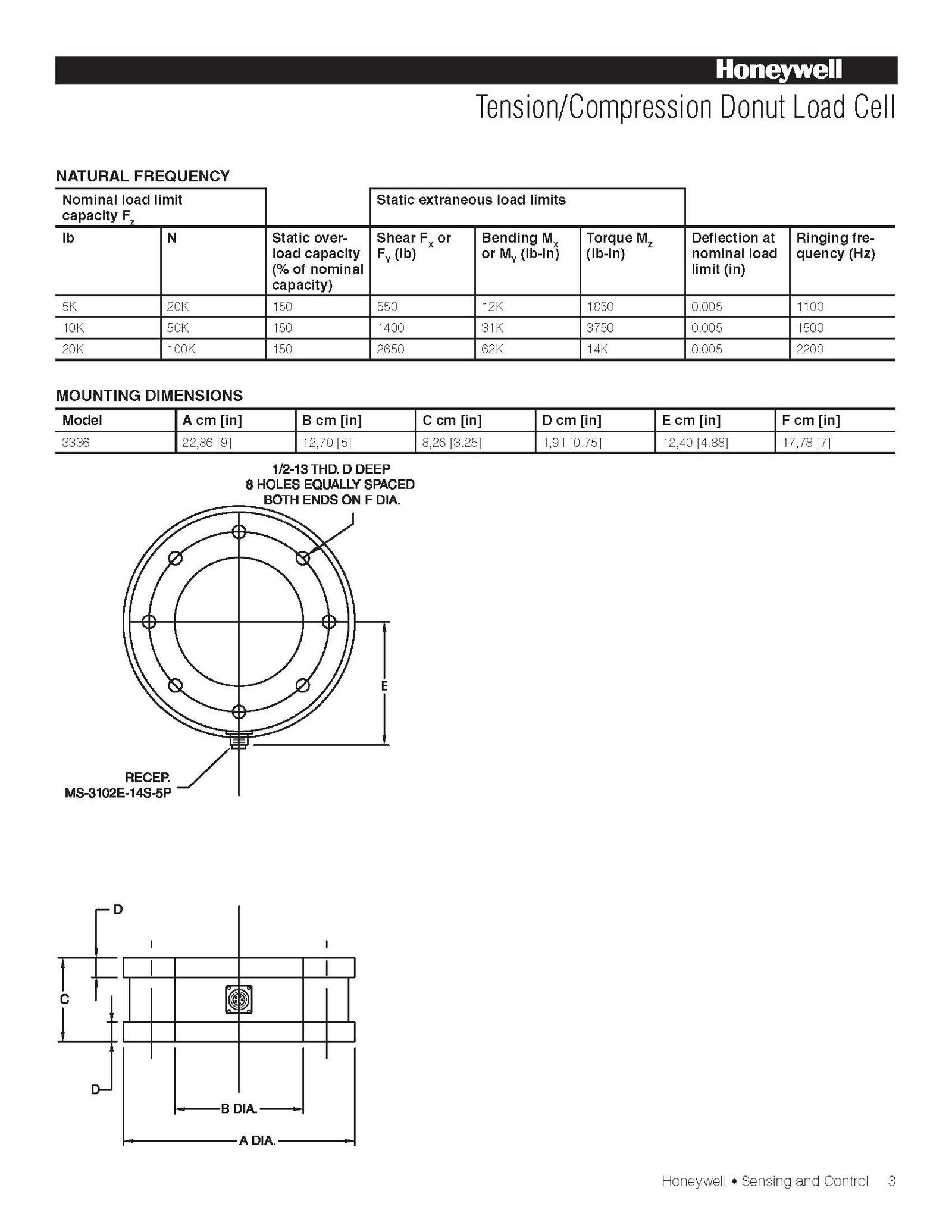

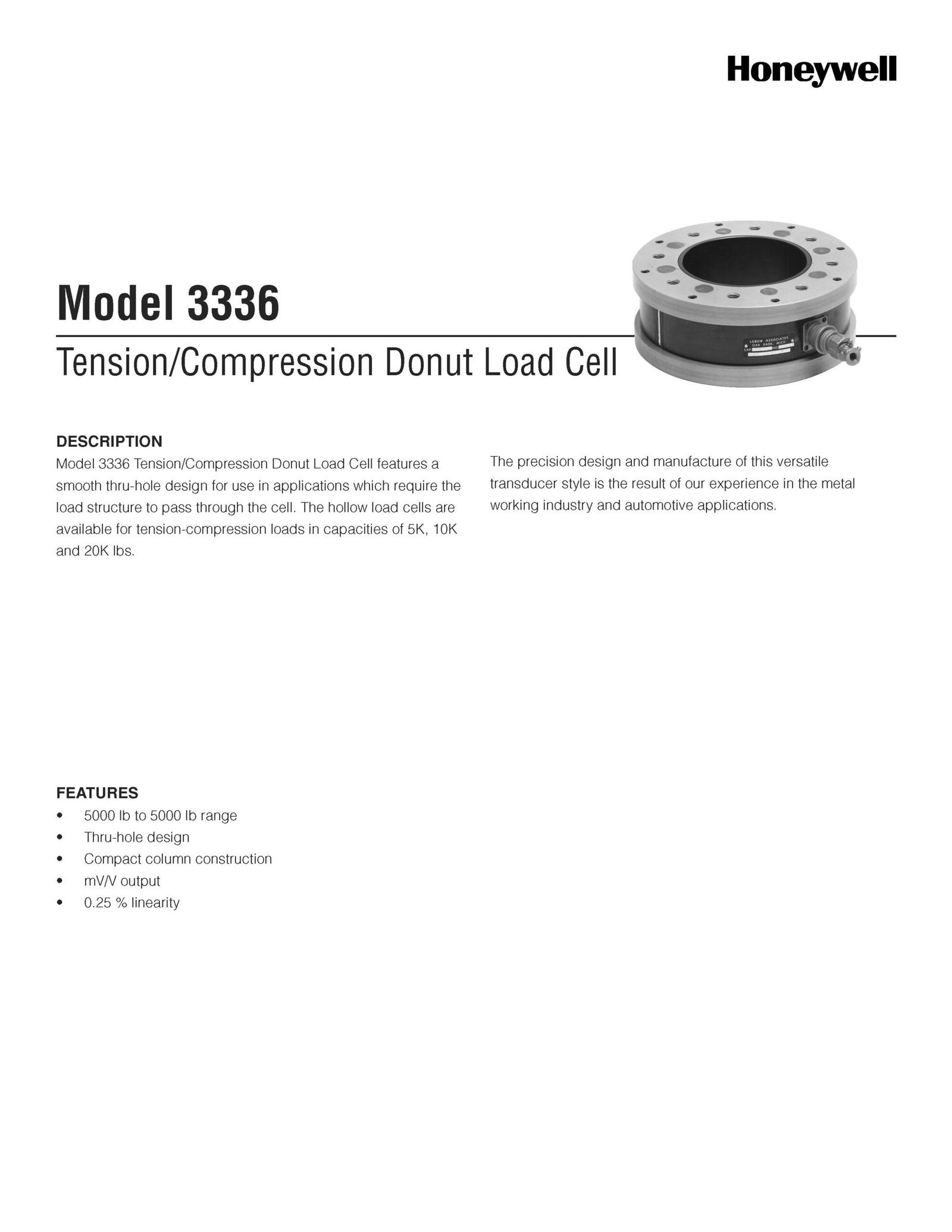

Honeywell / Model 3336 / Tension/Compression Donut Load Cell

Ring Torsion Load Cell – Low Profile, Robust, and Highly Precise

• Available in a wide range of capacities from 1 t to 470 t

• High precision guaranteed with 0.05, C3, and C5 accuracy classes

• Available with fixed cable or plug-type versions

• EX version option for hazardous environments

• New: RTN now supports OIML C5 accuracy class

• New: “CP” protective coating option for corrosion resistance

The Model 3127 fatigue-resistant load cells are extremely resistant to extraneous bending and side loading forces. The structure virtually eliminates bending strains at the strain gage, minimizing the primary cause of load cell failure. Dual bridge option available for feedback control and redundancy.

The compact Model MPB Load Cells are designed for applications requiring high capacity yet where space restrictions require that the cell be small in size. The Model MPB will measure compression load forces in ranges between 15,000 to 2,000,000 pounds.
Applications include impact testing and mine shaft roof simulations. The diameter of these load cells range between 1.25 in and 10 in while the height ranges between approximately 0.63 in and 14 in depending on the load range desired.

Прочные тензодатчики серии C2

Тензодатчики серии C2, выполненные из нержавеющей стали, обладают высокой динамической прочностью на усталость и особенно низкопрофильной конструкцией.
Версия C2A соответствует требованиям точности до класса C4 по стандарту OIML R60.

Model 3632 Compression Donut Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. The hollow load cells are available for compression only loads in capacities of 25K, 50K and 100K lbs. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel.
