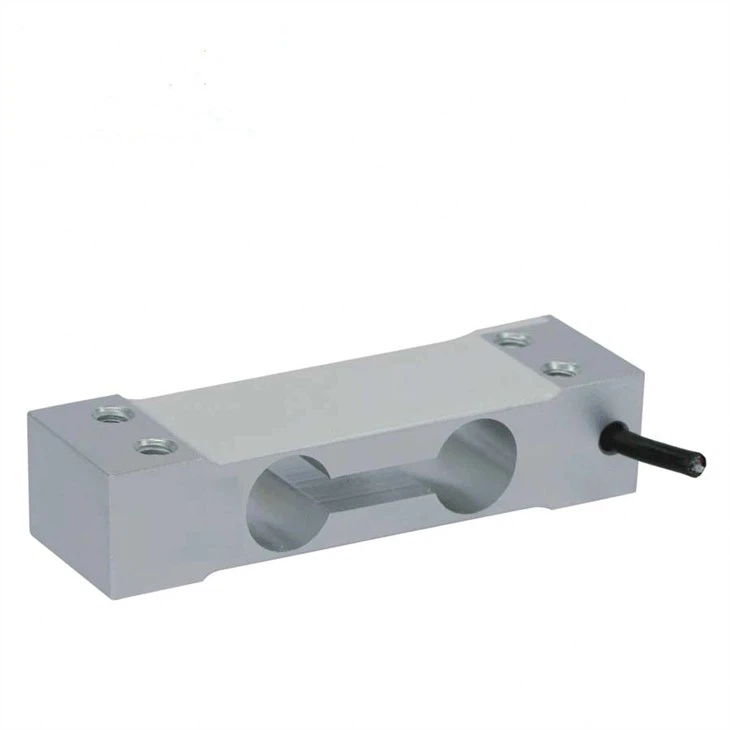

BRG815 Single point weight sensor
Description
Features:
Shear beam weighing load cell, made of aluminum alloy, colorless anodizing,adhesive seal, protective grade lp65.Suitable for small scale electronic scales such as electronic computing scales,measurement scale,platform scale
Product size
Product detials
Parameter
| Rated load | 3~~100kg |
| Precision | C2 |
| Comprehensive error | ±0.03%FS |
| Output | 2.0±0.2mV/V |
| Zero balance | ±3.0%FS |
| Input resistance | 405±6Ω |
| Output resistance | 350±3Ω |
| Insulation resistance | ≥5000mΩ (100VDC) |
| Defend grade | IP65 |
| Use Temp. range | -10~40°C |
| Excitation voltage | 9~12VDC |
| Safe overload | 120% |
| Ultimate overload | 150% |
| Defend grade | IP67&IP68 |
Single point weight sensor installation
