Pancake Load Cell TCF-744A Large Capacity 0.1-60T Tension & Compression Force Sensor With Versatile Mounting
|
Capacity:
|
0.1/0.2/1/2/3/5/10/15/20/25/30/50/60t
|
Combined Error:
|
±0.03%F.S.
|
|
Non-linearity:
|
±0.03%F.S.
|
Repeatability:
|
±0.03%F.S.
|
|
Rated Output:
|
2.0=1%mV/(50-500kg,50-60t;3.01%mV/V(1~30t)
|
Zero Balance:
|
±1.0%F.S.
|
|
Insulation Resistance:
|
>5000MΩ/100VDC
|
Material:
|
Stainless Steel/ Alloy Steel
|
|
Safe Overload:
|
150%F.S.
|
Protection Class:
|
IP66 (Customizable)
|
|
Operation Temp.:
|
-10~60°C
|
Cable Size:
|
Ф5x6000mm
|
Features & Applications
-

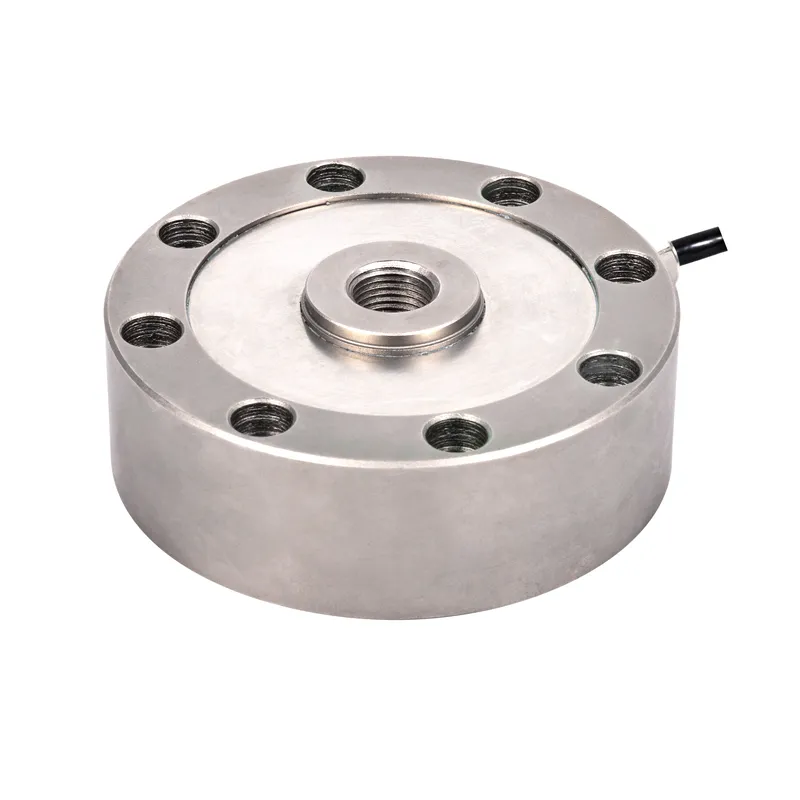

The Pancake or Canister Load Cell model TCF-744A is a large capacity force sensor designed for both tension and compression measurement.
-
Engineered with high-quality stainless steel or alloy steel, this Pancake or Canister Load Cell is built for strength, accuracy, and durability.
-
The Pancake or Canister Load Cell offers a wide capacity range from 0.1 to 60 tons, accommodating diverse force measurement needs.
-
Customizable Pancake or Canister Load Cell configurations are available with different cable lengths, dimensions, capacities, and optional accessories.
-
Featuring a convenient central threaded hole, the Pancake or Canister Load Cell allows easy mounting of load buttons, eye bolts, and other adapters for direct force loading.
-
This versatile Pancake or Canister Load Cell is ideal for force monitoring in injection-molding machines, press machines, and material testing equipment.
-
The Pancake or Canister Load Cell can also be used for weighing applications such as tanks, vessels, and hoppers.
-
Choose the TCF-744A Pancake or Canister Load Cell for a reliable, adaptable, and high-performance solution in demanding industrial environments.
Specifications
| Capacity | 0.1/0.2/1/2/3/5/10/15/20/25/30/50/60t |
| Combined Error | ±0.03%F.S. |
| Non-linearity | ±0.03%F.S. |
| Repeatability | ±0.03%F.S. |
| Rated Output | 2.0=1%mV/(50-500kg,50-60t;3.01%mV/V(1~30t) |
| Zero Balance | ±1.0%F.S. |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Stainless Steel/ Alloy Steel |
| Safe Overload | 150%F.S. |
| Protection Class | IP66(Customizable) |
| Operation Temp. | -10~60°C |
| Cable Size | Ф5x6000mm |

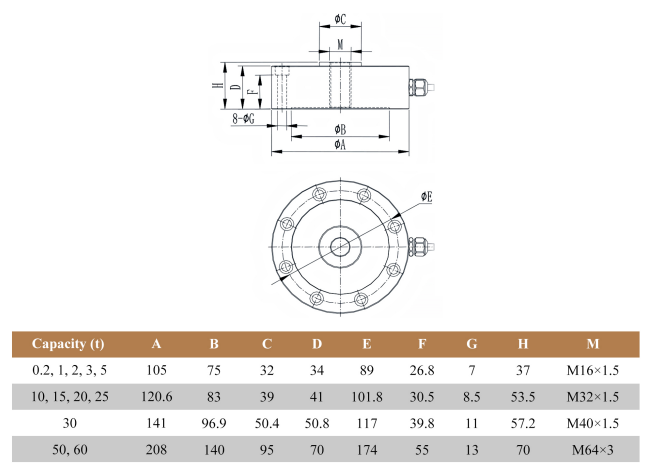

Dimensions(mm)
Load direction
Wiring code
