ATO-LCCT-TJH-3 Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Compression load cells have capacity range from 15 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.
Specification
| Model | ATO-LCCT-TJH-3 |
| Shipping Weight | 7.4~33.8kg |
| Capacity Range * | 20 ton~200 ton |
| Matched Display Controller | ATO-TY5DA3 (Click it to the controller page) |
| Matched Transmitter | ATO-LCTR-NTB3K (Click it to the transmitter page) |
| Accuracy | 0.05~0.1%F.S (linearity + hysteresis + repeatability) |
| Sensitivity | 2.0±0.1mV/V |
| Creep | ±0.05%F.S/30min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.03%F.S/10℃ |
| Temperature Effect on Output | ±0.03%F.S/10℃ |
| Operating Temperature | -20℃~+65℃ |
| Input Impedance | 380±10Ω |
| Output Impedance | 350±3Ω |
| Insulation Resistance | ≥5000MΩ |
| Safety Overload | 150%F.S |
| Bridge Voltage (excitation voltage) | DC 10V |
| Material | Alloy steel |
| Protection Class | IP67 |
| Cable Length | 6m for capacity ≥ 5 ton, with aviation plug 3m for capacity < 5 ton, with aviation plug |
| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |
Feature
- 42CrMo Alloy Material: Column structure, strong resistance to machine fatigue, large load capacity, widely used in industries such as pharmaceuticals, metallurgy, automotive, railway, warehouse, and material handling equipment.
- High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
- Fine Workmanship: Advanced grinding technology, flat design, easy installation, smooth and precise construction for efficient setup.

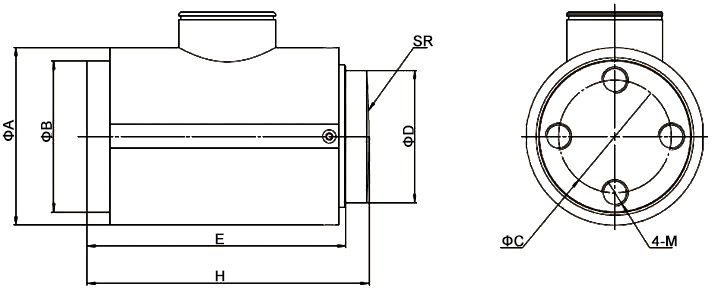

Dimension
| Capacity | Dimension (mm) | |||||||
| ΦA | ΦB | ΦC | ΦD | H | E | M | SR (radian) | |
| 15~30 ton | 86 | 73.5 | 56 | 40 | 140 | 129 | 10 | 200 |
| 40~60ton | 100 | 87 | 68 | 80 | 150 | 133 | 12 | 350 |
| 100 ton | 107 | 91 | 68 | 80 | 150 | 156 | 16 | 500 |
| 150~200 ton | 158 | 139 | 100 | 120 | 220 | 201 | 16 | 1000 |
Wiring Method
Tips: Load cell working principle
Load cell is actually a kind of device to transform the weight signal into the measurable electrical output signal. At present, the commenly used load cell is the resistance strain load cell, which utilizes the principle that the resistance modifies accordingly when the strain gauge deforms. Load cell is mainly constituted by four parts, which are respectively the elastic component, strain gauge, measuring circuit and transmission cable.
