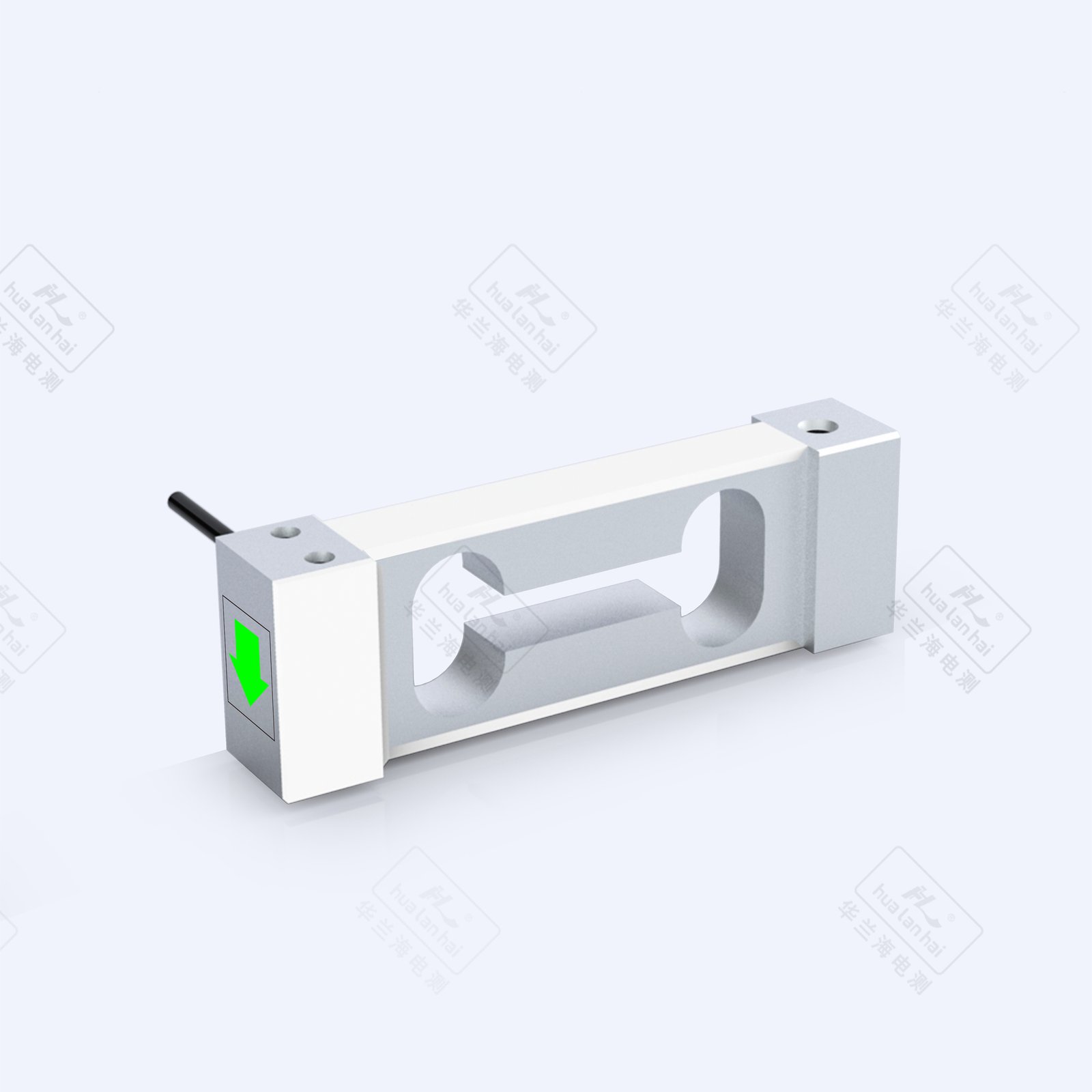

Parallel beam sensors mainly consist of an elastic body, strain gauges, and measurement circuits. The elastic body of parallel beam sensors uses a dual parallel beam structure, typically made from aluminum alloy or stainless steel. When the elastic body deforms under external force, the strain gauges attached to its surface also deform, causing changes in their resistance values. These changes in resistance values are converted into electrical signals through the measurement circuit and then transformed into readable weighing values via an analog-to-digital converter (ADC module). Parallel beam sensors, known for their simple structure, high precision, wide measurement range, and good stability, have become one of the most commonly used types of load sensors in industrial fields, especially suitable for high-precision measurement scenarios.
Our company’s CP series parallel beam load cells are high-performance single-point load cells with a measurement range of 3 kg to 750 kg, available in multiple size specifications. The product has obtained the China Measuring Instruments Type Approval Certificate (CPA) and achieves precision levels of C5/C6, with repeatability error ≤ ±0.01 F.S., meeting customers’ precision requirements across different weighing ranges. The operating temperature of the product is -30°C to +65°C, with an IP67 protection rating. It features automatic corner adjustment, compact design, and temperature compensation, significantly enhancing its accuracy and stability when used in industrial environments. Due to its excellent performance, the CP series load cells are widely used in various industrial and retail weighing applications such as electronic price scales, packaging scales, and process weighing control systems.
Parallel beam sensors mainly consist of an elastic body, strain gauges, and measurement circuits. The elastic body of parallel beam sensors uses a dual parallel beam structure, typically made from aluminum alloy or stainless steel. When the elastic body deforms under external force, the strain gauges attached to its surface also deform, causing changes in their resistance values. These changes in resistance values are converted into electrical signals through the measurement circuit and then transformed into readable weighing values via an analog-to-digital converter (ADC module). Parallel beam sensors, known for their simple structure, high precision, wide measurement range, and good stability, have become one of the most commonly used types of load sensors in industrial fields, especially suitable for high-precision measurement scenarios.
Our company’s CP series parallel beam load cells are high-performance single-point load cells with a measurement range of 3 kg to 750 kg, available in multiple size specifications. The product has obtained the China Measuring Instruments Type Approval Certificate (CPA) and achieves precision levels of C5/C6, with repeatability error ≤ ±0.01 F.S., meeting customers’ precision requirements across different weighing ranges. The operating temperature of the product is -30°C to +65°C, with an IP67 protection rating. It features automatic corner adjustment, compact design, and temperature compensation, significantly enhancing its accuracy and stability when used in industrial environments. Due to its excellent performance, the CP series load cells are widely used in various industrial and retail weighing applications such as electronic price scales, packaging scales, and process weighing control systems.
A cantilever beam load cell consists of an elastic body, strain gauges, and measurement circuitry. Cantilever beam sensors typically employ a single-end fixed configuration, where one end is rigidly fixed while the other end is freely suspended. Unlike parallel beam sensors, the strain gauges for cantilever beam sensors need to be affixed closer to the fixed end, whereas those for parallel beam sensors are attached to the top and bottom surfaces of the two beams. The working principle of load cells can be referenced from the introduction of CP series load cells.
Our company’s CBD series digital cantilever load cell is a digital sensor that comes with a high-precision analog-to-digital conversion module, allowing it to output digital signals rather than analog ones. Compared to analog sensors, digital sensors have the following advantages:
1. Digital signals have stronger interference resistance;
2. They support various compensation functions, such as temperature compensation and load offset compensation;
3. Communication speed is significantly improved compared to analog signals.
The CBD series digital load cells offer a wide measurement range from 220 kg to 4400 kg, with an accuracy class up to C6 level. Additionally, they feature IP68/IP69K protection ratings, providing better protective performance in industrial production environments.
KWT1B150 is a kind of normal structure weighing sensor, the deign of its tructure makes this weighing sensor easy to install and integrate.
The KWT1B133 has a measuring range of 5kg to 500kg, the accuracy level of the sensor can be customized, and the waterproof and dustproof level is as high (IP68). The sensor adopts four-wire or six-wire connection, which can be used for platform scales, belt scales and hopper scales, etc.
The KWT1B123 load cell is one of the typical shear beam load cells. It has extremely accurate measurement results, and has a certain self-protection ability. All stainless steel and hermetically sealed the compact size of KWT1B123 makes it the ideal choice for multi-head weighing equipment and low capacity vessel and so on.
KWT1B90 single axis force sensor is a small size cantilever beam sensor made of aluminum alloy, with a range of 50kg-300kg. The accuracy level of the sensor can be customized, with a waterproof and dustproof level of up to IP67. The sensor adopts a four-wire or six-wire connection method, which can be used in industrial testing and scientific research fields.
KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.
KWT1D42H is a large range column though-hole force sensor. The large load structure can pass through KWT1D42H, the max diameter of which is 12.7mm.
KWT1D33H is a miniature, thin washer weighing sensor, which is suitable for the applications requiring load structures to pass through the sensor. It has multiple strain gauges and a unique single srain guage design that reduces errors caused by off-axis loads. The structure has a very small deflection and suitable for the measurement of dynamic reponse.
KWT1D40 series is a compact compression force sensor, which can reliably measure the compression force in a limited space. Due to the special structural design, the sensor has a high natural frequency, which can adapt to the high-frequency loads.
KWT1L90 is a single axis force sensor with a force measurement direction parallel to the mounting surface. The entire body is made of alloy steel, with high strength and stiffness characteristics, to meet the use needs of special force measurement directions.
KWT1L60 is a bowl-shaped through-hole pressure sensor, which has been widey used in force measurement applications such as electric cylinder end caps. This product has fast response to force measurement, good stability, and can matach various range requirements.
KWT1L16 is a miniature high-performance S-deformation tension pressure sensor with strong applicability and suitable for various application scenarios. The overall height of the sensor is only 19 mm, which is suitable for use in narrow spaces and environments.
KWT1S55 is a small range and high-precision tensile and compressive force sensor. Its main body is designed with an aluminum alloy structure, and its top is equipped with a compressive loading head, which is convenient for customers to apply pressure to the heart.
KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.
The KWT1C35 is a large-capacity, compact design pull-and-press column sensor with a special mounting end face design that enables the sensor to meet the tensile-compression direction loading during use. Using 17-4PH as raw material, rated capacity of 20kN, with high durability and excellent accuracy.
The KWT1C25 is a tensile pressure sensor in a compact design. The special structural design makes the height of the sensor only 36 mm, which is an excellent choice for force measurement in a small space, and is very suitable for applications with a large measuring range and a small use space.
KWT1D52 is a tension-compression bowl-type load cell, suitable for high-speed response measurement. The sensor adopts built-in bending moment compensation, even in the process of using bending moment or lateral force , the test results can be obtained reliably. Since this is a sensor based on the strain principle, static and dynamic measurements are possible.
KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.
Popular Products
Parallel beam sensors mainly consist of an elastic body, strain gauges, and measurement circuits. The elastic body of parallel beam sensors uses a dual parallel beam structure, typically made from aluminum alloy or stainless steel. When the elastic body deforms under external force, the strain gauges attached to its surface also deform, causing changes in their resistance values. These changes in resistance values are converted into electrical signals through the measurement circuit and then transformed into readable weighing values via an analog-to-digital converter (ADC module). Parallel beam sensors, known for their simple structure, high precision, wide measurement range, and good stability, have become one of the most commonly used types of load sensors in industrial fields, especially suitable for high-precision measurement scenarios.
Our company’s CP series parallel beam load cells are high-performance single-point load cells with a measurement range of 3 kg to 750 kg, available in multiple size specifications. The product has obtained the China Measuring Instruments Type Approval Certificate (CPA) and achieves precision levels of C5/C6, with repeatability error ≤ ±0.01 F.S., meeting customers’ precision requirements across different weighing ranges. The operating temperature of the product is -30°C to +65°C, with an IP67 protection rating. It features automatic corner adjustment, compact design, and temperature compensation, significantly enhancing its accuracy and stability when used in industrial environments. Due to its excellent performance, the CP series load cells are widely used in various industrial and retail weighing applications such as electronic price scales, packaging scales, and process weighing control systems.
Parallel beam sensors mainly consist of an elastic body, strain gauges, and measurement circuits. The elastic body of parallel beam sensors uses a dual parallel beam structure, typically made from aluminum alloy or stainless steel. When the elastic body deforms under external force, the strain gauges attached to its surface also deform, causing changes in their resistance values. These changes in resistance values are converted into electrical signals through the measurement circuit and then transformed into readable weighing values via an analog-to-digital converter (ADC module). Parallel beam sensors, known for their simple structure, high precision, wide measurement range, and good stability, have become one of the most commonly used types of load sensors in industrial fields, especially suitable for high-precision measurement scenarios.
Our company’s CP series parallel beam load cells are high-performance single-point load cells with a measurement range of 3 kg to 750 kg, available in multiple size specifications. The product has obtained the China Measuring Instruments Type Approval Certificate (CPA) and achieves precision levels of C5/C6, with repeatability error ≤ ±0.01 F.S., meeting customers’ precision requirements across different weighing ranges. The operating temperature of the product is -30°C to +65°C, with an IP67 protection rating. It features automatic corner adjustment, compact design, and temperature compensation, significantly enhancing its accuracy and stability when used in industrial environments. Due to its excellent performance, the CP series load cells are widely used in various industrial and retail weighing applications such as electronic price scales, packaging scales, and process weighing control systems.
A cantilever beam load cell consists of an elastic body, strain gauges, and measurement circuitry. Cantilever beam sensors typically employ a single-end fixed configuration, where one end is rigidly fixed while the other end is freely suspended. Unlike parallel beam sensors, the strain gauges for cantilever beam sensors need to be affixed closer to the fixed end, whereas those for parallel beam sensors are attached to the top and bottom surfaces of the two beams. The working principle of load cells can be referenced from the introduction of CP series load cells.
Our company’s CBD series digital cantilever load cell is a digital sensor that comes with a high-precision analog-to-digital conversion module, allowing it to output digital signals rather than analog ones. Compared to analog sensors, digital sensors have the following advantages:
1. Digital signals have stronger interference resistance;
2. They support various compensation functions, such as temperature compensation and load offset compensation;
3. Communication speed is significantly improved compared to analog signals.
The CBD series digital load cells offer a wide measurement range from 220 kg to 4400 kg, with an accuracy class up to C6 level. Additionally, they feature IP68/IP69K protection ratings, providing better protective performance in industrial production environments.
KWT1B150 is a kind of normal structure weighing sensor, the deign of its tructure makes this weighing sensor easy to install and integrate.
