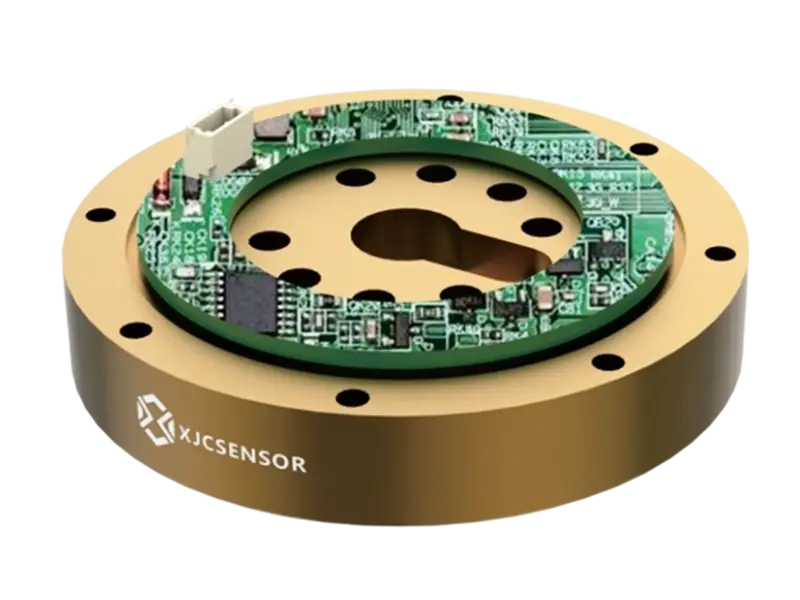

Xjcsensor / X-ST208-B / Joint Torque Sensor

Feature
  • Various communication methods are available.
  • High sampling frequency, quick response, strong anti-interference ability.
  • High precision with the principle of resistance strain type.
  • Good temperature characteristics with self-compensated strain gauge.
  • Small size, thin thickness, high torsional rigidity and strong overload protection capacity.
Add to Wishlist
Share it:
Technical Parameter
Capacity (Optional) 45N.m Material Stainless Steel
Nonlinearity ≤0.5% F.S. Output 0.5V-2.5V-4.5V

(-45N.m-0-45N.m)
Recommended excitation 5VDC Compensated temp range -10~40℃
Hysteresis ≤0.5% F.S. Operating temp range -20~80℃
Repeatability ≤0.5% F.S. Creep(30min) ≤0.2% F.S.
Sampling frequency ≥300Hz Safe load limit 200%F.S.
Crosstalk axial force 900N Temp effect on zero ≤0.5%F.S./10°℃
Crosstalk radial force 900N Ultimate load limit 300%F.S.
Crosstalk bending moment 22.5N.m Cross-talk error ≤1% F.S.
Torsional Stiffness 400KN.m/rad Pin assigment Pin1:GND Pin2:5V

Pin3:CH1 Pin4:NC
Dimension & Capacity

pic-3

Application

It is suitable for force value detection of industrial automation, automotive industry, bolt tightening technology, electric motors, and pumps.
