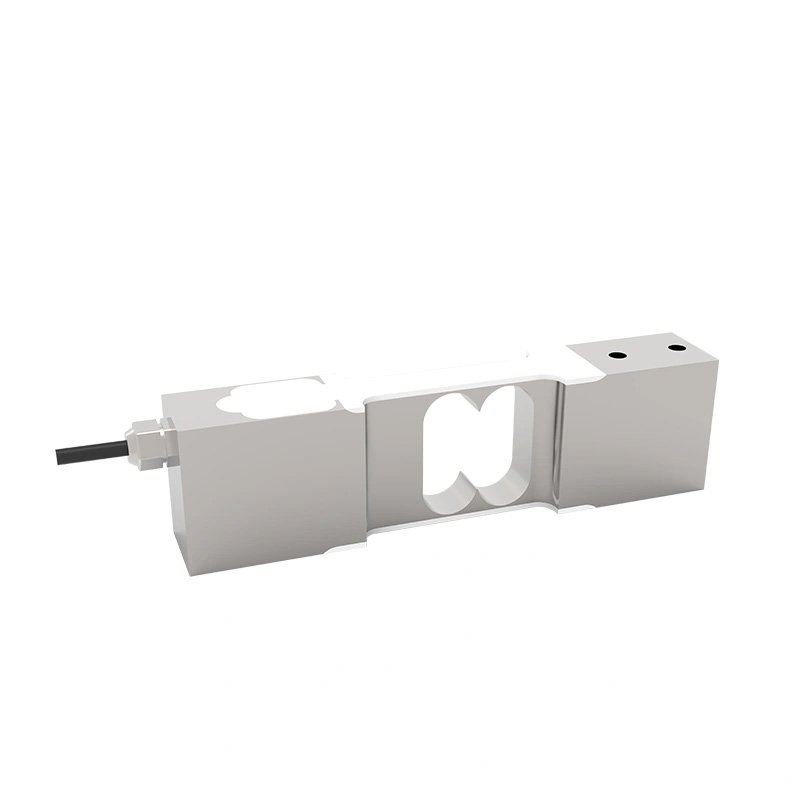

SL546 High Precision Industry Load Cell
 |
Product FeaturesSL546 load cell adopts cantilever structure design, pressure bearing, easy and flexible installation and use. It has good sealing and moisture-proof performance. It has high precision and high stability, small size, beautiful appearance, and high dynamic response frequency. Shock resistance, overload resistance, simple installation, save the difficulty of on-site installation work. Each sensor sends out a signal separately and is processed by a separate module. If multiple sensor group scales are used, there is no need to worry about the influence of partial load, thus providing the measurement accuracy of the overall weighing system. |
Technical Specifications
| Specification | Technical Indicators |
| Capacity | 3,6,7.5,15,20,30,50, 75,100,150,200kg |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep | ≤0.017%F.S. |
| Non-Linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.016%F.S. |
| Input Inpedance | 380±20Ω |
| Output Inpedance | 350±5Ω |
| Temp. effect on output | 0.05%F.S./10℃ |
| Temp. effect on zero | 0.05%F.S./10℃ |
| Insulation Inpendance | ≥5000MΩ/100V(DC) |
| Reconnended Excitation | 5~12V |
| Maximum Excitation | 15V |
| Conpensated Temp Range | -10~40℃ |
| Operating Temp Range | -20~50℃ |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | 3m |
| Material | Stainless steel/aluminum alloy |
Product Dimensions
Installation size
Load Direction
Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
