Models

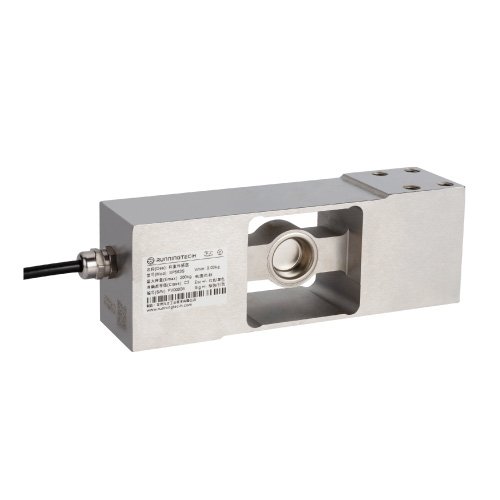

SP563S-100kg, SP563S-200kg, SP563S-300kg, SP563S-500kg, SP563S-750kg
Features
- 용량：100~750kg
- 재질 : stainless steel
- 타입 : Single Point
- 보호등급 : IP68 / IP69K
- 충격 및 기타 프로세스 계량 시스템에 대한 단일 로드 셀 대형 플랫폼 스케일에 적합
Dimensions
Specifications
Features
용량：20, 30, 50, 100, 300, 500kg
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68, IP69K
Features
용량：550kg, 1.1, 1.76, 2.2, 4.4t
재질 : high-quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Features
용량：500, 1000,2000kg
재질 : Alloy steel, stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67, IP68
용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t
재질 : Alloy steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/lP68
용량：10, 25, 40, 50, 75, 100, 200klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Capacity: 60–200 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP68 / IP69K
Suitable for stainless steel waterproof scales and process weighing control in the chemical, food, and pharmaceutical industries.
Features
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67/IP68
Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.
Features
용량：10, 20, 30, 50, 100kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Features
용량：10, 30, 50kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
용량：25, 40, 50, 75, 100klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
