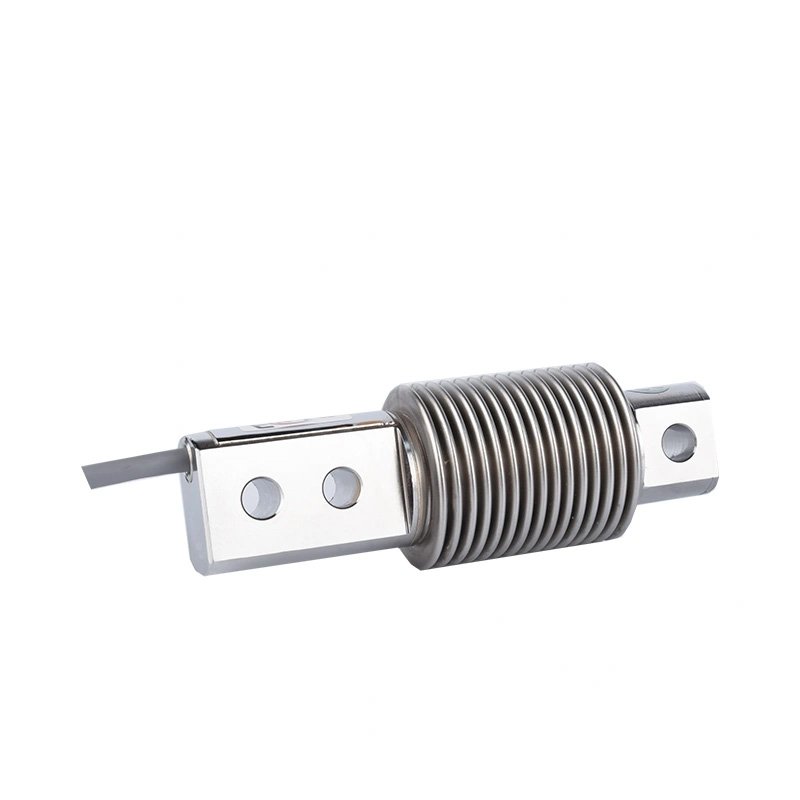

SL510 Welded Seal Bending Beam Load Cell
 |
Product FeaturesIt has good mechanical properties, such as high strength, good impact toughness, high fatigue strength, and good machining and heat treatment properties. Good elastic properties, high elastic limit, small creep, and anti-oxidation and corrosion resistance. |
Technical Specifications
| parameter | Technical Indicators |
| Nominal range | 5,10,20,50,100,200,
500kg |
| Output Sensitivity | 2.0±0.05mV/V |
| Zero output | ±0.02mV/V |
| Creep | ≤0.0166%F.S. |
| Nonlinear | ≤0.018%F.S. |
| Lag | ≤0.017%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input resistance | 380±5Ω |
| Output resistance | 350±5Ω |
| Temperature Sensitivity Drift | 0.008%F.S./10℃ |
| Zero Temperature Drift | 0.0125%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Excitation voltage | 5~15V |
| Maximum excitation voltage | 20V |
| Temperature compensation range | -10~40℃ |
| Operating Temperature Range | -30~70℃ |
| Safe Overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable Wire Size | φ5.4X3000mm |
| Product Weight | 0.5kg |
| Material | Stainless steel |
Product Dimensions
Installation size
Load Direction
Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
