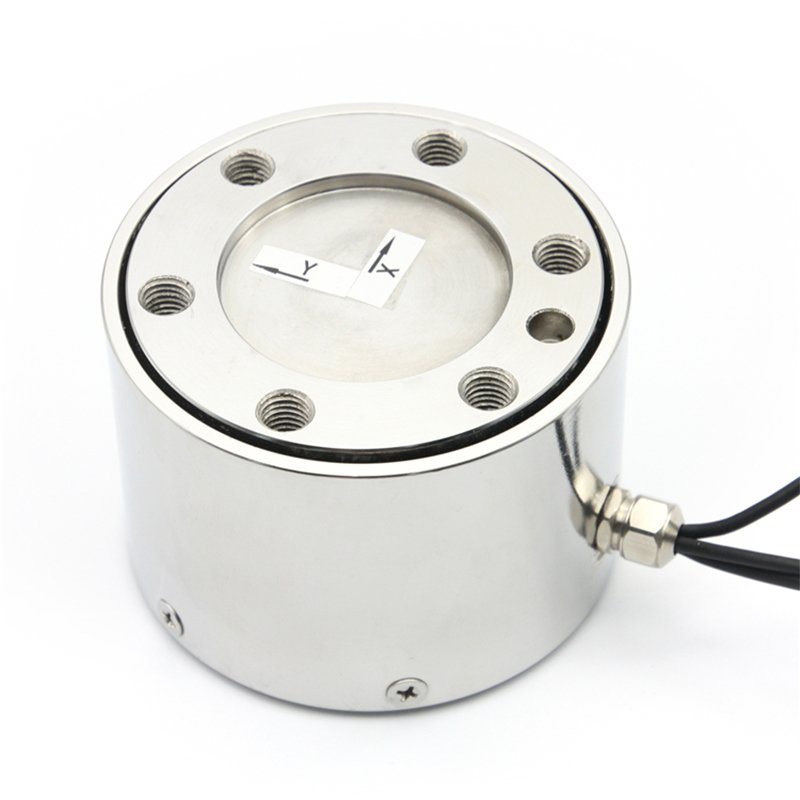

MT510 3 Axis Force Sensor
Product Description
Features And Uses
High precision, strong anti-biased load ability;
Easy to install, IP 66;
Customizable specifications;
Used for military grade measurement;
Mainly used for large aircraft assembly, automobile assembly and collision detection, precision engraving of machining center, precision detection of medical equipment;
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.
Mounting Dimension
Parameter List
| Rated Range | X: 10/25/50
Y: October 25th, 1950 Z: May 25, 100 |
Insulation Resistance | ≥ 5000mΩ/100VDC |
| Considerate | ≈ 1.0mV /V | Excitation Voltage | 5-10V |
| Zero Point Balance | ±2%F.S. | The Maximum Excitation Voltage | 15 volts |
| Nonlinearity | 0.2%F.S. | Temperature Compensation Range | -10~40℃ |
| Lag Error | 0.2%F.S. | Operating Temperature Range | -20~75℃ |
| Repeatability | 0.2%F.S. | Safe Load(E L) | 150%F.S. |
| Creep (30 Minutes) | 0.2%F.S. | Failure Load(E D) | 300%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.1%F.S./10℃ | Cable size | Φ6×3000 mm |
| Zero Drift Temperature Coefficient | 0.1%F.S./10℃ | Cloth | |
| Input Resistance | 780±20Ω | Unit Weight(G) | 1.6kg |
| Output Resistance | 700±10Ω | Protection | Ip66 |

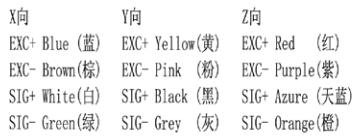

| Direction Of Force | Wiring Method |
 |
 |
