• Range: 0-5N.m
• Speed range: ≤4000rpm
• Nonlinear Accuracy 0.1% F.S.
• Repeatability Accuracy 0.03% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Dynamic torque sensor DYN-205 series
• Can be customized on request

• Range: 0-800N.m
• Speed range: ≤4000rpm
• Nonlinear Accuracy 0.1% F.S.
• Repeatability Accuracy 0.03% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product Name: Dynamic Torque Sensor DYN-206 Series
• Can be customized on request

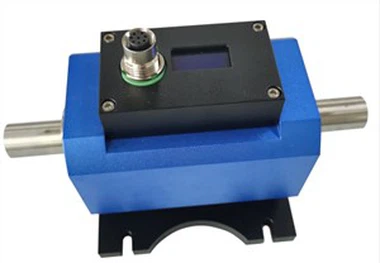

1、The small rotating torque sensor is used to measure the rotating torque in clockwise and counterclockwise directions.
2、The sensor is installed between the motor and the load through the coupling, the shell remains static during the measurement, and the shaft rotates with the motor shaft.
3、High precision,stable and reliable performance.
4、High speed and long time operation.
5、 Output positive and reverse torque signal.

1、The small rotating torque sensor is used to measure the rotating torque in clockwise and counterclockwise directions.
2、The sensor is installed between the motor and the load through the coupling, the shell remains static during the measurement, and the shaft rotates with the motor shaft.
3、High precision,stable and reliable performance.
4、High speed and long time operation.
5、 Output positive and reverse torque signal.

• Range: 0-5N.m
• Speed range: ≤4000rpm
• Nonlinear Accuracy 0.1% F.S.
• Repeatability 0.5% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Dynamic torque sensor DYN-204 series
• Can be customized on request

Highspeed Rotating Torque Transducer In-line Torque Sensor 5Nm Model: DTS-03D Other name: In line Torque transducer  Features and Applications Small torque sensor is a new product developed by our company on the basis of the special technology of strain bridge, which is suitable for all kinds of torque measurement occasions with small volume and high speed. The product output 5~15kHz frequency signal or 4~20mA current signal, suitable for long-distance transmission. This product is small in size, easy to use and install, strong signal anti-interference ability The product is non-contact type, no wear, the highest speed of 8000-18000 RPM, suitable for long-term high-speed rotation conditions

• Capacity: ±10000N.m
• Non-linearity 0.5% F.S.
• Repeatability 0.2% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

1, Applications: DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in  1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment.  1.2 Fan, water pump, torque wrench  1.3 Train, auto mobile, tractor, airplane, ship, mining machine  1.4 Water recycling system  1.5 Viscometer  1.6 Process industry

1、The small rotating torque sensor is used to measure the rotating torque in clockwise and counterclockwise directions.
2、The sensor is installed between the motor and the load through the coupling, the shell remains static during the measurement, and the shaft rotates with the motor shaft.
3、High precision,stable and reliable performance.
4、High speed and long time operation.
5、 Output positive and reverse torque signal.

1, Applications: DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in  1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment.  1.2 Fan, water pump, torque wrench  1.3 Train, auto mobile, tractor, airplane, ship, mining machine  1.4 Water recycling system  1.5 Viscometer  1.6 Process industry

• Range: ±300000N.m
• Speed range: ≤15000rpm
• Nonlinear Accuracy 0.5% F.S.
• Repeatability 0.2% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Rotary torque sensor DYN-201 series
• Can be customized on request

• Range: 0-500N.m
• Speed range: 0-4000rpm
• Nonlinear Accuracy 0.5% F.S.
• Repeatability 0.2% F.S.
• Material: Alloy Steel Nickel Plated
• Force measurement direction: rotational force
• Product Name: Dynamic Torque Sensor DYN-201D Series
• Can be customized on request
