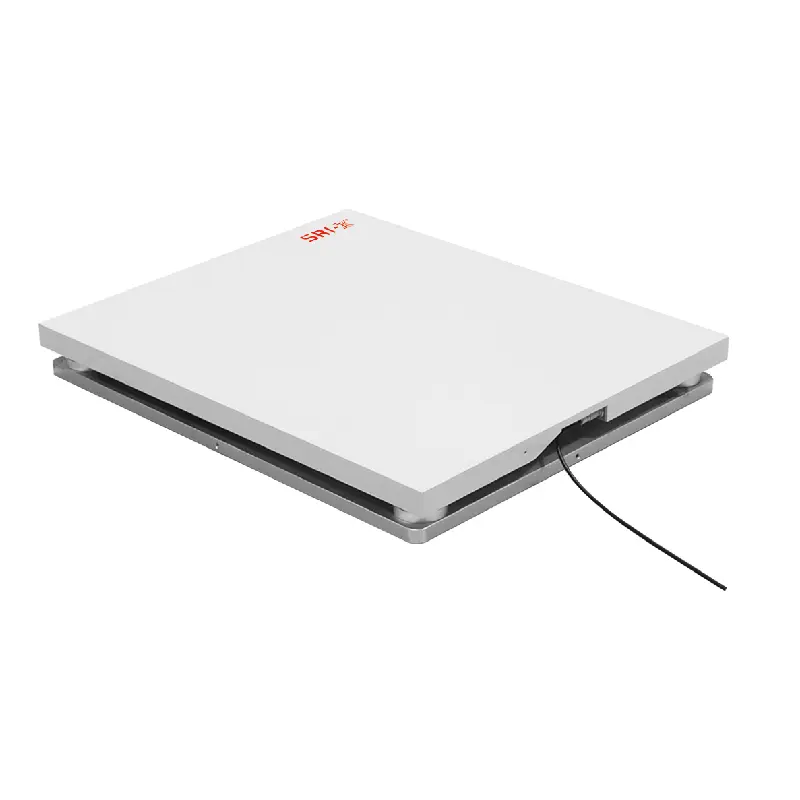

M3612X series is a high-performance 6 axis force platform for motion analysis. Applying the same advanced strain gauge technology utilized in our 6 axis loadcells, SRI force platforms provide accurate measurements in all forces and moments from the test subject simultaneously.
XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor FA704 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704 can be used to measure 3 axis force, its X axis, Y axis and Z axis force range are all the same 50N,100N,200N,500N,1000N,2000N and 5000N capacity, its Rated output is 1.0mV/V, its Zero Balance range is ±2%F.S..
Fibos force sensor multiple range load cell FA704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 5000N for all three axes. The three-dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi-axis load cell allows it to be used in many situations
Fx Fy Fz 200N Mx My Mz 8Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82B is a model from FARS82 which belongs to our brand FIBOS FARS-Series, FARS82B can be used to measure six-axis force Fx,Fy,Fz all are same 200N, Mx,My,Mz are same 8Nm, its Diameter is 82mm and Height is 31.5mm, its weight is 0.28kg.
XYZ 10-50kg3 Stainless Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis,Z axis force range are the same 10kg,20kg,30kg and 50kg capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S., its Hysteresis ≤0.2%F.S..
Fx Fy 300N Fz 600N Mx My Mz 24Nm Hard Aluminum Alloy Six Axis Force Sensor FARS94C is a model of our brand FIBOS FARS-Series, it belongs to FARS94 which belongs to Six Axis Force Sensor category, FARS94C can be used to measure six-axis force, its Fx,Fy force are both 300N capacity, its Fz is 600N, and its Mx,My and Mz force are all 24N.m.
0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensors FARS75A is a model of our brand FIBOS FARS-Series, it belongs to 6-axis force sensor FARS75. FARS75A can be used to measure six-axis force Fx,Fy and Fz are 50N, Mx,My and Mz are all 2Nm, its Diameter is 75mm and Height is 31.5mm, its weight is 0.26kg.
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS46A is a model of FARS46 which belongs to our brand FIBOS FARS-Series. FARS46A can measure six-axis load Fx,Fy and Fz are 50N, Mx,My and Mz are the same 2Nm, its Diameter is 46mm and Height is 19.4mm, its weight is 0.06kg.
Fx Fy Fz Each 200N Mx My Mz Each 6.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS46C belongs to FARS46, its Diameter is 46mm and Height is 19.4mm, its weight is 0.07kg, FARS46C can be used to measure six-axis force Fx,Fy and Fz are all 200N, Mx,My and Mz are the same 6.5Nm, its shape is nearly the same with mother model FARS46.
XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA730 can be used to measure 3 axis force, its X axis,Y axis and Z axis force range are all the same 10kg,50kg,100kg and 500kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all the same ≤0.02%F.S. or can be customized, its Hysteresis ≤0.02%F.S. or can also be customized.
Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.
XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704D belongs to FA704, it can be used to measure three-axis force, its X axis,Y axis and Z axis force are the same 5t capacity, its Rated output range is ≈1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
