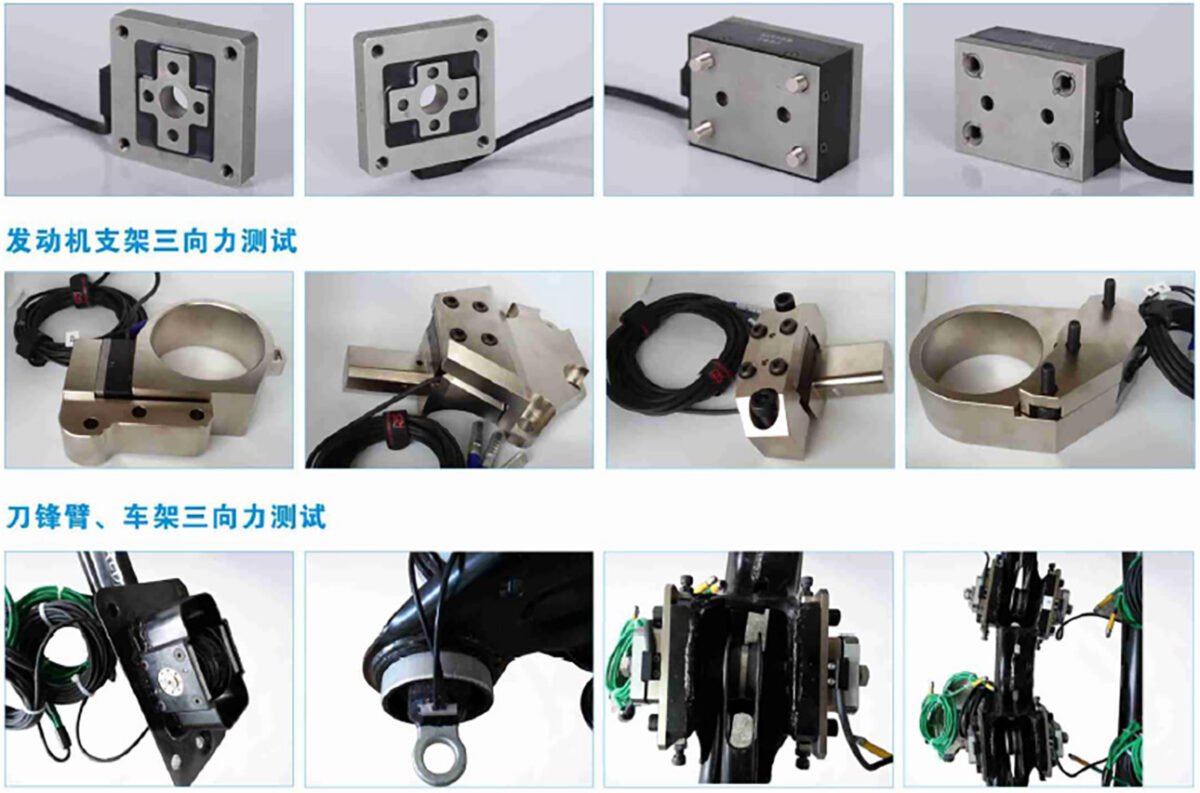

Fibos force sensor multiple range load cell FA704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 5000N for all three axes. The three-dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi-axis load cell allows it to be used in many situations
XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA728 can be used to measure 3-axis force, its X axis,Y axis,Z axis force ranges the same from 50kg up to 300kg capacity, its Rated output range is 1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.
Fx Fy 400N Fz 500N Mx My Mz 12Nm IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS75C is a model of our brand FIBOS FARS-Series, it belongs to FARS75. FARS75C can be used to measure 6 axis force Fx and Fy are 400N, Fz is 500N, Mx,My and Mz are 12Nm, its Diameter is 75mm and Height is 33.5mm, its weight is 0.36kg.
Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36A is a model from FARS36 which is in six-axis force sensor category. FARS36A can measure 6-axis force Fx,Fy and Fz are 30N, Mx,My and Mz are 1.5Nm, its Diameter is 36mm and Height is 20mm, its weight is 0.04kg.
XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O belongs to FA731, 3 Axis Force Sensor FA731O can be used to measure three-axis force, its X axis,Y axis,Z axis force range all are same 0.5kN,1kN,3kN,5kN,10kN,30kN or customized capacity, its Creep(30min) and Repeatability both ≤0.08%F.S. or can be customized.
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B is a model of our brand FIBOS FARS-Series, it belongs to FARS36. FARS36B can measure 6 axis force Fx,Fy and Fz are the same 50N, Mx,My and Mz are 2Nm, its Diameter is 30mm and Height is 20mm, its weight is 0.05kg.
XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704D belongs to FA704, it can be used to measure three-axis force, its X axis,Y axis and Z axis force are the same 5t capacity, its Rated output range is ≈1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS62A is a model of Six Axis Force Sensor, it belongs to FARS62 in our brand FIBOS FARS-Series, it can be got to measure multiple axis load Fx,Fy,Fz are 50N, Mx,My,Mz are 2Nm, its weight is 0.12kg, its shape makes it also look like FARS62.
Fx Fy 400N Fz 500N Mx My Mz 12Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82C is a model of Six Axis Force Sensor, it belongs to FARS82 in our brand FIBOS FARS-Series, Six Axis Force Sensor FARS82C can measure multi-axis force Fx,Fy are both 400N, Fz is 500N, Mx,My,Mz are all the same 12Nm, its Diameter is 82mm and Height is 33.5mm, its weight is 0.32kg.
XYZ 10-50kg3 Stainless Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis,Z axis force range are the same 10kg,20kg,30kg and 50kg capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S., its Hysteresis ≤0.2%F.S..
Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.
