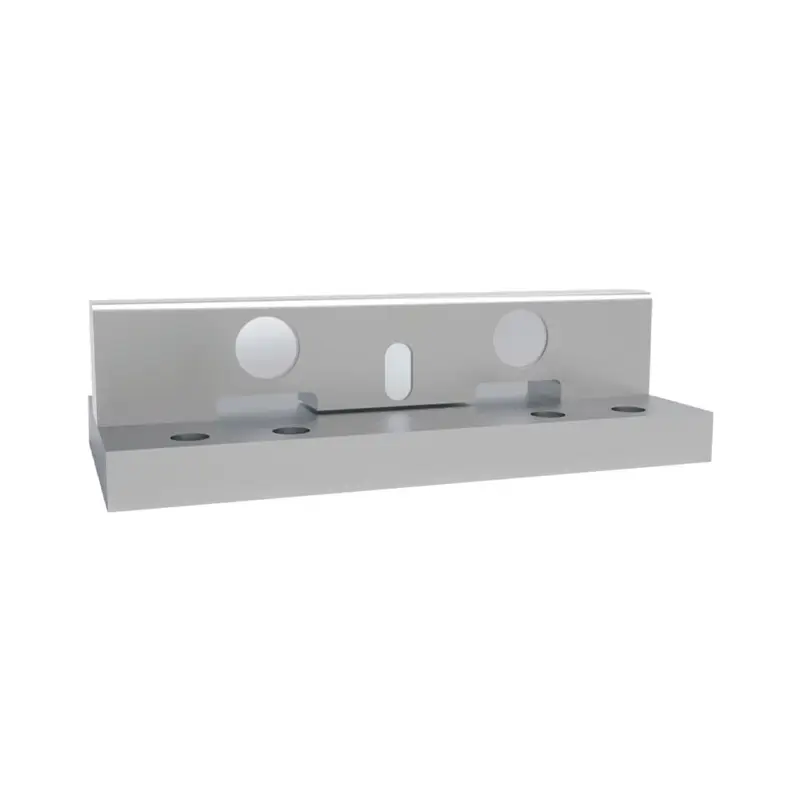

Truck Scale Railway Scales Alloy Steel Double Ended shear beam load cell RWS01 developed through independent research and development not only have powerful functions, but also solve the pain points that have plagued the industry for a long time. The products have a wide range of applications in Force Sensors & Load Cells.
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)

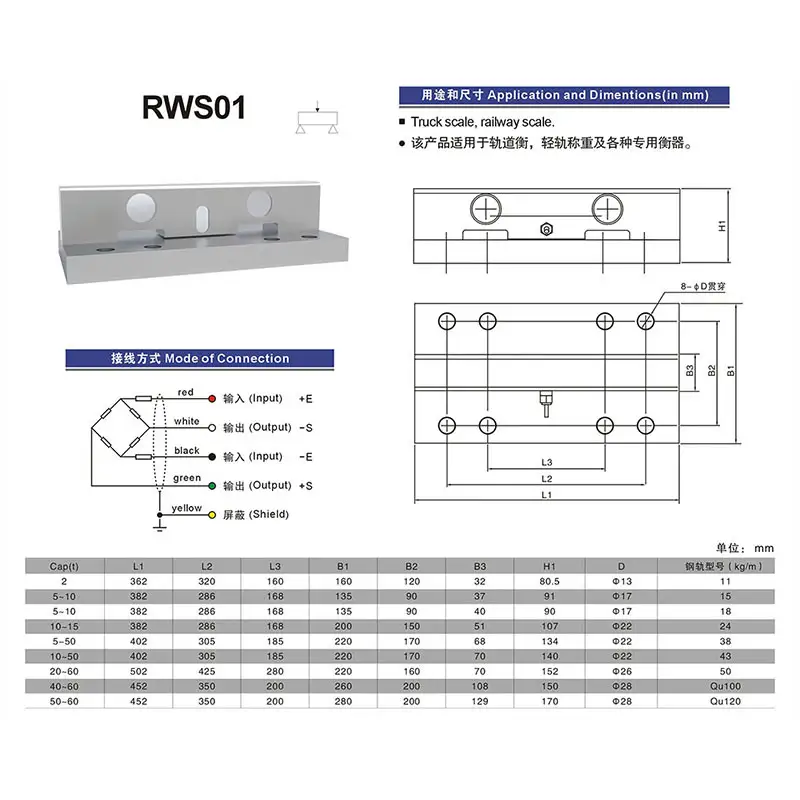

Technical Parameter
| Rated Load |
T
|
4.5~56.5 T |
|
Sensitivity
|
mV/V |
2.0000±0.002
|
| Total Error | %F.S |
±0.02
|
| Creep(30minutes) | %F.S |
±0.02
|
| Recommended Excitation Voltage | V |
5 ~18 (AC or DC)
|
| Maximum Excitation Voltage |
V
|
24 (AC or DC)
|
| Zero Balance | %F.S | ±1 |
| Input Impedance | Ω |
775±10
|
| Output Impedance | Ω |
700±5
|
| Insulation Impedance | MΩ | ≥5000 |
| Safe Overload | %F.S | 150 |
| Ultimate Overload | %F.S |
200
|
| Operating Temperature Range | ℃ |
(-30~+70)
|
| Compensated Temperature Range |
℃
|
(-20~+60) |
| Temperature Effect On Load | ℃ |
±0.02%F.S/10
|
| Temperature Effect On Zero | ℃ | ±0.02%F.S/10 |
| Construction | Alloy steel | |
| Protection Class | IP67&IP68 | |
| Citation | GB/T7551-2008/OIML R60 | |
| Mode of Connection |
Input+E:Red Input-E:Black Output+S:Green Output-S:White
|
