Models

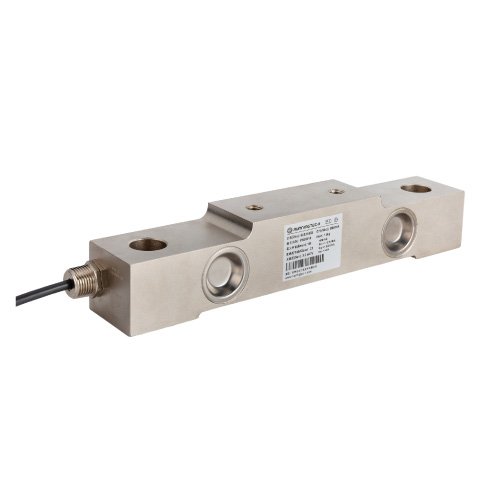

DB510A-15t
Features
- 용량：15t
- 재질 : Alloy steel
- 타입 : Double-ended Shear Beam
- 보호등급 : IP68
- 차량 탑재형 무게 측정 시스템 및 기타 전자식 무게 측정 장치에 적합
Dimensions
Specifications
Features
용량：1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel, stainless steel optional.
타입 : Single-Ended Beam
보호등급 : IP68
Capacity: 100–750 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for platform scales with single or dual load cell structures.
Capacity: 100–500 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for price computing scales, bench scales, and other electronic weighing devices.
Capacity: 300 kg–2 t
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for heavy-duty platform scales with a single load cell structure.
용량：5, 10, 20, 50, 100kN
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：10, 25, 40, 50, 75, 100, 200klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：10, 25, 30, 50, 75, 100, 150, 250klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：15t
재질 : Alcy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.
Features
용량：60, 100, 200, 300kg
재질 : Aluminum
타입 :Single Point
보호등급 : IP66
