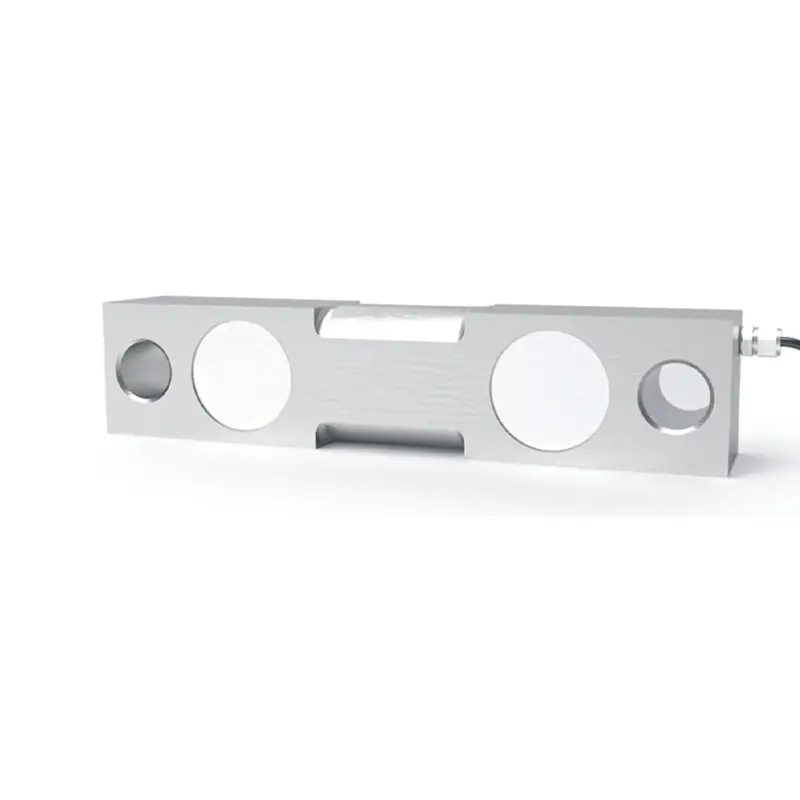

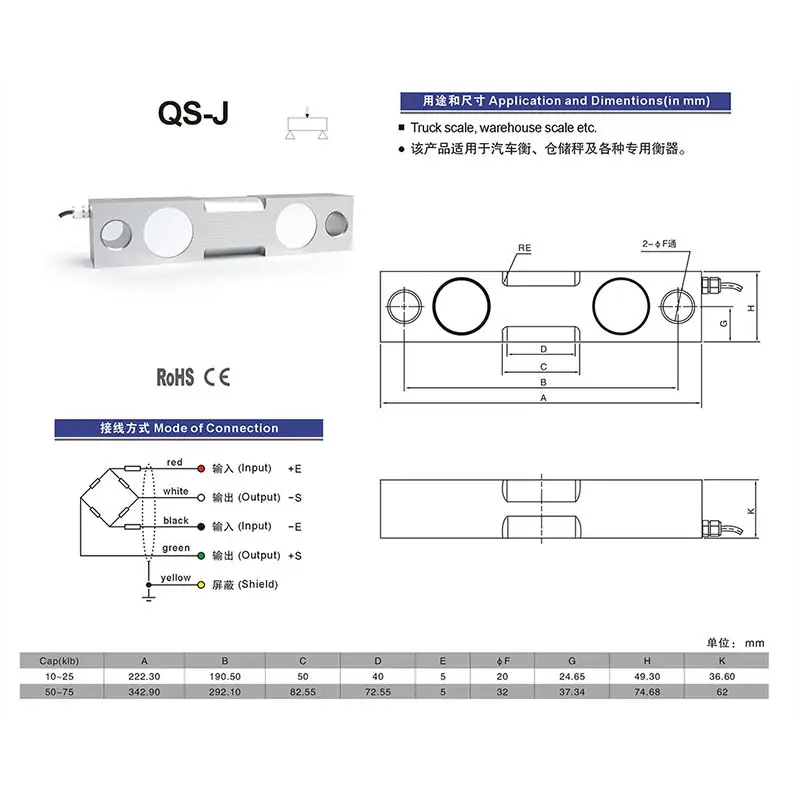

| Model Number: | QS-J | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | santwell |
| Usage: | truck scale | Theory: | resistan |
| Output: | Resistance strain | Description: | Double ended shear beam load cell |
| Rated Load: | 10t-30t | Sensitivity: | 2.0000±0.002mv/v |
| Total Error: | ±0.02%F.S | Creep(30 minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | UItimate Overload: | 200%F.S |
We have been continuously improving technical capabilities in manufacturing the QS-J Weight Bridge Cup Ball Double Ended Shear Beam Sensor Truck Scale Load Cell since established. The product is appropriate to different uses in Force Sensors & Load Cells.
Specification : 10T, 20T, 30T
shipping: Support Sea freight · Land freight<
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
Product description:
DB510A is a low-profile double ended shear beam load cells is designed for industrial vehicles and agricultural trailer weighing system with high accuracy, Some high duty truck’s overload controlling is to ensure safe operation. The DB510A provides a very low profile design which allows for a wide range of installation options for on board vehicle weighing applications, Generally, the load cells are mounted between truck base chassis and upper frame, the lower, the more safer.
Main Features:
• Material: Alloy steel
• Rated Capacities: 15t
• IP Rating: IP68
• Suitable for onboard vehicle weighing system and other electronic weighing devices
• High precision, high reliability
Category: Double shear beam
Ningbo Santwell Import & Export Co., Ltd has a number of elite teams in management, design, R&D, and production. Our product can be tailored to suit you perfectly. Under the leadership of our company’s board of directors, Ningbo Santwell Import & Export Co., Ltd have constantly upgraded our technologies and introduced high-end machines to continuously drive the market trend and improve product quality so as to satisfy every customer. Our aim is to become one of the most trustworthy enterprises in the market.
| Model Number: | QS-KX | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | santwell |
| Usage: | truck scale | Theory: | resistan |
| Output: | Resistance strain | Description: | Double ended shear beam load cell |
| Rated Load: | 10t-30t | Sensitivity: | 2.0000±0.002mv/v |
| Total Error: | ±0.02%F.S | Creep(30 minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | UItimate Overload: | 200%F.S |
Reasonable structure, easy to use and install.It is suitable for the measurement of vehicle-specific scales, crane scales, vehicle wheels and axial forces.
Product description:
DB916A is a double ended shear beam, both ends loaded, center supported via self-aligning column structure, so that the force can be applied properly. This load cell is suitable for a wide range of truck scales, rail scales and process weighing equipment of tank, bin and hopper scale, etc. It is bolted at both ends.. Fully alloy steel construct, hermetically sealed, which ensure high seals performance of waterproof.
Main Features:
• Material: Alloy steel
• Rated Capacities: 2.5klb~100klb
• IP Rating: IP68
• Suitable for truck scale, heavy duty hopper scale and other electronic weighing devices.
• High precision by NTEP III L 10000, high reliability.
Category: Double shear beam
After years of painstaking research, Ningbo Santwell Import & Export Co., Ltd’s technicians have successfully developed QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell. The team uses the most advanced production equipment and independent research and development technology to minimize QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell development cycle and ensure the high quality and strong reliability of the product. Santwell is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.
| Model Number: | QS-TL | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | Truck scale, railway scale, blending scale | Theory: | resistan |
| Output: | Resistance strain | Description: | double ended shear beam |
| Rated Load: | 10t 20t 30t 40t | Sensitivity: | 2.0000±0.002mv/v |
| Total Error: | ±0.02%F.S | Creep(30 minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V-18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | ±150%F.S | UItimate Overload: | ±200%F.S |
Having been through countless days and nights,Ningbo Santwell Import & Export Co., Ltd has successfully developed Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell. It is bound to catch people’s eyeballs in various fields. After Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Ningbo Santwell Import & Export Co., Ltd always adhere to the principle of ‘creating values for customers and bringing benefits to stakeholders’. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.
| Model Number: | QS | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | SantWell |
| Usage: | Truck scale, railway scale, blending scale | Theory: | resistan |
| Output: | Resistance strain | Description: | Double ended shear beam |
| Rated Load: | 30t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | QS-N | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | SantWell |
| Usage: | Truck scale, railway scale, blending scale | Theory: | resistan |
| Output: | Resistance strain | Description: | double ended shear beam |
| Rated Load: | 10t 20t 30t 40t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
Product description：
DB520A is a low-profile double ended shear beam load cells, which is designed for industrial vehicles and agricultural trailer high precision weighing system, Some high duty truck’s overload controlling is to ensure safe operation. The DB520A provides a very low-profile design which allows for a wide range of installation options for onboard vehicle weighing applications, Generally, the load cells are mounted between truck base chassis and upper frame, the lower profile, the more safer.
Main Features:
• Material: Alloy steel
• Rated Capacities: 15t
• IP Rating: IP68
• Suitable for onboard vehicle weighing system and other electronic weighing devices
• High precision, high reliability
Category: Double shear beam
| Model Number: | QS-TL | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | Truck scale, railway scale, blending scale | Theory: | resistan |
| Output: | Resistance strain | Description: | double ended shear beam |
| Rated Load: | 10t 20t 30t 40t | Sensitivity: | 2.0000±0.002mv/v |
| Total Error: | ±0.02%F.S | Creep(30 minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V-18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | ±150%F.S | UItimate Overload: | ±200%F.S |
The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t. The load cell has high accuracy and high stability, widely used in elevator industry.
Features:
Nickel plated alloy steel
In this era, it is necessary for any enterprise including Ningbo Santwell Import & Export Co., Ltd to improve our R&D strength and develop new products on a regular basis. QS-X 10 20 30 T Specialized Customized Production Alloy Steel Weighbridge 10 Ton Load Cell has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Ningbo Santwell Import & Export Co., Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Rated Load |
T
|
10/20/30 |
|
Sensitivity
|
mV/V |
2.0000±0.002
|
| Total Error | %F.S |
±0.02
|
| Creep(30minutes) | %F.S |
±0.02
|
| Recommended Excitation Voltage |
V
|
5 ~18 (AC or DC)
|
| Maximum Excitation Voltage |
V
|
24 (AC or DC)
|
| Zero Balance | %F.S | ±1 |
| Input Impedance | Ω |
775±10
|
| Output Impedance | Ω |
700±5
|
| Insulation Impedance | MΩ | ≥5000 |
| Safe Overload | %F.S | 150 |
| Ultimate Overload | %F.S |
200
|
| Operating Temperature Range | ℃ |
(-30~+70)
|
| Compensated Temperature Range |
℃
|
(-20~+60) |
| Temperature Effect On Load | ℃ |
±0.02%F.S/10
|
| Temperature Effect On Zero | ℃ | ±0.02%F.S/10 |
| Construction | Alloy steel | |
| Protection Class | IP67&IP68 | |
| Citation | GB/T7551-2008/OIML R60 | |
| Mode of Connection |
Input+E:Red Input-E:Black Output+S:Green Output-S:White
|
Used for measuring and testing the bearing force.
