SAINTBOND / LCT308 Torque Transducer Torque Sensors Or Transducers Reaction Torque Sensors

Add to Wishlist
Share it:

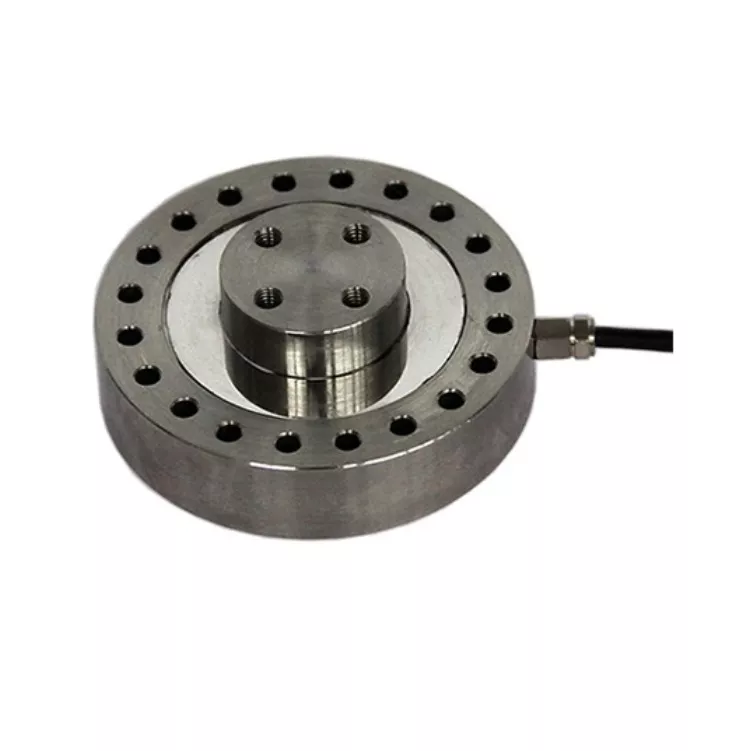

LCT308 Torque Transducer Torque Sensors Or Transducers Reaction Torque Sensors

Product Description


Product Description:

◎Static torque sensor, small volume, made of stainless steel.

◎It has the characteristics of high precision, good stability, strong anti-interference ability and convenient installation.

◎Applicable to static and discontinuous rotation torque measurement.

◎It is suitable for connection with disks, joint shaft connection of robots, and measurement in the field of drilling rig and industrial automation.

Dimension:

◎The overall dimensions can be designed and customized according to customer requirements.



Technical Parameter:

Capacity 5～200(N.m) Sensitivity Temp. Drift ±0.05%F.S/10℃
Zero Balance 1.5±0.1mV/V Operating Temp. Range 385Ω±35Ω
Rated Output 0.05%F.S Input Impedance 350Ω±3Ω
Nonlinearity ±0.5%F.S/30min Output Impedance ≥2000MΩ
Hysteresis ±0.5%F.S Insulation Resistance 5～10VDC
Repeatability ±0.5%F.S Safe Overload -30～+70℃
Creep (30 Minutes) ±0.5%F.S Supply bridge voltage 120%F.S
Zero Temp. Drift: ±0.05%F.S/10℃ Material Stainless Steel



Product name LCT308 Torque Transducer Torque Sensors Or Transducers Reaction Torque Sensors
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
