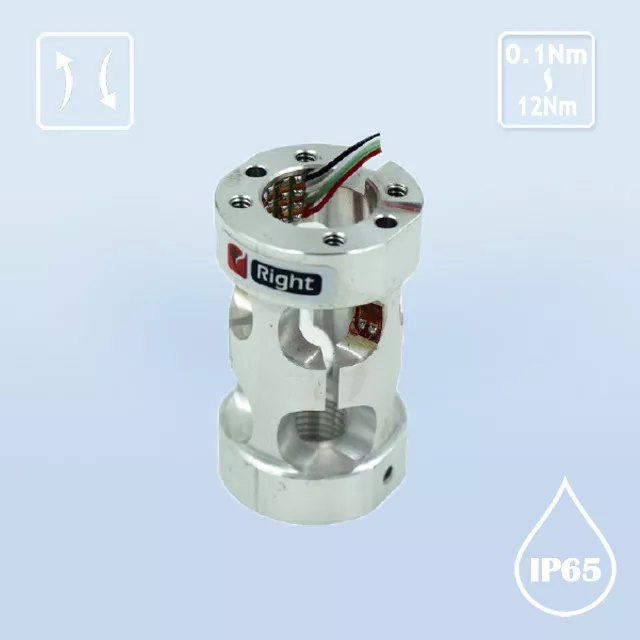

T903S Static Torque Force Sensor
Dimension
Parameters
Features and Applications
Static torque sensor
Compact structure, easy to install
Protection level: IP 65
For static, discontinuous rotation torque measurement
Load Direction
Wiring Code
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Applicable to measure and control of the static, non-continuous rotation torque force value
Product description:
Capacity ：0-10N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP65.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
- Range: 0~5000N m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
Suitable for static and discontinuous rotation torque measurement;
Material: Aluminum alloy
Exterior: Compact structure
Widely used for torque value measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc .; Compact structure for easy installation;
Material: Alloy steel
Features: Strong bending moment Long frequency life
The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications.
Features:
Capacity 1Nm-200Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Product description:
Capacity ：5-50~5000N.m
Defend grade: IP67.
Type: torque type
Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available
