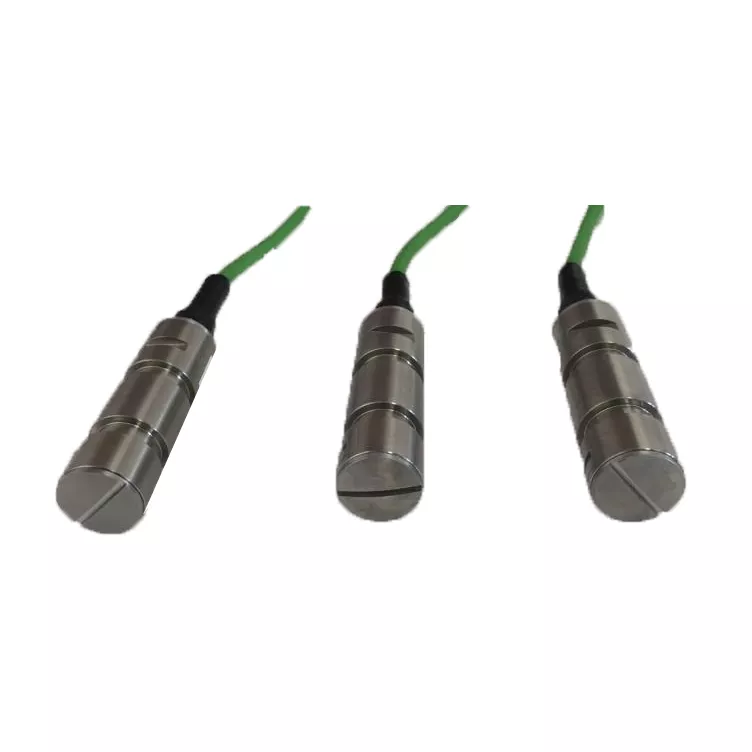

LC787 Wireless Shaft Load Cell Shackles Loading Pin Fitness

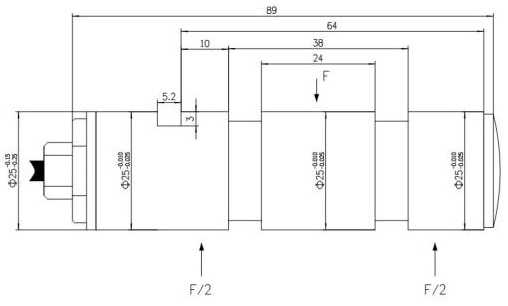

Dimensions：Unit:mm
Technical Parameter:
Note:load cells are available with optional 0~5Vdc to 0~10Vdc or 4 mA to 20 mA output.
High-precision weighing sensor, stainless steel material, electronic weighing system
● High precision weighing sensor
● Stainless steel material
● Electronic weighing system
The ZMHBZB is load cell pin widely used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety test applications. The 17-4PH construction enables load cell achieve IP68 protection class. The capacity and dimension can be designed based on customer’s requirements. The ZMHBZB has very good accuracy and long-term stability.
Features:
Capacity 50KN
High stability
Stainless steel construction
Crane, hoist and lifting applications
Optional features:
Customizable dimensions
High-precision weighing sensor, stainless steel material, electronic weighing system
● High precision weighing sensor
● Stainless steel material
● Electronic weighing system
Axle pin sensor, alloy steel material, tensile and compressive measurement, electronic weighing system
● Axle Pin Sensor
● Alloy Steel Material
● Tension and Compression Measurement
● Electronic Weighing System
The structure of the shear pin type load cell is simple and the installation is convenient. This load cell for sale is suitable for port and terminal cargo measurement and safety inspection of hoist and lifting equipment.
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
