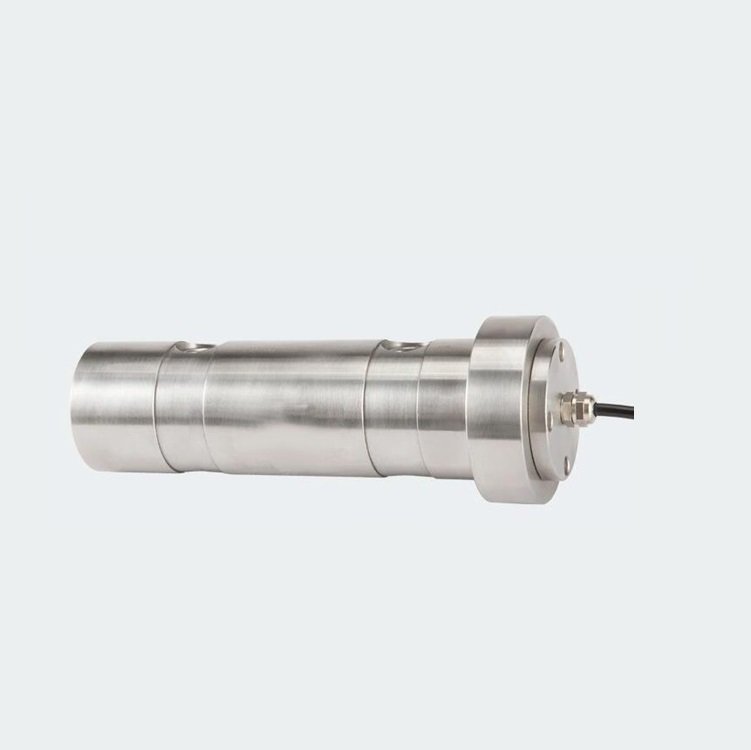

LC733 Precision Shear Pin Load Cell in Crane Shear Pin Load Cell
Dimension: in mm
Technical Parameter:
| Model Number: | TBA | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated output: | 3t,5t | Sensitivity: | 1.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V (AC o r DC) | Maximum Excitation Voltage: | 24V (AC or DC) |
| Zero Balance: | ±1%F.S | Safe Overload: | 150%F.S |
| Ultimate Overload: | 250%F.S | Working temperature: | (-30~+70)℃ |
The ZMHBZB is load cell pin widely used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety test applications. The 17-4PH construction enables load cell achieve IP68 protection class. The capacity and dimension can be designed based on customer’s requirements. The ZMHBZB has very good accuracy and long-term stability.
Features:
Capacity 50KN
High stability
Stainless steel construction
Crane, hoist and lifting applications
Optional features:
Customizable dimensions
| Model Number: | TBB | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Rated Load: | 3t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
The ZMHBZ is a kind of load pin widely used in weighing industrial. Zhimin offers custom solutions which help you design your unique load cell application. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 1t-5t
Shaft pin
Cost-effective
Nickel plated alloy steel
Optional features:
Optional output(4-20mA, 0-5V)
Axle pin sensor, alloy steel material, tensile and compressive measurement, electronic weighing system
● Axle Pin Sensor
● Alloy Steel Material
● Tension and Compression Measurement
● Electronic Weighing System
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
