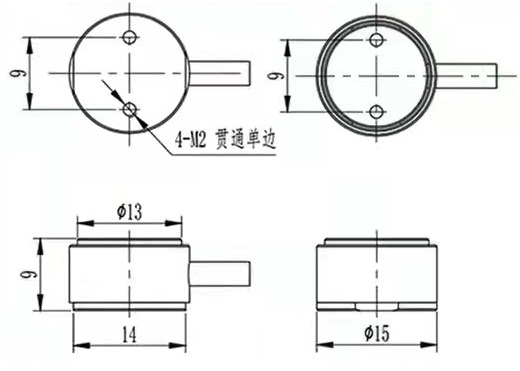

Dimension Unit:mm:
Description:

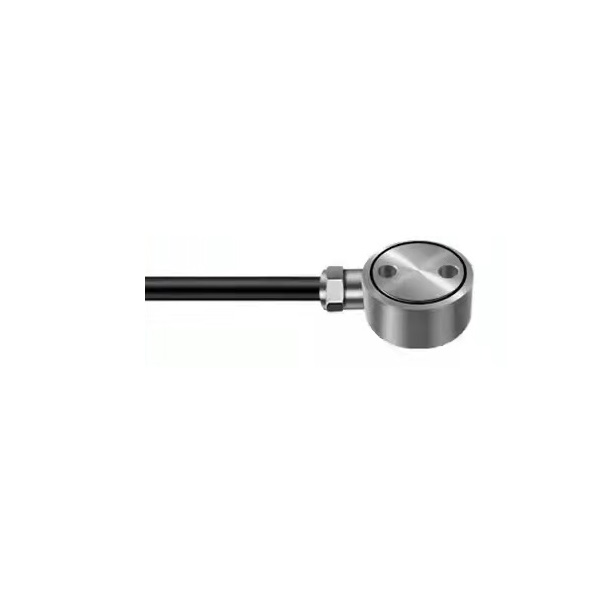

High quality stainless steel, small size, compact structure, high measuring accuracy, suitable for harsh environment, narrow space measuring force weighing place.
Technical Data:
Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.
이 센서는 고급 합금강으로 제작되었으며, 안정성이 뛰어나고 간섭에 강합니다. 공간 제약이 있는 환경에서도 설치가 가능하고, 다양한 산업 자동화 및 검사 분야에 적합합니다.
1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.
2.Simple to install, easy to use.
3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.
The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.
Nickel plated alloy steel
It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.
Material: stainless steel
Size: Low height, Plane loading
Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.
1.Made of stainless steel;
2. Suitable for proportioning control system, detecting equipment and other weighing devices.
KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.
This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.
SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.
The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.
