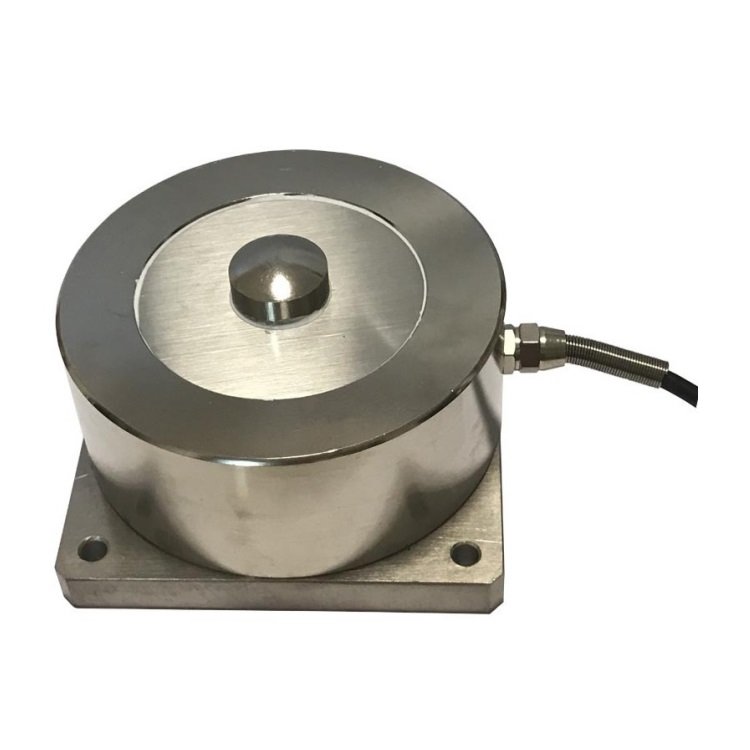

LC553 Flat Disc Design Load Cell Compression Low Profile Load Cell

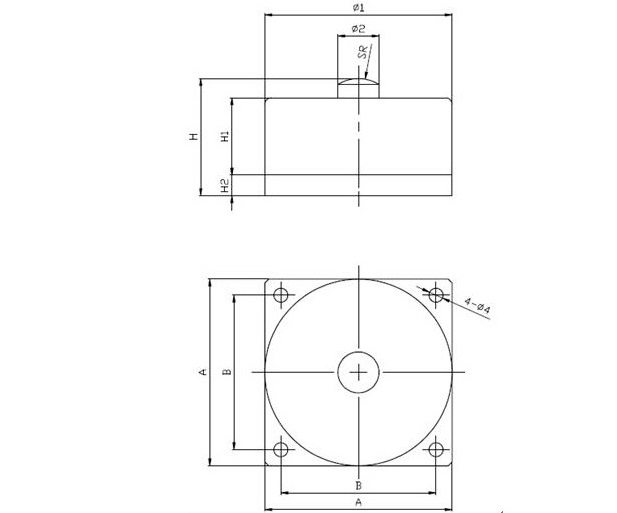

Dimension:
Technical Parameter:
The sensor can meet the test requirements of a wide range of sensors, with a range of 100kN~200kN.
High precision, with good temperature and time stability, low height, good rigidity, and strong resistance to eccentric loads.
Widely used in belt scales, hopper scales, storage scales, material tanks, material mechanics testing machines, labor safety testing equipment, etc
KWT1D55H series can provide reliable test results even in harsh industrial environments. The accurate and reliable prouction process ensures that it has a small linear error. The extremely high rigidity makes the sensor fit for scientific research and rapid production processes.
Widely used in testing machines, truck scales, hopper scales, various industrial weighing systems.
Material: stainless steel, alloy steel
Size: Spoke type, Other ranges can be customized
- NS-TH17 series load cells are compact and low in height
- Two forms of rubber seal and welded seal can be selected, all stainless steel material, anti-corrosion;
- It is suitable for platform scales, truck scales, rail scales and automatic measurement and control fields.
Product description:
Capacity ：30~1000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used for electronic truck scales, hopper scales, automotive testing equipment other electronic weighing or force measuring fields and other automation fields.
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
KWT1D75H series is a kind of bilayer through-hole struture load cell,it is a improved version based on KWT1D55H series to meet more measurement application scene. It adopts the multi-strain gauge bridge design, which can significantly optimize the performance and reduce the influence of external load on the sensor performance. This series has a low structure, and its very suitable for applications in environments with limited vertical space. This is a load cell that can handle eccentric loads and still maintain high accuracy and reliability.
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
Product description:Features:
Capacity ：0.5~50Ton
42CrMoA alloy steel
Compact structure
Nickel plating on surface
Suitable for material testing machine, packaging scale, belt scale, hopper scale and other force testing instrument as well as automation equipment and testing filed.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
