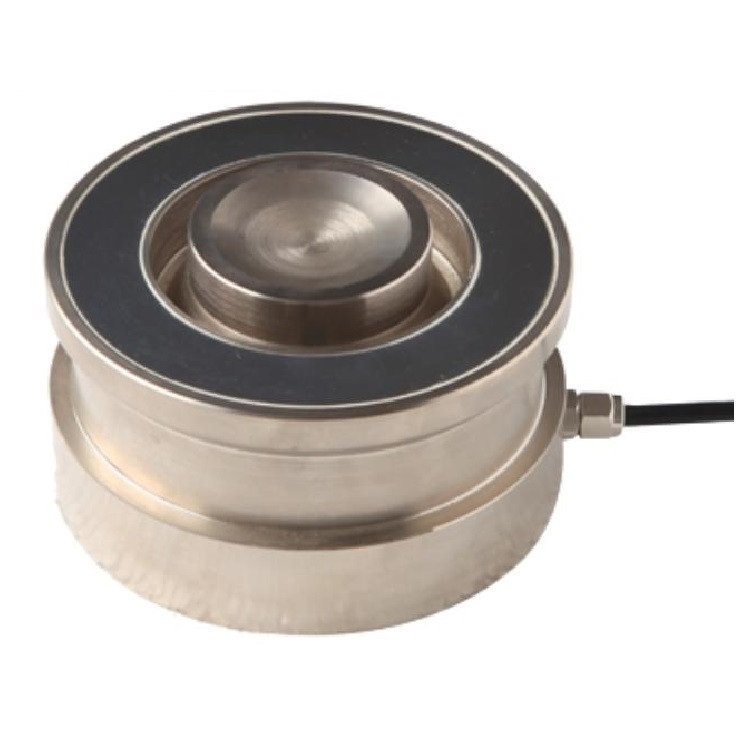

LC504 RTN Spoke Type Load Cells Torsional Ring Load Cell with Display

Product Description

LC504

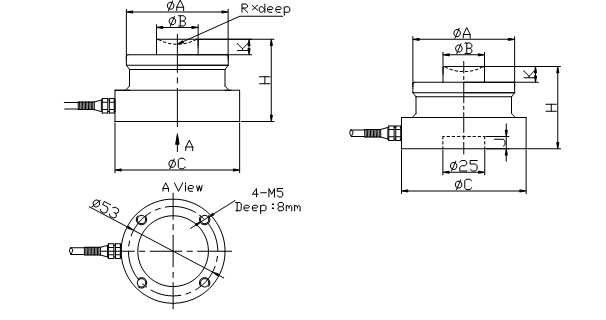

Dimension Unit: mm

LC504

Cap. 1t 2.2t 4.7t 10t 15t 22t 33t 47t 68t 100t 150t 220t 330t 470t
φA 49 49 49 74 75 75 95 130 130 150 150 22.5 225 270
φB 20 20 20 30 30 30 40 60 60 70 70 100 100 120
φC 60 60 60 75 75 75 95 130 130 150 151 22.5 225 270
H 43 43 43 50 50 50 65 75 85 90 100 130 145 170
J – – – 7 7 7 7 7 7 7 7 10 10 10
K 7.5 7.5 7.5 6.5 6.5 6.5 10 14 14 16 16 24 24 28
R 15 15 15 25.4 25.4 25.4 50 60 – – – – – –
Deep 2.2 2.2 2.2 3.3 3.3 3.3 3.3 5.1 – – – – – –

Product Characteristics:

◆LC504A load cells are available for manifold accurate measurement in the capacities 2.2t to 470t.

◆Alloy steel or Stainless steel, completely welded,oil-proof,waterproof and anti-corrosive gas and medium, suitable for all kinds of environments.

◆Spoke type,suitable for electronic truck scales,hopper scales, automotive testing equipments other electronic weighing or force measuring fields.

Technical Parameter:

Rated Load: 1/2.2/4.7/10/15/22/33/47/68/100/150/220/330/470t
Sensitivity: (2.0±0.01%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: A:Alloy Steel, SS:Stainless Steel
Output Resistance: 702±2Ω Cable: Length=L:13m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60
Mode Of Connection: Red(Input+),Black(Input-),Green(Output+),White(Output-)



Product name LC504 RTN Spoke Type Load Cells Torsional Ring Load Cell with Display
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
