Dimension:
Product Description:

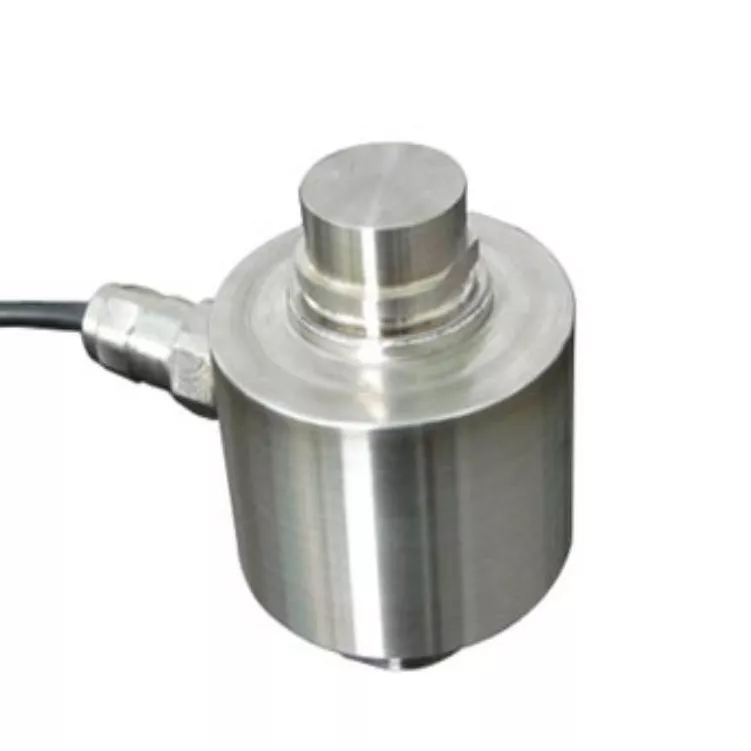

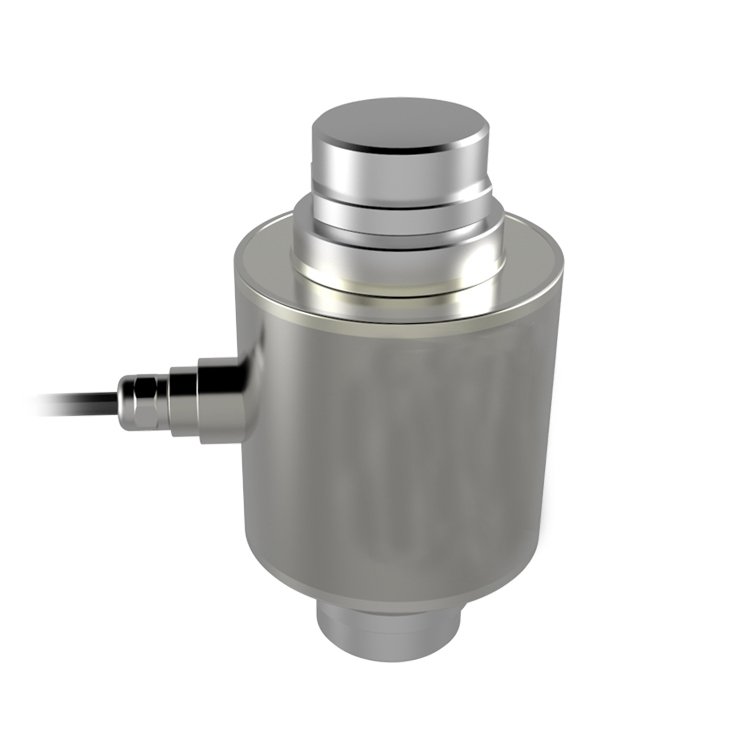

The type LC418 is a stainless steel self centering rocker compression load cell with complete hermetic sealing.
It is a perfect fit for use in harsh industrial environments. Application for Weighbridges, hoppers, tanks and silos scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical parameter:
Product description:
Capacity ：0~50kN
Aluminium Alloy
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing, motorizing equipment and testing field
SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.
The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.
| Model: | NF407 |
| Category： | Column Load Cells |
| Capacity: | 0.5,1,2,3,5,10,20,50,100kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.8/2kg |
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF403 |
| Category： | Column Load Cells |
| Capacity: | 10,20,50,75,100,150kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Model: | NF406 |
| Capacity: | 0.1,0.2,0.5,1,2,5,10,20kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.3KG |
