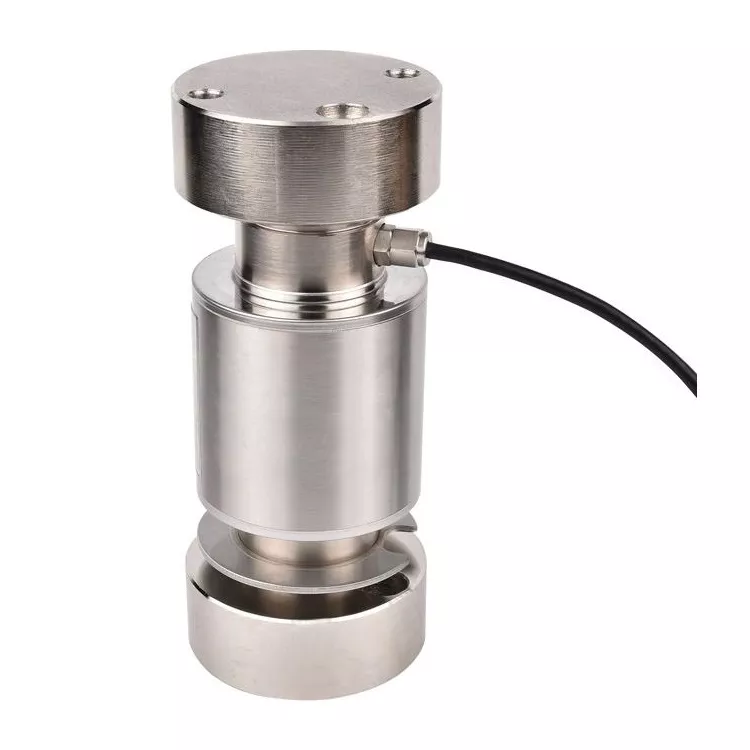

| Product name | LC409MA Zemic Weighing Column Load Cell Digital Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Features:
◎Self-restoring rocker pin load cell.
◎Upper and lower inhibitor design, easy to installation.
◎Dynamic respond, and super capacity for anti-overload.
◎Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Technical Parameter:
SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.
The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF404 |
| Capacity: | 20,50,100,200,300,500,1000,2000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
Product description:
Capacity ：0~50kN
Aluminium Alloy
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing, motorizing equipment and testing field
| Model: | NF407 |
| Category： | Column Load Cells |
| Capacity: | 0.5,1,2,3,5,10,20,50,100kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.8/2kg |
| Model: | NF402B |
| Capacity: | 20,50,100,200,300,500N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
