SAINTBOND / LC406M Column Type Force Sensor & Load Cells Column Load Cell Supplier

LC406M Column Type Force Sensor & Load Cells Column Load Cell Supplier

LC406M_01 LC406M_02

Cap/t	D	H	H1	L	L1	L2	L3	L4	L5	W	W1	W2	W3
10-60t	18	222.5	15	280	25	115	115	185	160	200	17.5	65	102.5
100t	22	300	30	420	35	230	120	330	300	400	35	165	165
200t	24	355	40	220	17.5	185				180	22.5	135
300t	30	465	50	360	35	290				230	35	160

Product Descriptions:

The LC406 is approved for use in various applications in Europe, Asia, America and almost everywhere else in the world. If an approval is required, the LC406M probably already complies.

Use the LC406 load cell in new truck, railroad track and other heavy capacity weighbridge applications or as a replacement for cells in an old weighbridge to enhance its performance,The LC406 is ideally suited to this application in Vehicle Weighing.

The capacity range from 20t to 300t allows the weighing of big tanks and silos with ease. The stainless steel design (20t-200t), hermetic sealing and IP68 protection provides the best reliability in tank weighing applications.

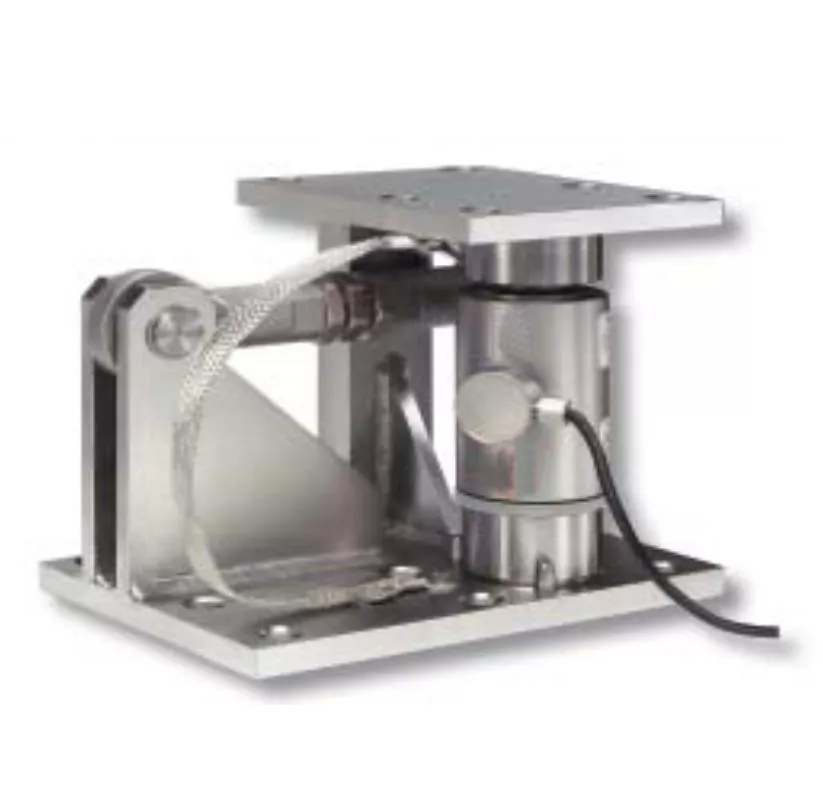

LC406M Module The optional (20t-100t) weigh module adds suspension, checking and anti-tiping to your LC406 load cell and includes top and bottom mounting plates to simplify installation. Available in nickel plated mild steel or stainless steel.

Technical Parameter:

Rated Load:	20/30/40/50/60/100/120/200/250/300t
Sensitivity:	(2.0±0.1%)m V/V	Operating Temp. Range:	-30~+70℃
Combined Error:	±0.03% F.S	Maximum Safe Over Load:	150%F.S
Creep Error(30min):	±0.02% F.S	Ultimate Over Load:	250%F.S
Zero Balance:	±1% F.S	Recommend Excitation:	10~12V DC
Tco:	±0.02% F.S/10℃	Maximum Excitation:	15V DC
Tc Span:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Input Resistance:	1160±10Ω	Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Output Resistance:	1000±3Ω	Cable:	Length=12m(20,30,40t), 16m(50,100t), 18(20~300t)
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)

Product name	LC406M Column Type Force Sensor & Load Cells Column Load Cell Supplier
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply

SAINTBOND / LC409MA Zemic Weighing Column Load Cell Digital Load Cell

AVAILABILITY: In stock

Product name	LC409MA Zemic Weighing Column Load Cell Digital Load Cell
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply

Model:	NF404
Capacity:	20,50,100,200,300,500,1000,2000N
Rated Output:	2.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP65

Model:	NF401
Category：	Column Load Cells
Capacity:	10,20,30,50N
Rated Output:	2.0±10%mV/V
Material:	Stainless steel

Model:	NF402B
Capacity:	20,50,100,200,300,500N
Rated Output:	2.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP65

Model:	NF403
Category：	Column Load Cells
Capacity:	10,20,50,75,100,150kN
Rated Output:	2.0±10%mV/V
Material:	Stainless steel

Model:	NF407
Category：	Column Load Cells
Capacity:	0.5,1,2,3,5,10,20,50,100kN
Rated Output:	1.5±10%mV/V
Material:	Stainless steel
Protection Class:	~
Weight:	0.8/2kg

Model:	NF411
Category：	Column Load Cells
Capacity:	5,10,20,50,100kN
Rated Output:	1.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP66
