SAINTBOND / LC3999 Low Profile Aluminum Sensor Planar Beam Load Cell

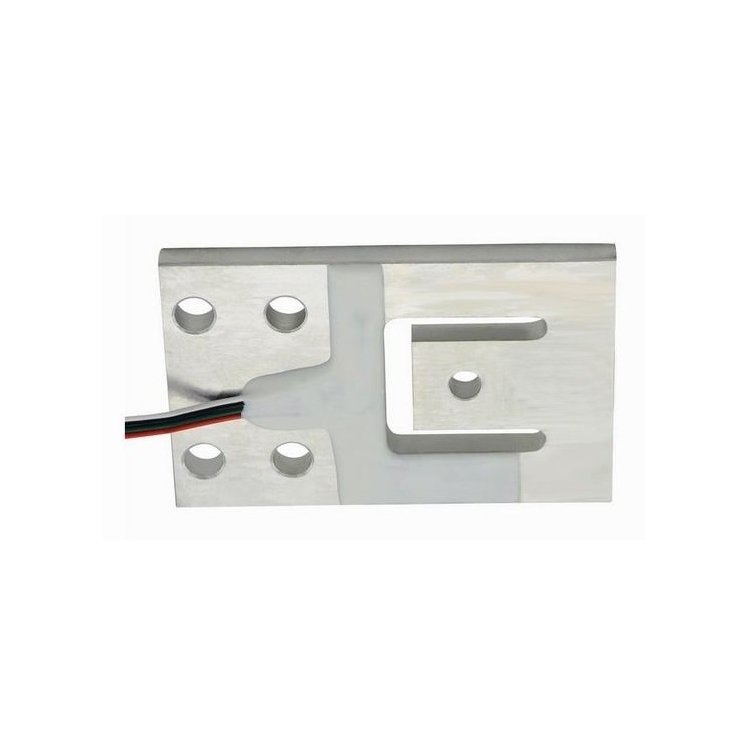

LC3999 Low Profile Aluminum Sensor Planar Beam Load Cell

LC3999-3

Product Description:

LC3999 is a very low profile planar beam design, allowing direct mounting in low profile platform scales. The range of capacities and low profile makes model 380 most suitable for use in a wide range of applications.

Features:

◎Full Scale Output: 0.9mV/V±0.1%;

◎Safe Overload: 150%;

◎Breaking Overload: 300%;

◎IP Rating: IP65;

Dimension:

LC3999

Cap.	L	A	B	C	D	W	H	Q1	Q2
(kg)	(mm)
7.5kg	70	14	28	4.9	27.8	39	2.5	5.1	5.1
15kg	70	14	28	4.9	27.8	39	4.1	6.2	5.1
37.5kg	76.2	15	29.3	6	30	44.5	4.8	6.2	6.6
50kg	84.5	15	34	6.4	30	55	5.3	7.6	6.6
75kg	84.5	15	34	6.4	30	55	6.4	7.6	6.6
150kg	107.5	22.8	45.9	7.8	44.5	70	8	5/16unc	8.1
250kg	107.3	22.9	45.8	7.9	44.5	70	10.0	9.1	8.1

Specification:

Rated Capacity:	7.5/15/37.5/50/75/150/250kg
Full Scale Output:	1.0mV/V ± 0.1%	Insulation Resistance:	>5000M
Zero Balance:	± 0.02mV/V	Temp. Effect on Sensitivity:	<±0.0015% of Cn/k
Non-linearity:	< ± 0.020%	Temp.Effect on Zero Balance:	<± 0.0030% of Cn/k
Repeatability:	< ± 0.017%	Nominal Temperature Range:	–10°C to 40°C/14°F to 104°F
Hysteresis Error:	< ± 0.015%	Service Temperature Range:	–18°C to 65°C/0°F to 149°F
Creep in 30 minutes:	< ± 0.015%	Storage Temperature Range:	-50°C to 85°C/-58°F to 185°F
Recommended Excitation:	10V (15V Maximum)	Safe Overload:	150% of full scale
Cable length:	1.5m	Breaking Overload:	300% of full scale
IP Rating:	IP65	Safe side bad:	200% of full scale
Construction:	Aluminum
Input Resistance:	1160Ω ± 10Ω /750±5Ω /380Ω ± 10Ω
Output Resistance:	1000Ω ± 10Ω /702±2Ω /350Ω ± 10Ω

Product name	LC3999 Low Profile Aluminum Sensor Planar Beam Load Cell
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
