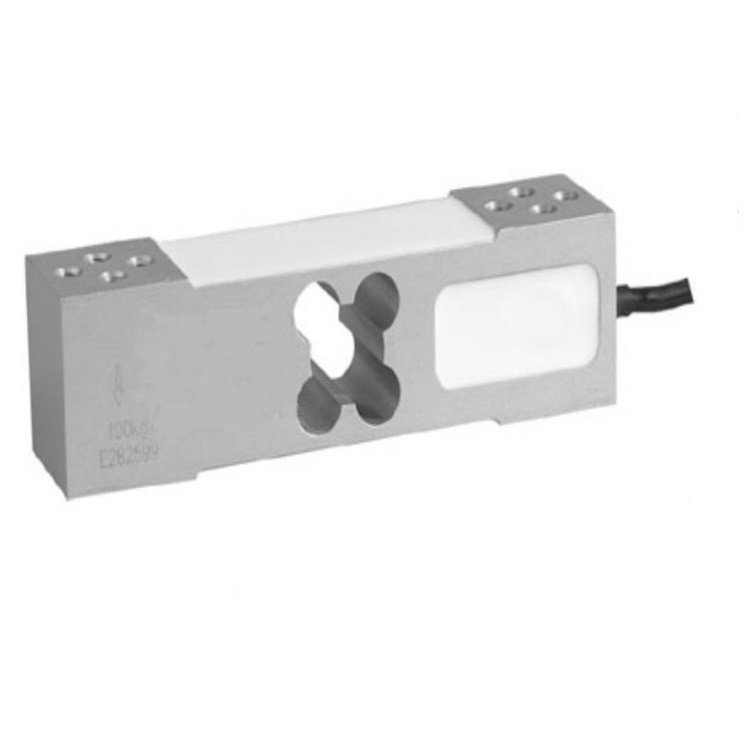

LC3532 Smaller Check Weighing Systems Load Cell Aluminum Force Sensor Load Cell

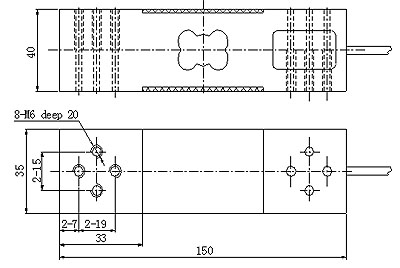

Dimensions:

Technical Parameter:
케이센서스 스마트스토어

Dimensions:

Technical Parameter:
| Rated Load: | 50/60/80/100/150/200/300kg | ||
| Sensitivity: | (2.0±0.1%) mV/V | Insulation Resistance: | ≥5000MΩ |
| Combined Error: | ±0.03% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP65 |
| Output Resistance: | 353±2Ω | Element Material: | Aluminum |
| Citation: | GB/T7551-2008/ OIML R60 | Cable: | Length=L:3m |
| Product name | LC3532 Smaller Check Weighing Systems Load Cell Aluminum Force Sensor Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
용량:100, 150, 200, 300, 500, 750kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
용량:100, 200, 300, 500, 750
재질 : stainless steel
타입 : Single Point
보호등급 : IP68 / IP69K
Features
용량:10, 20, 30, 50, 100kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Capacity: 100–500 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for price computing scales, bench scales, and other electronic weighing devices.
Capacity: 300 kg–2 t
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for heavy-duty platform scales with a single load cell structure.
Features
용량:60, 100, 200, 300kg
재질 : Aluminum
타입 :Single Point
보호등급 : IP66
Capacity: 60–200 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP68 / IP69K
Suitable for stainless steel waterproof scales and process weighing control in the chemical, food, and pharmaceutical industries.
용량:60, 100, 200, 300kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Features
용량:10, 30, 50kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
용량:100, 200, 300, 400, 500
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
용량:11, 22, 60, 100kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP68 / IP69K
