Minitype cylindrical type sensor NF401
Features

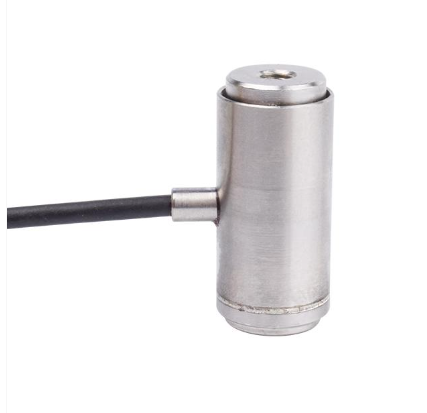

Minitype cylindrical type sensor NF401 uses the principle of high precision resistance strain gauge that converts force into an electrical signal. The column load cell can only measure relatively small forces because of its small size. The cylindrical force sensor can be used in limited installation space for force measuring applications .
- Compact size
- High dynamic response frequency
- Oil proof, water proof and corrosion proof
Applications
- 3C product
- Force distribution analysis
- Medical detection

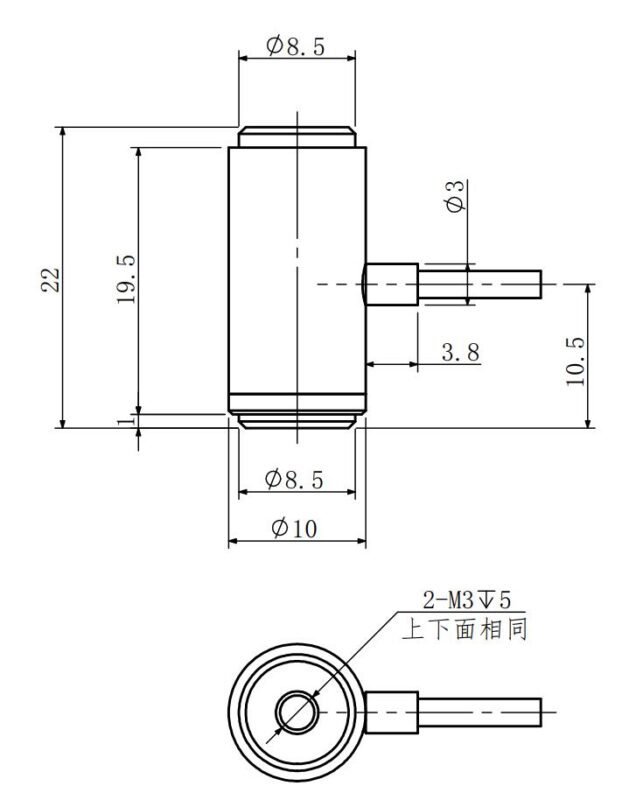

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,30,50N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±30Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
