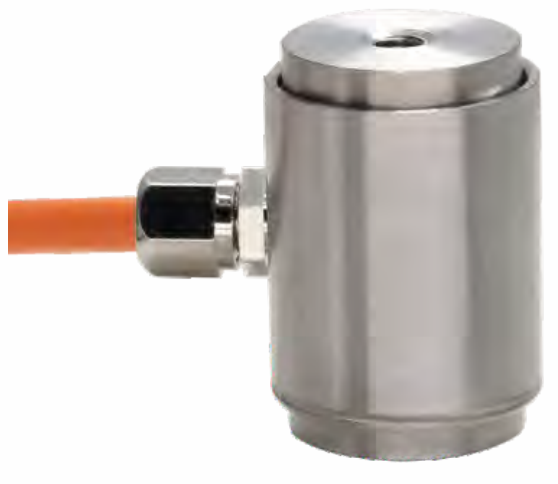

Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing.

Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.

Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.

SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.

The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

Material: stainless steel

Size: Low height, Plane loading

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.

• Capacity: 0-100T
• Sensitivity: 1.5±0.05mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.

이 센서는 고급 합금강으로 제작되었으며, 안정성이 뛰어나고 간섭에 강합니다. 공간 제약이 있는 환경에서도 설치가 가능하고, 다양한 산업 자동화 및 검사 분야에 적합합니다.
