Micro flatbed pressure load cell NF127
Features
Micro flatbed pressure load cell NF127 is made of stainless steel. The subminiature load cell has six measuring ranges, respectively 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG. The subminiature flange force sensor can be used in many applications.
- Mini size
- Small deformation
- High precision
Applications
- 3C product testing
- Robotics
- Clamping force measurement

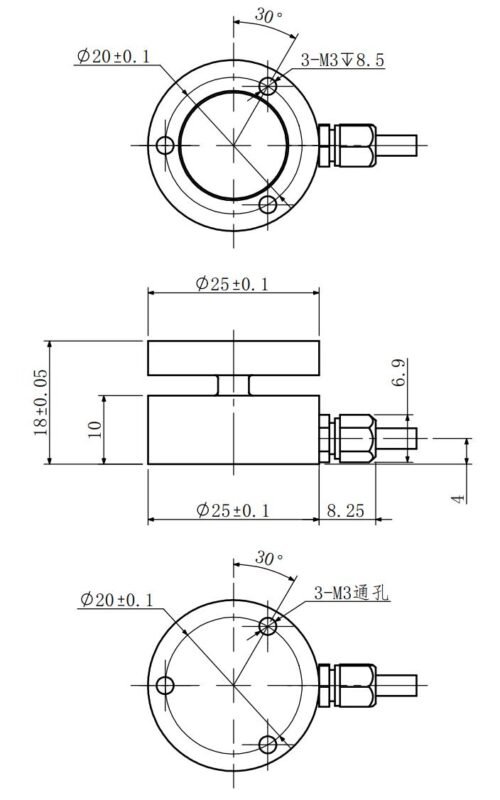

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500kg |
| Rated output | 1.5±10%mV/V |
| Zero balance | ± 0.03mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.30%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 700±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
| Material | Stainless Steel |
