MLC507 – Through-shaft Gasket Type Ring Load Cell 500kg

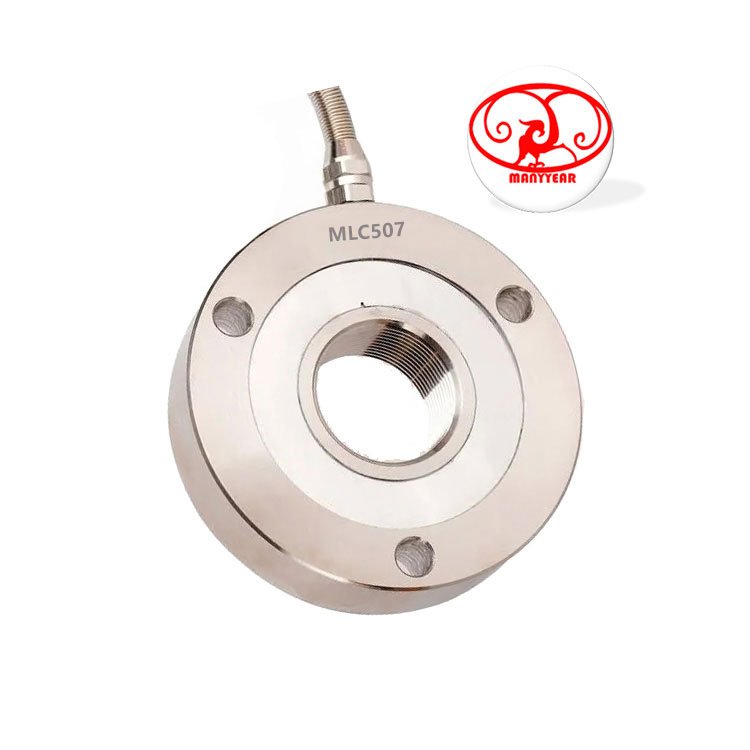

Product Picture
Product Overview
- Model: MLC507
- Category: Axial load cell
- Rated Load: 500, 1000, 2000, 3000, 5000 kg
- Material: Alloy steel
- Safe Overload: 120% FS
- Ultimate Overload: 150% FS
- Size: D120 × H30 mm
- Wire Type: D5 × 5000 mm
- Features: Ring load cell, gasket load cell, axial force sensor, extrusion force sensor, preload force sensor
※ Specifications are for reference only. ODM customization is available.
Technical Specifications
| Comprehensive Error | 0.05% FS | Output Resistance | 352±5Ω |
| Rated Output | 1.0±0.002 mV/V | Insulation Resistance | ≥5000 MΩ (100VDC) |
| Non-linearity | 0.02% FS | Excitation Voltage | 9–15 VDC |
| Hysteresis | 0.02% FS | Compensated Temperature | -10~+40 ℃ |
| Repeatability | 0.02% FS | Use Temperature | -40~+80 ℃ |
| Creep | 0.02% FS / 10 Min | Temp Effect on Zero | 0.03% FS / 10 ℃ |
| Zero Balance | ±1% FS | Temp Effect on Span | 0.02% FS / 10 ℃ |
| Input Resistance | 380±5Ω | Protection Grade | IP68 |

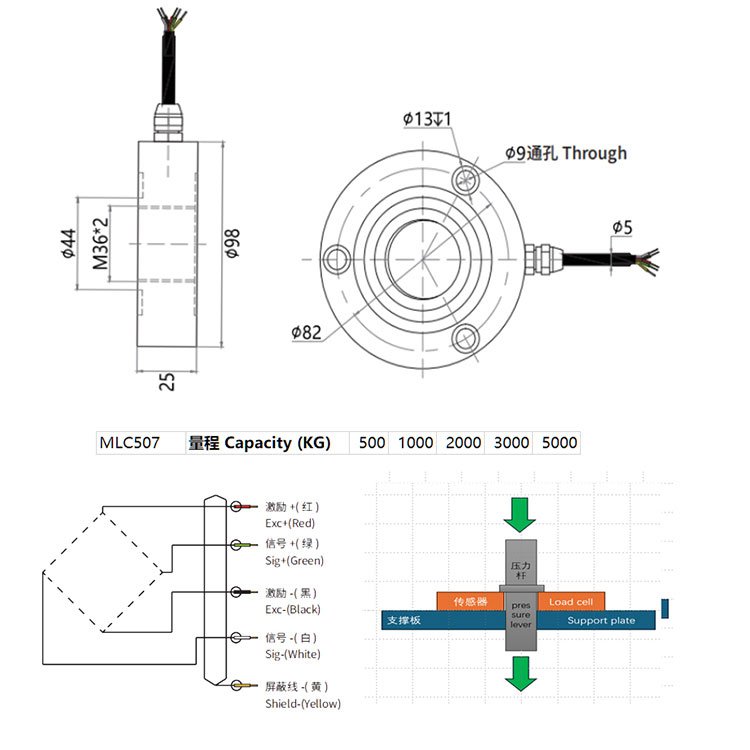

Product Dimension
