MLC405N Weighbridge Load Cell
(Truck Scale Compression Load Cell)

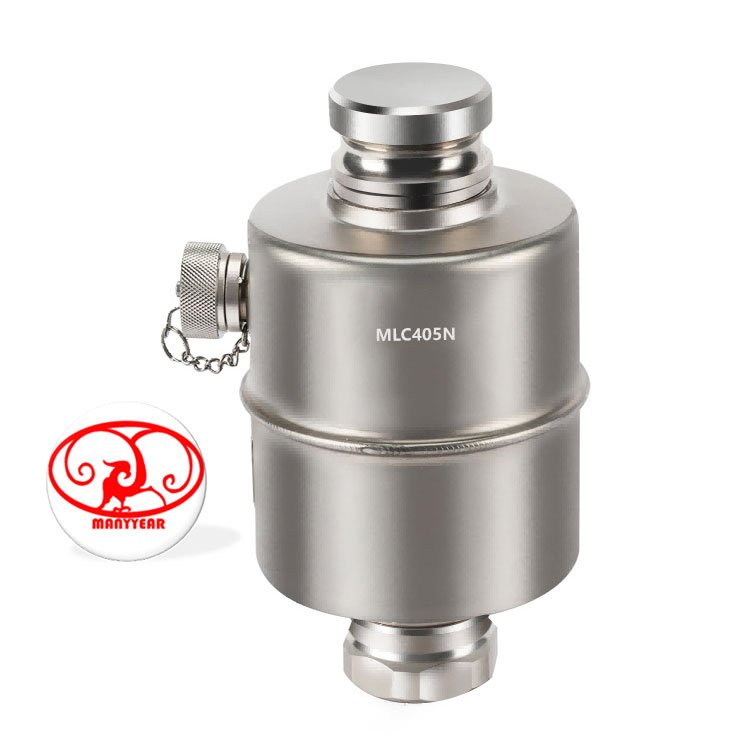

Product Picture Reference
Technology Specification
Below specifications are for reference only. ODM customization is available.
Basic Information
| Item | Description |
|---|---|
| Model | MLC405N |
| Category | Compression Load Cell |
| Capacity Range | 10t / 20t / 25t / 30t / 40t / 50t |
| Dimension | 85 × 150 mm |
| Material | Alloy Steel, Stainless Steel |
| Applications | Truck scale, Railway scale, Floor scale, Weighbridge |
Electrical & Mechanical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Comprehensive Error | 0.02% FS | Output Resistance | 1000 ±3 Ω |
| Rated Output | 2.0 ±0.002 mV/V | Insulation Resistance | ≥5000 MΩ (100VDC) |
| Non-linearity | 0.03% FS | Excitation Voltage | 5 ~ 12 VDC |
| Hysteresis | 0.03% FS | Compensated Temp. | -10 ~ +40 ℃ |
| Repeatability | 0.02% FS | Operating Temp. | -30 ~ +70 ℃ |
| Creep | 0.02% FS / 10 min | Temp. Effect on Zero | 0.02% FS / 10 ℃ |
| Zero Balance | ±1% FS | Temp. Effect on Span | 0.02% FS / 10 ℃ |
| Input Resistance | 1160 ±10 Ω | Protection Grade | IP66 / IP68 |
Product Dimension
Force Structure & Assembly Reference
