MLC404 Hopper Scale Load Cell
(Compression Load Cell for Truck Scale & Hopper Applications)

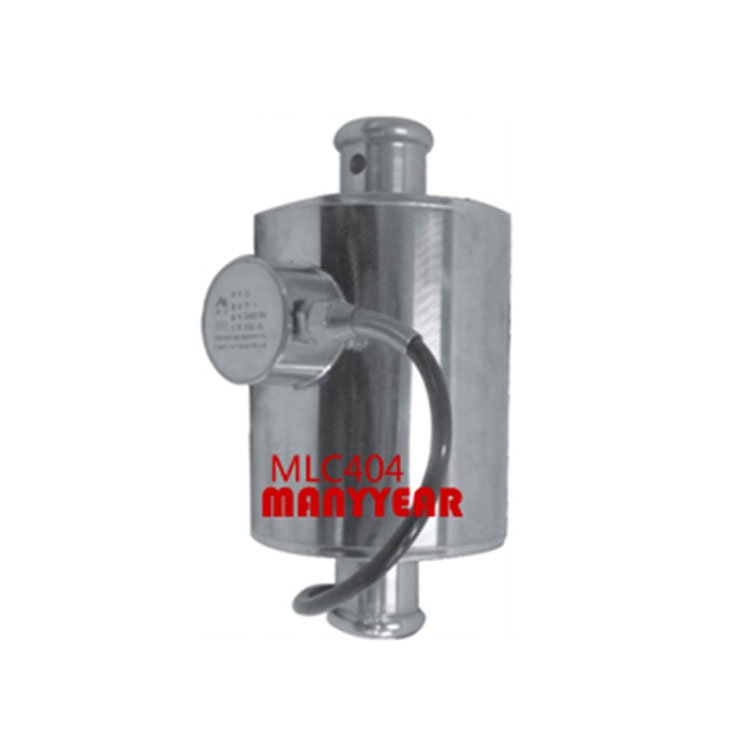

Product Picture Reference
Technology Specification
Below specifications are for reference only. ODM customization is available.
Basic Information
| Item | Description |
|---|---|
| Model | MLC404 |
| Category | Compression Load Cell |
| Capacity Range | 30t / 45t |
| Dimension | 101.6 × 200 mm |
| Material | Alloy Steel, Stainless Steel |
| Applications | Truck scale, Hopper scale, Compression test |
Electrical & Mechanical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Comprehensive Error | 0.05% FS | Output Resistance | 352 ±5 Ω |
| Rated Output | 2.0 ±0.005 mV/V | Insulation Resistance | ≥5000 MΩ (100VDC) |
| Non-linearity | 0.05% FS | Excitation Voltage | 9 ~ 12 VDC |
| Hysteresis | 0.05% FS | Compensated Temp. | -10 ~ +40 ℃ |
| Repeatability | 0.03% FS | Operating Temp. | -20 ~ +55 ℃ |
| Creep | 0.03% FS / 10 min | Temp. Effect on Zero | 0.05% FS / 10 ℃ |
| Zero Balance | ±1% FS | Temp. Effect on Span | 0.05% FS / 10 ℃ |
| Input Resistance | 380 ±10 Ω | Protection Grade | IP66 / IP68 |
Product Dimension
Force Structure & Assembly Reference
