MLC214 Round Compression Force Sensor

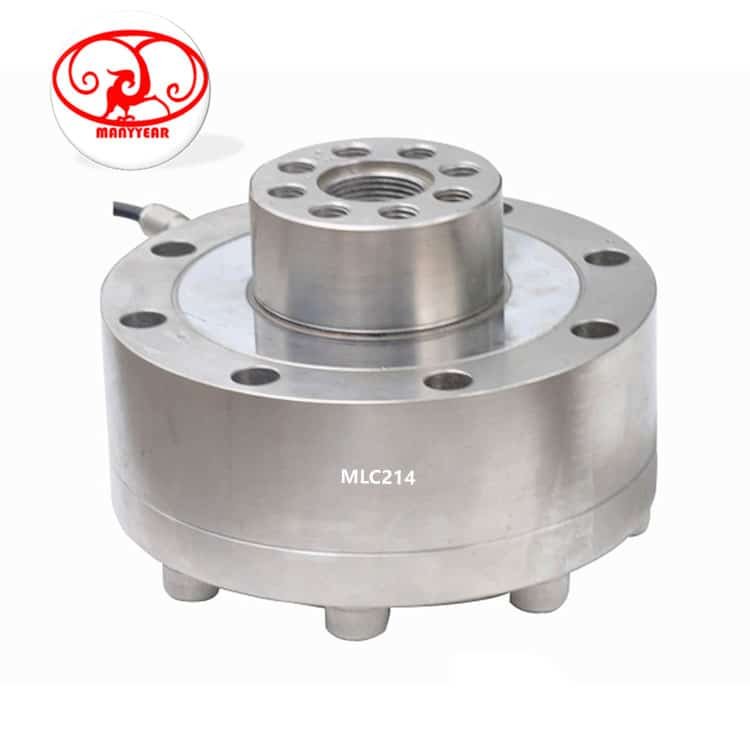

Product Picture Reference
Technology Specification
Below specifications are for reference only. We support ODM / customized products based on customer requirements.
|
Model: MLC214 Category: Button Load Cell Range: 10t, 20t Dimension: 164 × 111 mm / 190 × 137 mm Material: Alloy Steel / Stainless Steel Features: Compression force sensor, button load cell, round force sensor |
Other Dimensions
| Load Range | A | C | D | E | F | G | H | I | J | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 ton | D164 | D118 | D34 | D52 | D74 | 15 | 111 | 34 | 30 | M30×2 |
| 20 ton | D190 | D136 | D43 | D67 | D96 | 22 | 137 | 44 | 40 | M39×2 |
| Specifications | |||
|---|---|---|---|
| Comprehensive Error | 0.1% FS | Output Resistance | 352 ±5 Ω |
| Rated Output | 2.0 ±0.005 mV/V | Insulation Resistance | ≥5000 MΩ (100VDC) |
| Non-linearity | 0.05% FS | Excitation Voltage | 9–12 VDC |
| Hysteresis | 0.05% FS | Compensated Temp | -10 ~ +40 ℃ |
| Repeatability | 0.03% FS | Operating Temp | -20 ~ +55 ℃ |
| Creep | 0.03% FS / 10 min | Temp Effect on Zero | 0.05% FS / 10 ℃ |
| Zero Balance | ±1% FS | Temp Effect on Span | 0.05% FS / 10 ℃ |
| Input Resistance | 400 ±10 Ω | Protection Grade | IP66 / IP68 |

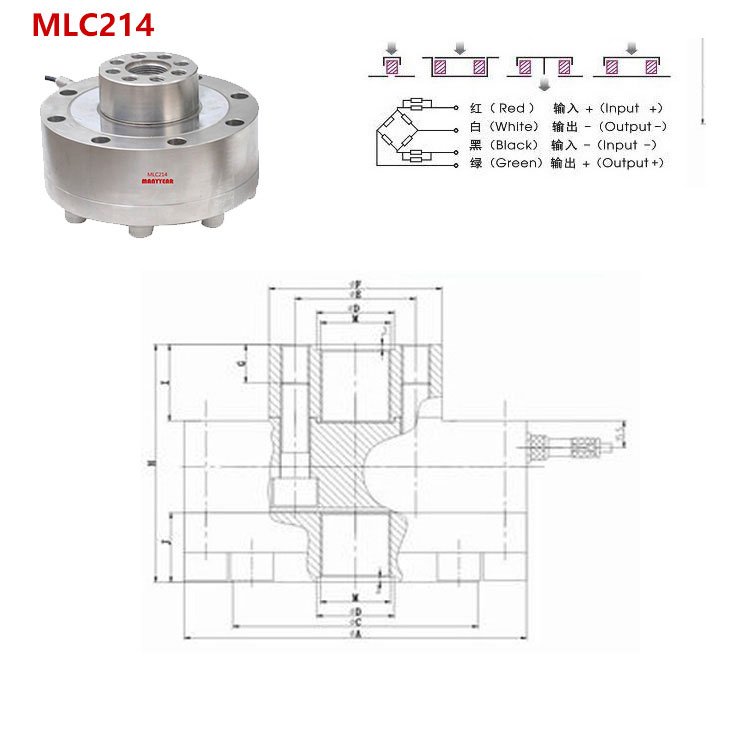

Product Dimension
Force Structure & Assembly Reference
