MLC204E10 Small Size Micro Force Sensor

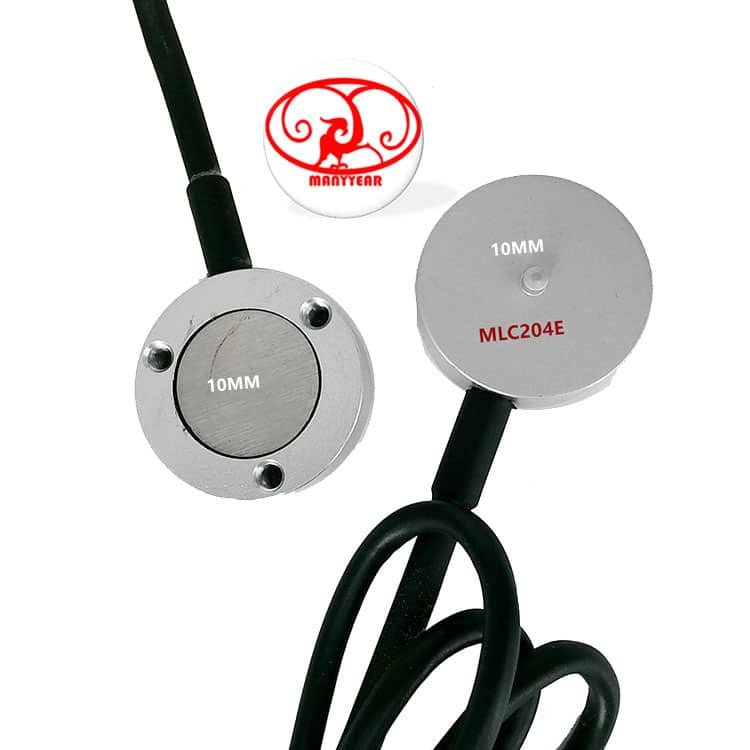

Product Picture Reference
Technology Specification
Below specifications are for customer design reference only. ODM products are available.
Basic Information
- Model: MLC204E10
- Category: Button Load Cell
- Range: 5kg, 10kg, 20kg, 30kg, 50kg, 100kg
- Dimension: Ø10 × 6mm
- Material: Stainless Steel
- Safety Overload: 120% F.S
- Ultimate Overload: 200% F.S
- Features: Miniature button load cell, miniature force sensor, micro force sensor
Electrical & Performance Specifications
| Comprehensive Error | 1.0–3.0% FS | Output Resistance | 350±10Ω |
| Rated Output | 0.5–1.5 mV/V | Insulation Resistance | ≥5000 MΩ (100VDC) |
| Non-linearity | 1.0% FS | Excitation Voltage | 2.5–5 VDC |
| Hysteresis | 1.0% FS | Compensated Temp | -10 ~ +40°C |
| Repeatability | 1.0% FS | Operating Temp | -30 ~ +70°C |
| Creep | 0.3% FS / 30 min | Temp Effect on Zero | 0.2% FS / 10°C |
| Zero Balance | ±2% FS | Temp Effect on Span | 0.2% FS / 10°C |
| Input Resistance | 350±10Ω | Protection Grade | IP66 |

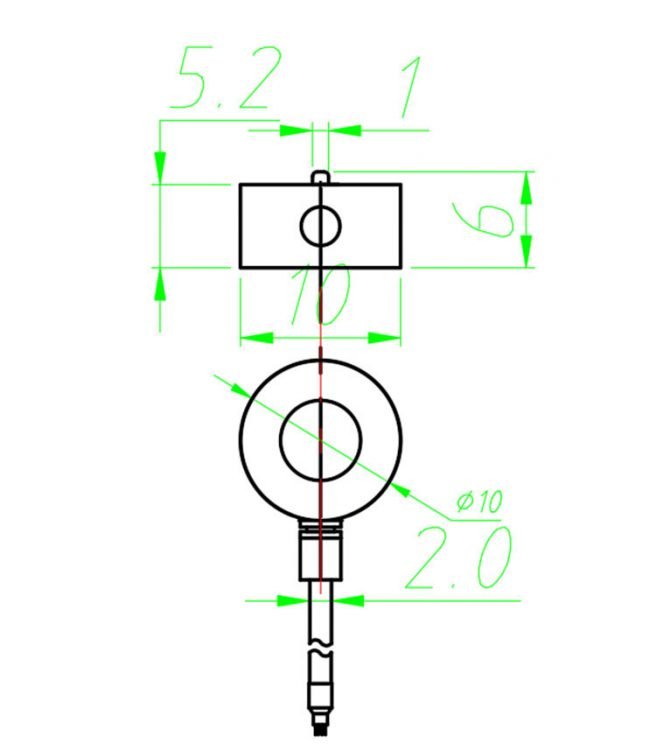

Product Dimension
Force Structure & Assembly Reference
