DR-2113 2413 Dynamic Torque Sensor

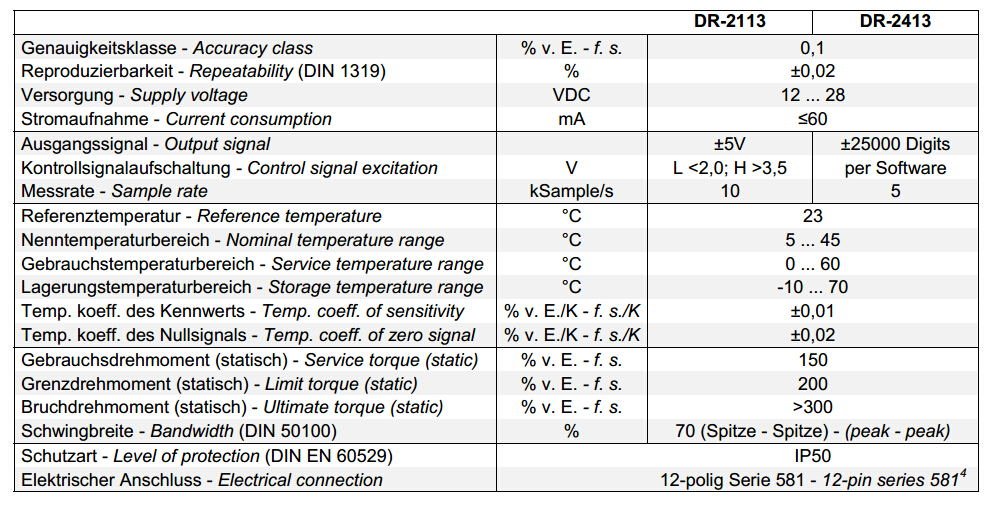

Technical parameters

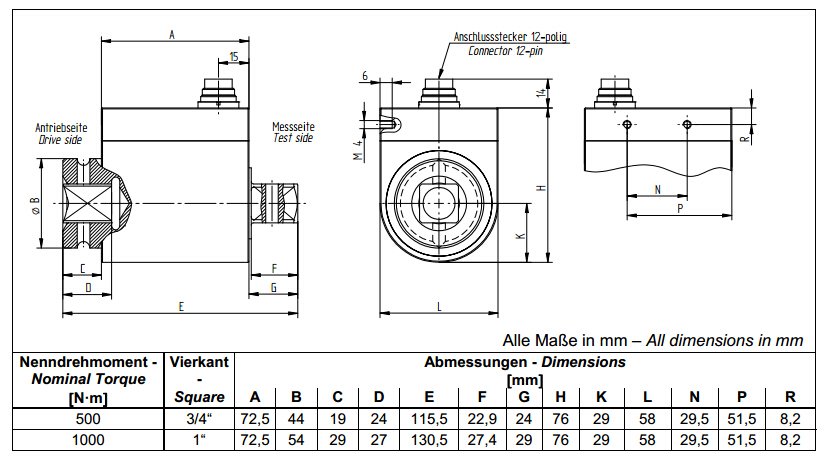

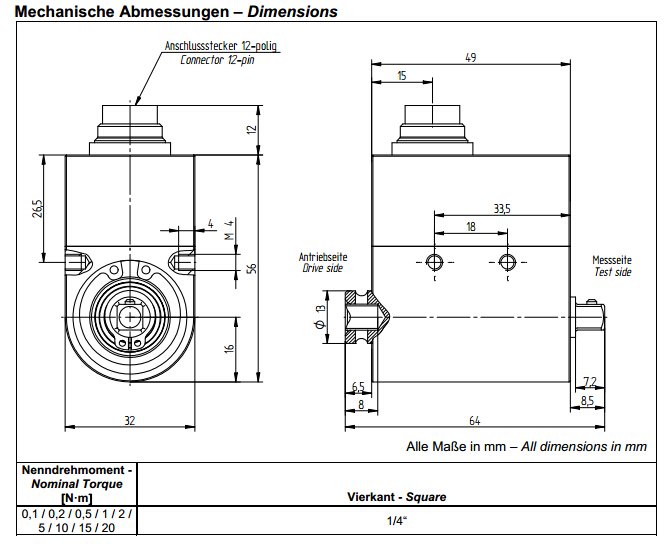

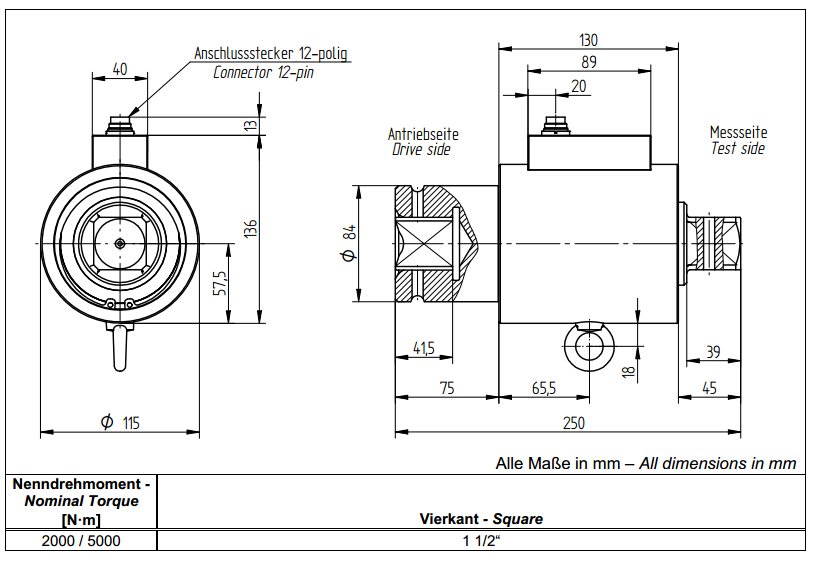

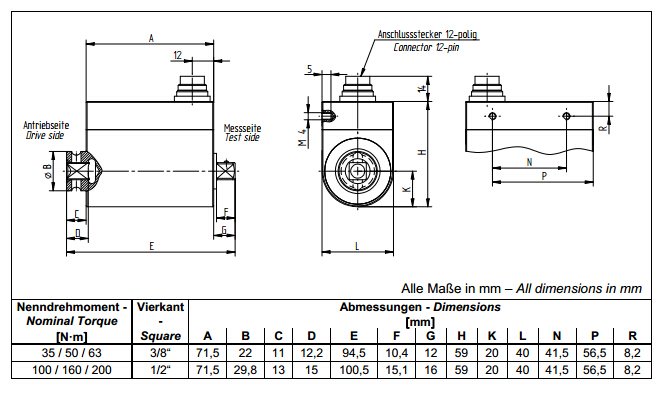

Dimensions
- It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
- High precision, stable and reliable performance
- Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
- Speed up to 1800 RPM.
Feature
- With reset function and speed measurement function.
- Output positive and negative torque signals. Various communication methods are available.
- Non-contact structure, no wear.
- Up to 5000r/min can be customized.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Good temperature characteristics with self-compensated strain gauge.
- High sampling frequency, Quick response, Strong antiinterference ability.
- Boot 5 minutes into the working status, not need preheating course.
- high accuracy, good stability and anti-jamming.
- Do not need repeated zero setting can measure positive and negative torque.
- Small volume, light weight, easy to install.
- The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
- proportional to the torque.
Dynamic Rotary Torque Sensor
Capacity: 10,20,30,50,100,200, 300,500,1000,2000N.m
Category: Dynamic Rotary Torque Sensor
Product description:Features:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
Feature
- Contact structure.
- Flange type connection, thin thickness.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Output positive and negative torque signals, Quick response.
- Good temperature characteristics with self-compensated strain gauge.
- Range: 0~20KN m
- Output: 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.2%F.S
- Maximum output: 12000 r/min
Feature
- Contact structure.
- Small size.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Output positive and negative torque signals, Quick response.
- Good temperature characteristics with self-compensated strain gauge.
