DR-2112-R, DR-2112-RP

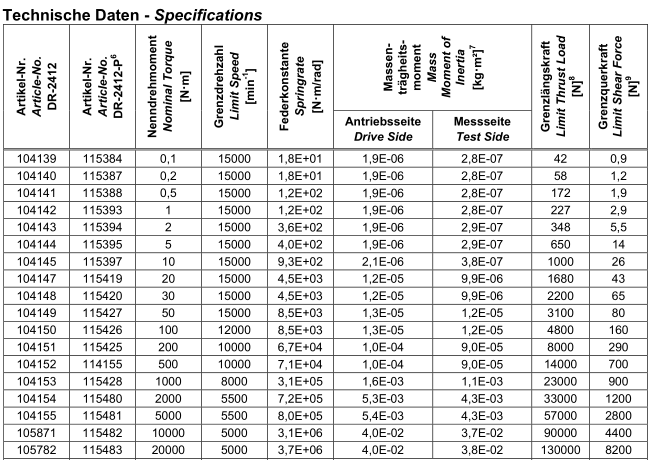

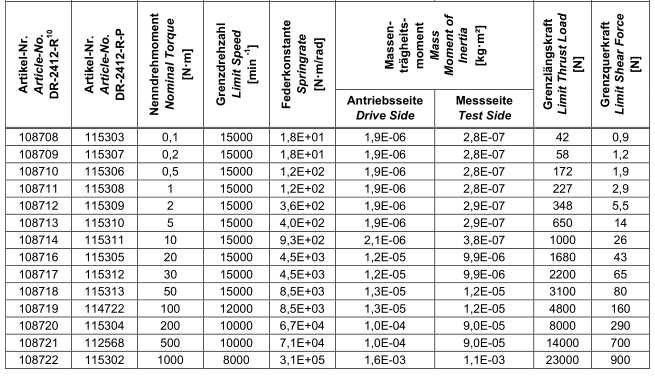

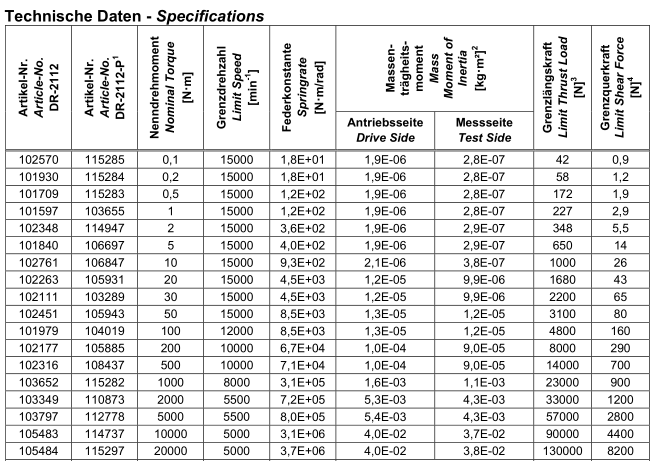

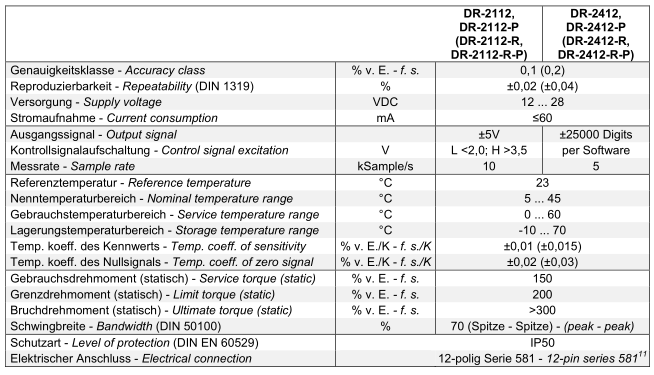

Technical parameters

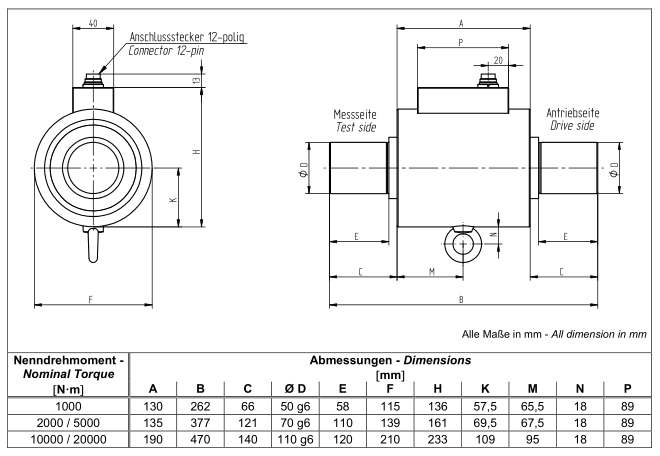

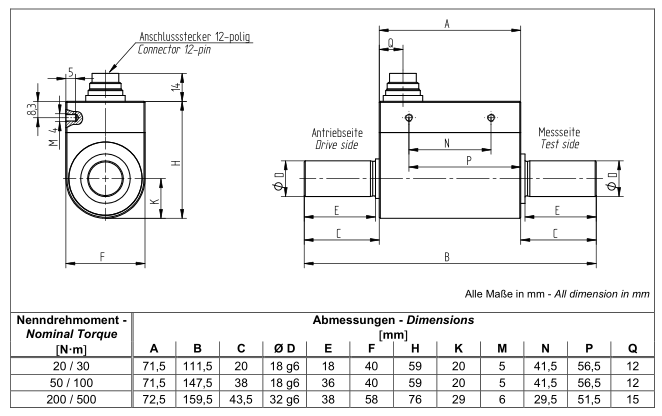

Dimensions
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm
Feature
- With reset function and speed measurement function.
- Output positive and negative torque signals. Various communication methods are available.
- Non-contact structure, no wear.
- Up to 5000r/min can be customized.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Good temperature characteristics with self-compensated strain gauge.
- High sampling frequency, Quick response, Strong antiinterference ability.
Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal: Pulse, 4-20mA
- It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
- High precision, stable and reliable performance
- Small Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
- Speed up to 16000 RPM.
Feature
- Contact structure.
- Small size.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Output positive and negative torque signals, Quick response.
- Good temperature characteristics with self-compensated strain gauge.
1. Non-contact type and small size structure to prevent wear
2. High precision, stable and reliable performance
3. Torque value can be measured in both positive and negative directions , also speed can be measured
4. Both ends are connected by key-way
5. The maximum speed of 8000RPM, suitable for long-term high speed rotation conditions
Dynamic Rotary Torque Sensor
Capacity: 0~0.1,0.2,0.3,0.5, 1~5N.m
Category: Dynamic Rotary Torque Sensor
Dynamic Rotary Torque Sensor
Capacity: 5~5000N.m
Category: Dynamic Rotary Torque Sensor
- It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
- High precision, stable and reliable performance
- Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
- Speed up to 1800 RPM.
- Contact dynamic torque, small range, small size, mV signal output
- Can measure torque values in both forward and reverse directions, but cannot measure rotational speed values
- Both ends are keyed, special shaft lengths can be customized
- Max speed≤1800r/min，Reach quickly 3000r/min
