D-2268 Static Torque Sensor

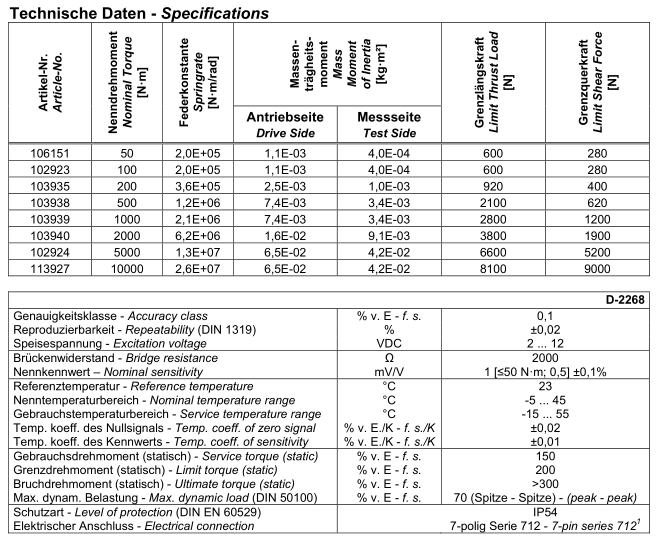

Technical parameters

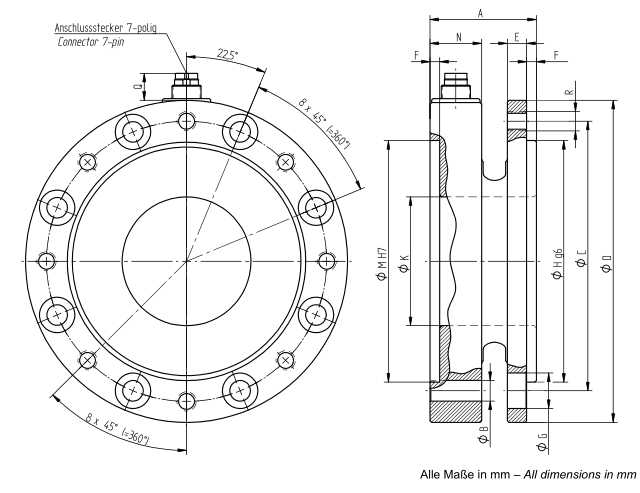

Dimensions
Widely used for torque value measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc .; Compact structure for easy installation;
Material: Alloy steel
Features: Strong bending moment Long frequency life
-
Double flange connection, easy installation
-
Applicable to measure and control of the static, non-continuous rotation torque force value
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications.
Features:
Capacity 1Nm-200Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
The TJN-5 static torque measurement sensor is suitable for the measurement and control of static and discontinuous rotation torque.
The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.
Features:
Capacity 1000Nm-5000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Suitable for static and discontinuous rotation torque measurement;
Material: Aluminum alloy
Exterior: Compact structure
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: stainless steel Aluminum alloy
Features: High precision Strong anti-eccentricity Customizable
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
