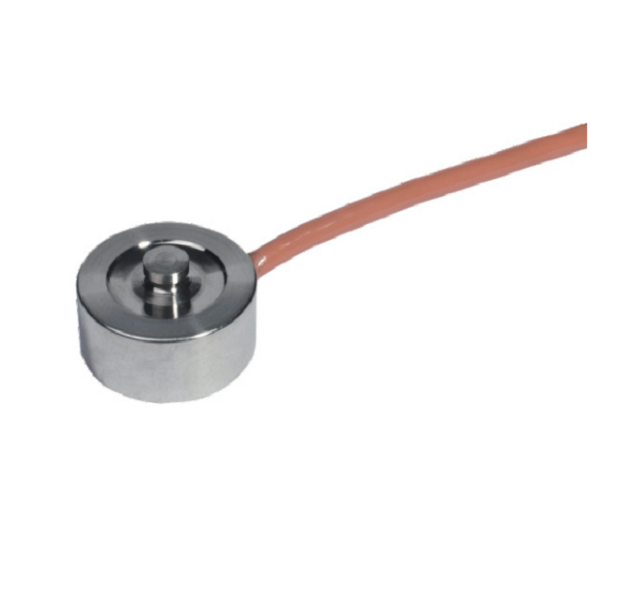

LB20 Column Force Sensors

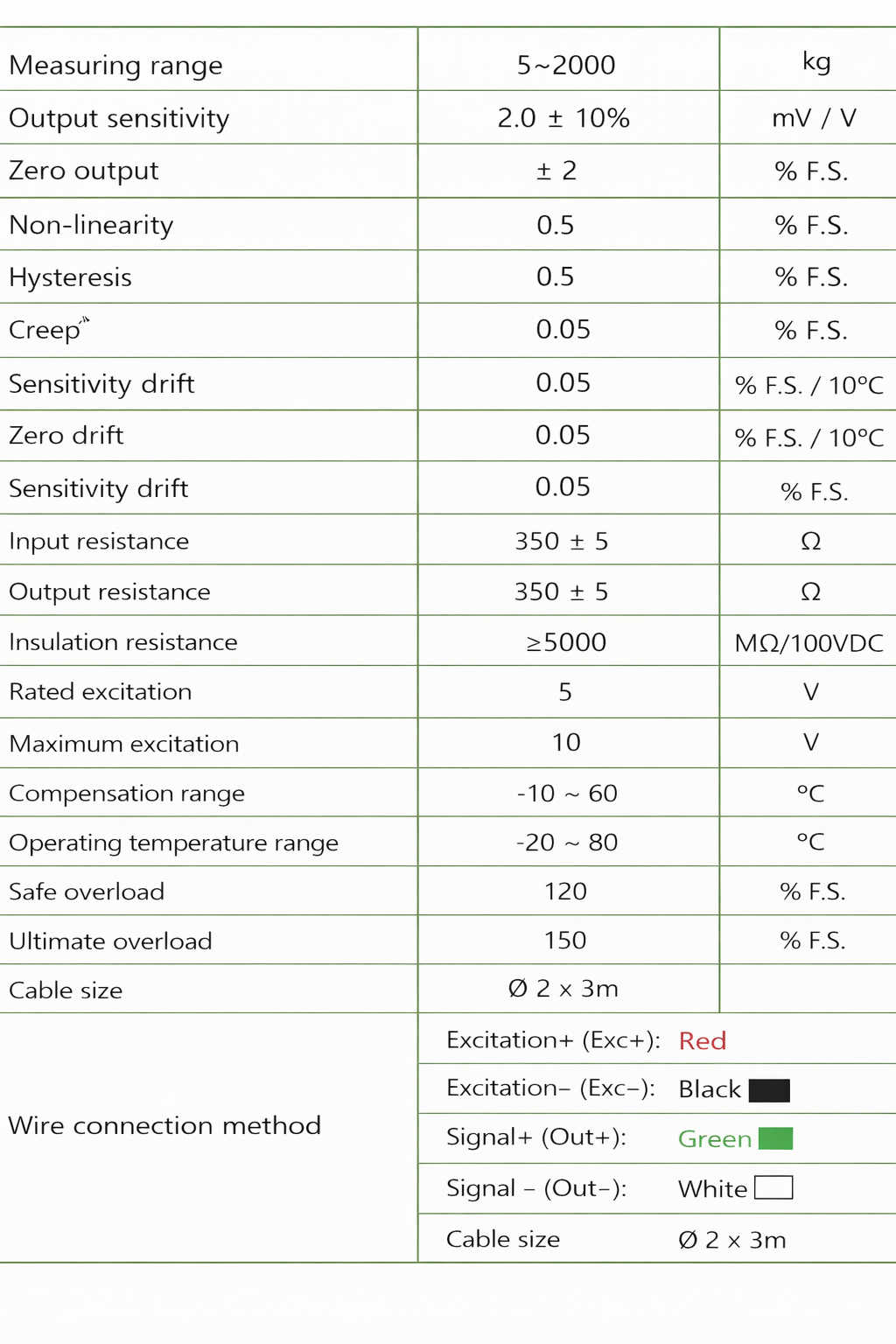

Technical parameters

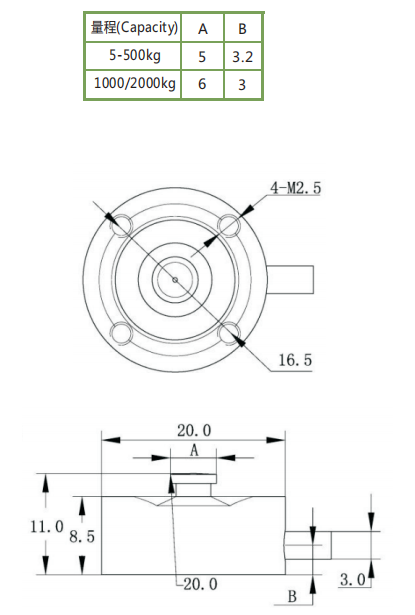

Dimensions
Product description:
Capacity ：0~50kN
Aluminium Alloy
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing, motorizing equipment and testing field
| Model: | NF407 |
| Category： | Column Load Cells |
| Capacity: | 0.5,1,2,3,5,10,20,50,100kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.8/2kg |
| Model: | NF404 |
| Capacity: | 20,50,100,200,300,500,1000,2000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
