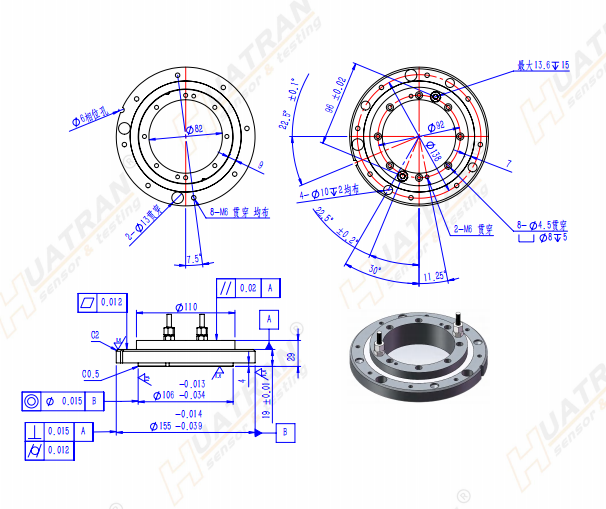

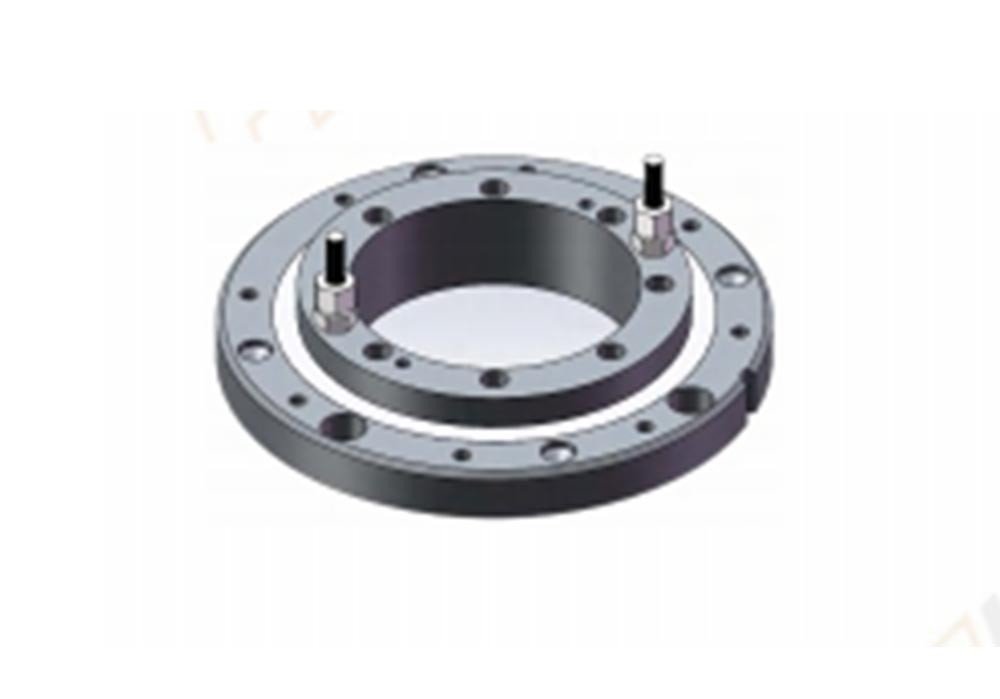

HW155-82 Hollow Washer Type
Technical parameters:
1. Measuring range: 5T
2. Sensitivity: 1.0±0.2mV/V
3. Nonlinearity: ≤±0.2%FS
4. Lag: ≤±0.2%FS
5. Repeatability: ≤±0.2%FS
6. Creep/30min: ≤±0.2%FS
7. Zero-point output: ≤±1%FS
8. Zero-point temperature coefficient/10℃: ≤±0.1%FS
9. Sensitivity coefficient/10℃: ≤±0.3%FS
10. Input impedance: 1400±20Ω
11. Output impedance: 1400±5Ω
12. Insulation resistance ≥ 5000MΩ (50VDC)
13. Excitation voltage: 10～15VDC
14. Operating temperature: -40～+80℃
15. Allowable overload: 150% FS
16. Protection rating: IP68
17. Material: 17-4ph
18. Cable: Ф5×3000mm
