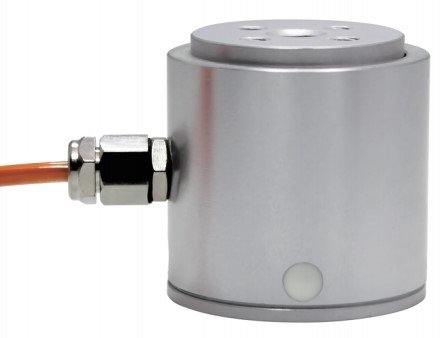

TAS516 Column type Load cell
INTRODUCTION:
HT SENSOR / TAS516 / Column type Load cell
Product description:
Capacity ：0~50kN
Aluminium Alloy
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing, motorizing equipment and testing field
-
설명
- |
-
Download as PDF
- |
SC9N은 무거운 계량 어플리케이션에 이상적인 컬럼형 폼팩터로 제작된 압축 로드셀입니다. 5톤에서 30톤까지 다양한 용량으로 제공되며, 대칭형 폼팩터로 설치 및 장착이 간편합니다.
The SC9N is a compression load cell built in the a column style form factor ideal for heavy weighing applications. Available in capacities from 5 Tonnes to 30 Tonnes, its symmetric form factor allow for easy installation and mounting.
| Model: | NF401 |
| Category： | Column Load Cells |
| Capacity: | 10,20,30,50N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF404 |
| Capacity: | 20,50,100,200,300,500,1000,2000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.
The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.
