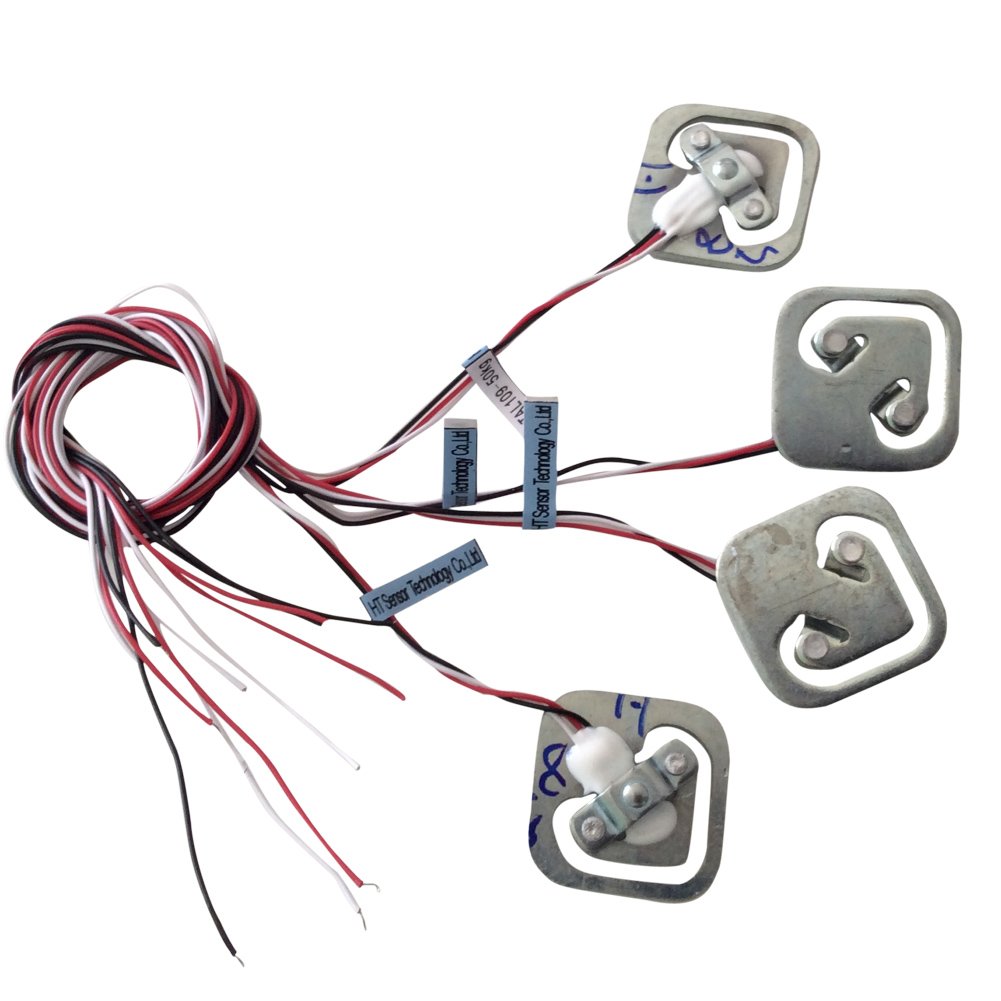

TAL109 Micro Load Cell
INTRODUCTION:
| Capacity | kg | 50 |
| Accuracy | %FS | 0.3 |
| Rated output | m V/V | 1.0 ± 0.15 |
| Recommend excitation | Vdc | 3 ~ 10 |

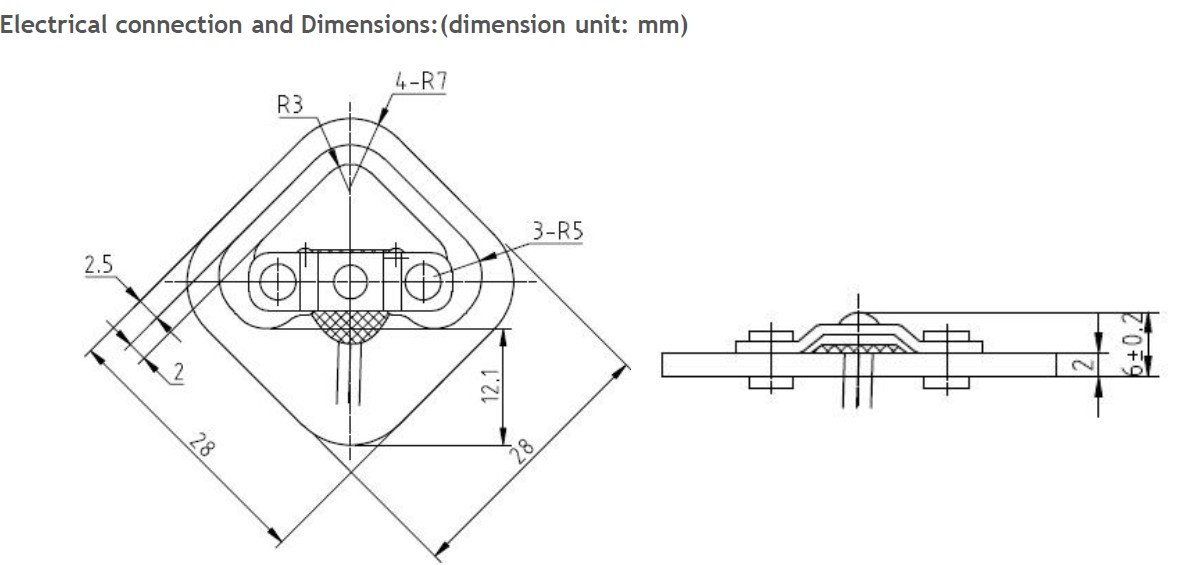

| Electrical connection | wire | 3 color wire , Ø0.8×40 cm |
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 50N-1KN
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
SC918은 체중계 및 저중량 계량 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC918은 최대 75kg의 고용량으로 설계되었지만, 50kg으로도 제공됩니다.
***SC918에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC918 is a half-bridge micro load cell ideal for body scales and low profile weighing applications. The SC918 is intended for high capacity with a maximum of 75kg but it is also available in 50kg.
***Mounting assembly/module may be necessary as the SC918 has no mounting holes***
SC700은 저용량, 소형 어플리케이션에 적합한 소형 로드셀입니다. 작은 크기에도 불구하고 최대 50kg의 용량을 지원합니다.
The SC700 is a miniature load cell that is ideal for low capacity, compact applications. It has a maximum capacity of 50kg despite its small size.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
SC134는 체중계에 적합한 마이크로 로드셀입니다. 간편한 설치를 위해 풀 브리지 및 하프 브리지 구성으로 제공됩니다. SC134는 초박형으로 평평하거나 낮은 두께의 어플리케이션에 적합합니다. SC134의 중앙 구멍은 고객 요구에 따라 맞춤 제작 가능합니다.
The SC134 is a micro load cell ideal for body scales. It is available in Full Bridge and Half Bridge configuration for simplified installation. SC134 is ultra thin ideal for flat or low profile applications. The center hole of the SC134 can also be customized depending on customer needs.
SC913A는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC913A는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 직사각형 프레임과 로드셀 본체에 미리 설치된 받침대가 있어 설치가 간편합니다. 특수 고객 설치를 위해 받침대 없이도 SC913A를 제공합니다.
***SC913에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC913A is a half-bridge micro load cell ideal for body scales or low profile applications. The SC913A is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has rectangular frame and feet pre-installed to the load cell body to simplify installation. SC913A is also available without feet for specialized customer installations.
***Mounting assembly/module may be necessary as the SC913 has no mounting holes***
- Capacity: 0-10T
- Sensitivity: 1.0-2.0mV/V
- Non-linearity 0.3% F.S.
- Repeatability 0.3% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
SC135B는 SC135의 특수 변형 모델입니다. 동일한 로우 프로파일 바디를 사용하지만, 더 작은 설치 환경에 적합하도록 장착 지점이 다릅니다. 따라서 최대 20kg의 낮은 용량을 처리할 수 있습니다. 알루미늄으로 제작되었으며, 포팅 소재를 사용하여 환경 친화적입니다.
The SC135B is a special variant of the SC135 It shares the same low profile body but its mounting points are different to accommodate smaller setups. As such, it can handle lower capacities up to 20kg. It is constructed from aluminum and environmentally protected by potting material.
