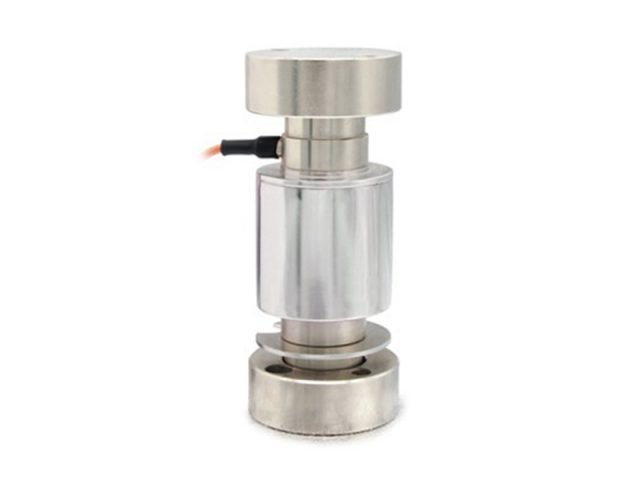

M36D Weighbridge Digital Load Cell
With a maximum capacity of 40 tons, M36D digital column type load cell is suitable for most standard truck scale installations. The load cell is manufactured from high-strength alloy steel, optional stainless steel for corrosive or wash-down environments. The IP68 protection ensures dependable performance in demanding outdoor conditions.
Features
- Digital signal output with strong anti-interference capability
- Improves the accuracy and consistency of multi-sensor truck scales
- Simpler wiring compared to analog systems
- IP68 protection, suitable for harsh outdoor environments
- Optional stainless steel material, corrosion resistant
- Suitable for intelligent networked weighbridge systems
- Interchangeable with below models: HMB* C16A, Mettler Toledo* 0782(30t) , Revere*ASC | ASC2, Zemic* BM14G, Flintec* RC3
Models
| Part No. | 120247 | 120248 | 120249 | 120250 |
| M36i | 20t | 30t | 40t | 50t |
| Part No. | 120251 | 120252 | 120253 | 120254 |
| M36D | 10t | 20t | 30t | 40t |
| Class | C3 | |||
| IP | IP68 | |||
Applications
- Digital truck scales and weighbridges
- Intelligent weighing systems with data integration
- High-traffic vehicle weighing stations
- Industrial and commercial weighbridge installations
Analog vs Digital Column Load Cells
Digital column type load cells are increasingly used in large or modern weighbridge systems due to their superior noise immunity, easier calibration, and improved long-term stability. They are particularly suitable for installations where accuracy, system diagnostics, and reduced maintenance are critical.
| Item | Specification |
|---|---|
| Capacity | 10 – 40 t |
| Sensitivity | 2.0 ± 0.01 mV/V |
| Accuracy | C3 |
| Creep (30 min) | ±0.016 – 0.023% F.S. |
| Zero Balance | ±1.5% Emax |
| Temperature Effect on Zero (TE* Zero) | ±0.011 – 0.017% FS / 10℃ |
| Temperature Effect on Span (TE* Span) | ±0.015 – 0.023% FS / 10℃ |
| Input Resistance | 700 ± 10 Ω |
| Output Resistance | 700 ± 5 Ω |
| Insulation Resistance | ≥ 5,000 MΩ (100 VDC) |
| Operating Temperature Range | -35 ~ 70 ℃ |
| Temperature Compensation Range | -20 ~ 60 ℃ |
| Safe Load | 150% F.S. |
| Overload Limitation | 200% F.S. |
| Recommended Excitation | 5 – 12 VDC |
| Protection | IP68 |
