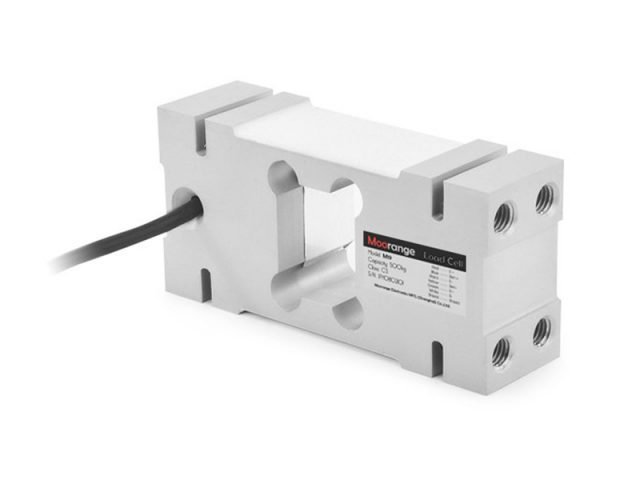

M19 M19M Single Point Load Cell
A classic single point load cell made of aluminum alloy, suitable for big weighing platforms.
- M19-CE
- M19M-OIML
- Capacity up to 2000kg
- Aluminum alloy material
- Default cable length is 3m, diameter is 6.2mm
(Optional customized longer cable) - Recommended platform: from 600*600mm to 1200*1200mm
- Interchangeable with below models: Tedea-Huntleigh* 1320, Celtron-HOC, Zemic* L6F, Flintec* PC81
| Part No. | 120071 | 120072 | 120073 | 120074 | 120075 |
| M19 | 200kg | 500kg | 750kg | 1000kg | 2000kg |
| Part No. | 120076 | 120077 | 120078 | 120079 | 120080 |
| M19M | 200kg | 500kg | 750kg | 1000kg | 2000kg |
| Class | C3 | ||||
| IP | IP65 | ||||
Capacity
100-2000kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (30 Min)
0.02%FS
Zero Output
± 2% Emax
TE* Zero
0.017%FS/10℃
TE* Sensitivity
0.014%FS/10℃
Input Resistance
409 ± 6Ω
Output Resistance
350 ± 3Ω
Insultation Resistance
≥5000mΩ(50VDC)
Opearting Tem Range
-35…65℃
Non-linearity
± 0.017% Emax.
Repeat
± 0.01% Emax.
Overload Limitation
150% F.S.
Recommended Excitation
5-12VDC
Protection
IP65
