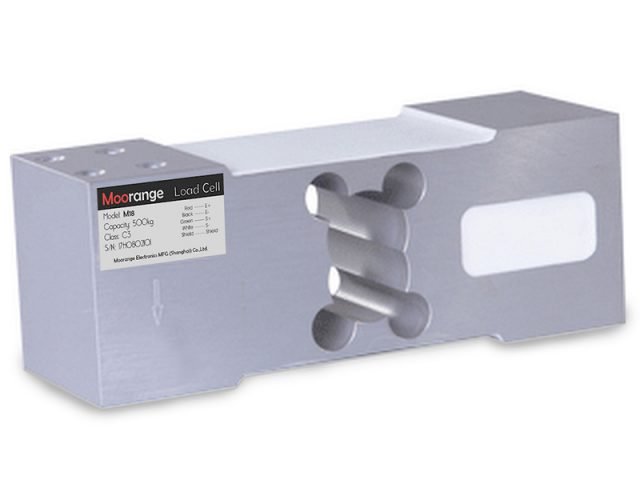

M18 Single Point Load Cell
A good single point load cell for bench scale, platform scale and medical scales
Aluminum alloy material
OIML & NTEP approval
Capacity up to 635Kg
Anodized load cell body
Recommended platforms:
from 300*300mm to 800*800mm
default of 3m Cable dia 5mm
Customized cable available
| Part No. | 120066 | 120067 | 120068 | 120069 | 120070 |
| M18 | 100kg | 200kg | 300kg | 500kg | 635kg |
| Class | C3 | ||||
| IP | IP65 | ||||
Capacity
100 – 635kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (30 Min)
0.015%FS
Zero Balance
± 2% Emax
TE Zero
0.017%FS/10℃
TE Span
0.014%FS/10℃
Input Resistance
406 ± 6Ω
Output Resistance
350 ±3Ω
Insultation Resistance
≥5000mΩ
Opearting Tem Range
-35…65℃
Safe Load
150% F.S.
Ultimate Overload
300% F.S.
Recommended Excitation
5-12VDC
Protection
IP65
