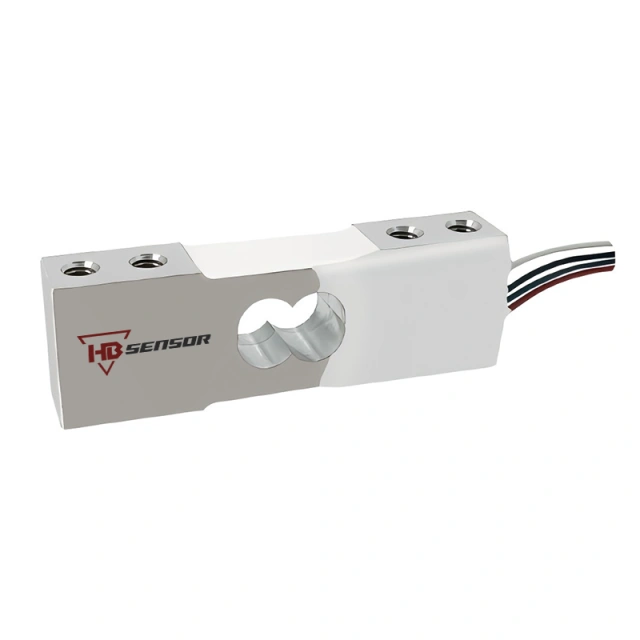

HBTLS608ZA3 High Accuracy Single Point Load Cell 80KG
Key Features:
Low Capacity: Accurately measures weights up to15kg-80kg
Compact Size: Dimensions of approximately 52mm in length, suitable for integration in space-constrained applications.
Aluminum alloy construction: Raw materials can be customized according to customer requirements
IP65 Protection Rating: The load cell is designed with an IP65 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Usage & Applications:
Weighing Scales: Used in portable or compact digital scales for precise weight measurement.
Commercial Scales: Commonly used in retail and supermarket electronic scales to help merchants weigh products accurately.
Industrial Weighing: Great for warehouse, logistics, and production line weighing systems to make sure goods and materials are measured accurately.
Medical Devices: Comes in handy for medical equipment that needs weight monitoring, like patient scales or when mixing medicines.
Food Industry: Helps ensure food products weigh what they’re supposed to during processing and packaging.
Laboratory Equipment: Perfect for research settings where you need super accurate measurements of different substances.
Intelligent Smart Products: Coffee vending machine , A variety of different miniature VENDING machines.

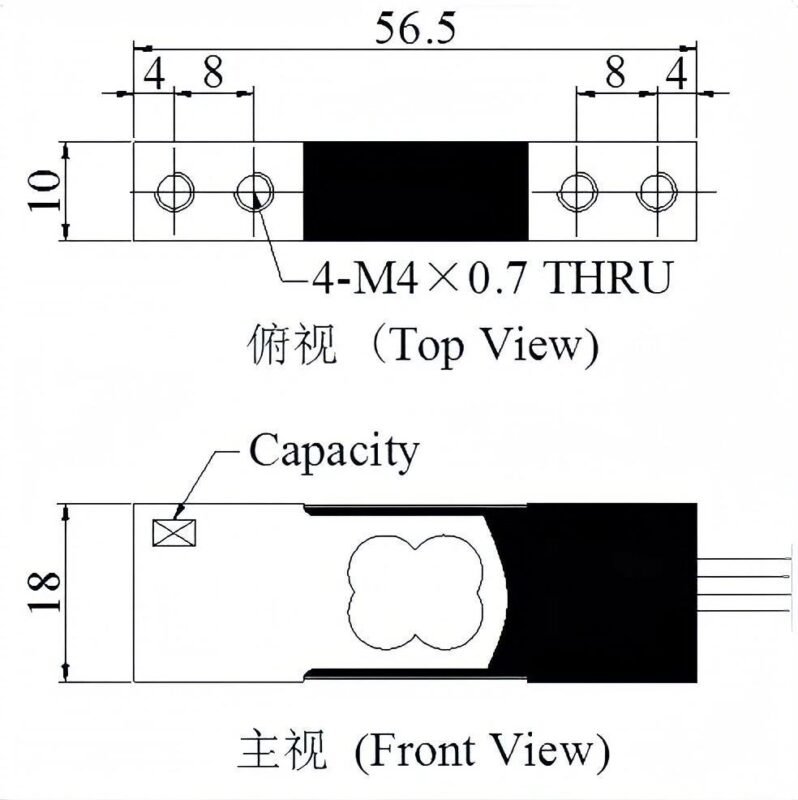

Dimension Size:56.5X10X18mm
Specifications:
| Rated Capacities | Temperature Effect On Output |
| 15-80KG | 2.0%R.O./10℃ |
| Rated Output | Temperature Effect On Zero |
| 1.5±0.15mv/v / 2.0±0.2mv/v | 2.0 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.0200 mV/V | 410±10 Ω |
| Non-linearity | Output Impedance |
| 0.02 %FS. | 350±5 Ω |
| Hysteresis | Insulation Impedance |
| 0.02 %FS. | ≥5000 MΩ |
| Repeatability | Recommended Excitation |
| 0.02 %FS | 5~12VDC |
| 3mins Creep | Maximum Excitation |
| 0.1 %FS/3MIN | 15VDC |
| 30mins Return | OperatingTemperatureRange |
| 0.02 %R.O. | -20~60 ℃ |
| Safe Overload | Construction |
| 120 %R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150%R.O. | IP66/IP67 |
| Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) | φ 0.8X0.6cm |
| Recommended Platform Size | 300X300mm |
| Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
