GALOCE / GTS200 / Dynamic Torque Sensor

  • Boot 5 minutes into the working status, not need preheating course.
  • high accuracy, good stability and anti-jamming.
  • Do not need repeated zero setting can measure positive and negative torque.
  • Small volume, light weight, easy to install.
  • The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
  • proportional to the torque.
Add to Wishlist
Share it:

GTS200 Dynamic Torque Sensor

APPLICATION

Digital Dynamic Torque Tester is a high precision testing measuring machine which is used for testing all kinds of torque, speed and mechanical power, which can be widely used as followings:

  1. To test the output torque and power of motor,engine,internal-combustion
  2. To test the torque of fan,water pump,gearbox and torque wrench even their
  3. To test the torque and power of railway locomotive, car, tractor, airplane, ship,mining
  4. It can be used in sewage disposal system to test its torque and
  5. It can be used in manufacturing
  6. It can be also used for process industry and flow



FEATURES

  1. Boot 5 minutes into the working status, not need preheating
  2. high accuracy, good stability and anti-
  3. Do not need repeated zero setting can measure positive and negative
  4. Small volume, light weight, easy to
  5. The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is proportional to the torque.



DETAILS:(mm)

Range(N.M) Φd ΦD2 A B C E F G H H1 C1 E2 L Key b*h*l*n
5 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
10 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
20 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
30 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
50 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
100 18 78 8 72 122 31 61 100 54 116 90 50 188 6x6x25x1
200 28 92 8 72 123 41 61 100 60 125 90 59 209 8x7x35x1
500 38 96 8 72 124 55 61 100 65 135 90 74 238 10x8x50x2
1k-2k 48 106 12 69 126 70 78 120 68 144 90 90 270 14x9x65x2
5000 75 144 12 69 131 105 156 180 90 185 100 139 347 20x14x95x2
10000 98 158 14 80 143 118 170 200 110 214 110 155 389 28x16x115x2
20k-30k 105 170 14 87 160 125 180 204 115 236 123 165 420 28x16x119x2
50k-60k 150 240 14 89 163 123 184 230 153 309 123 165 419 40x22x115x2
100k 170 270 16 95 188 200 194 240 169 340 140 252 598 45x25x195x2

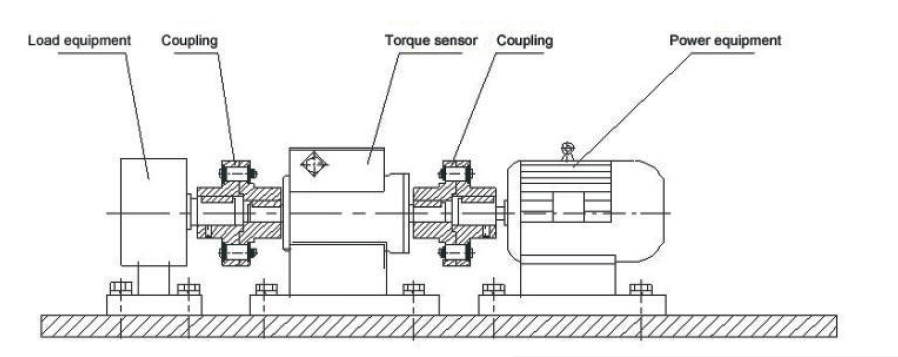

INSTALLATION SCHEMATIC

  1. Horizontal installations:
  2.  Vertical installations:

SPECIFICATIONS

Torque accuracy ＜±0.5 % F·S, ＜±0.25 % F·S, ＜±0.1 % F·S（Optional）
Frequency response 100μs
The nonlinear ＜±0.1 % F·S
Repeatability ＜±0.1% F·S
Return difference ＜0.1 % F·S
Zero time drift ＜0.2 % F·S
Zero temperature drift ＜0.2 % F·S /10℃
Using temperature －10 ~ 50℃
Storage temperature －40 ~ 70℃
Power supply voltage ±15VDC、24VDC(Optional）
Frequency signal output 5KHz—15KHz、0-20mA、4-20mA、0-5V、0-10V、1-5V（Optional）
Speed signal output 60 pulse/speed（0~5V/0~10V/4~20mA）



ELECTRICAL WIRING DEFINITION

The torque sensor uses an aerospace connector (with shielded cable). The shielded cable outlet line defines:

  1. Power supply: ±15V Output: 5-15KHZ Red: E+
    Bue: E- Black: GND
    Toque output: Yellow+  Black: –
  2. Power supply: ±15V Output: 5-15KHZ (Built-in speed sensor) Red: E+
    Bue: E- Black: GND
    Toque output: Yellow+ Black – Speed output: White+  Black –
  3. Power supply: ±15V Output: 4-20mA
    Red: E+
    Bue: E- Black: GND
    Output: Yellow+  White-
  4. Power supply: ±15V Output: 4-20mA (Built-in speed sensor)
    Red: E+
    Bue: E- Black: GND
    Toque output: Yellow+ Green – Speed output: White+  Gray:-
  5. Power supply: 24V Output: 5-15KHZ
    Red: 24V
    Black: GND
    Torque Output: Yellow+  Blue-
  6. Power supply: 24V Output: 5-15KHZ (Built-in speed sensor)
    Red: 24V
    Black: GND
    Torque Output: Yellow+ Blue- Speed output: White+  Blue-
  7. Power supply: 24V Output: 4-20mA
    Red: 24V
    Black: GND
    Torque Output: Yellow+  Blue
  8. Power supply: 24V Output: 4-20mA (Built-in speed sensor)
    Red: 24V
    Black: GND
    Torque Output: Yellow+ Green- Speed output: White+       Gray-
