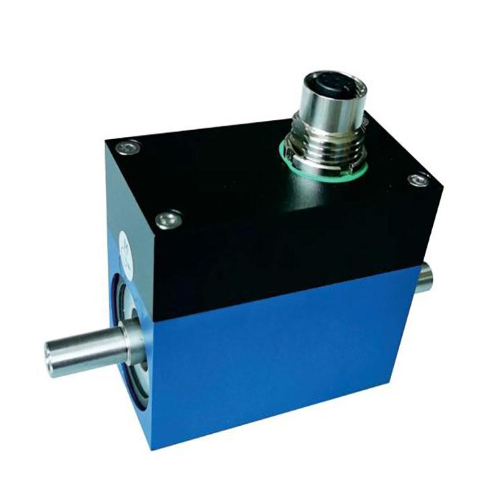

Contactless dynamic torque sensor 0.1-5Nm NF603C
Features
Contactless dynamic torque sensor 0.1-5Nm NF603C can reach speeds of up to 8,000 rpm in both clockwise and counterclockwise direction, and the rotary torque sensor is suitable for measuring torque mainly in small ranges (up to 5 Nm). Rotational torque transducer can be mounted between motor and load through couplings.
- High precision
- Stable and reliable performance
- High speed and long time operation
Applications
- Torque measurement of servo motors, pumps, engines etc.
- Valve torque testing
- Torque measurement

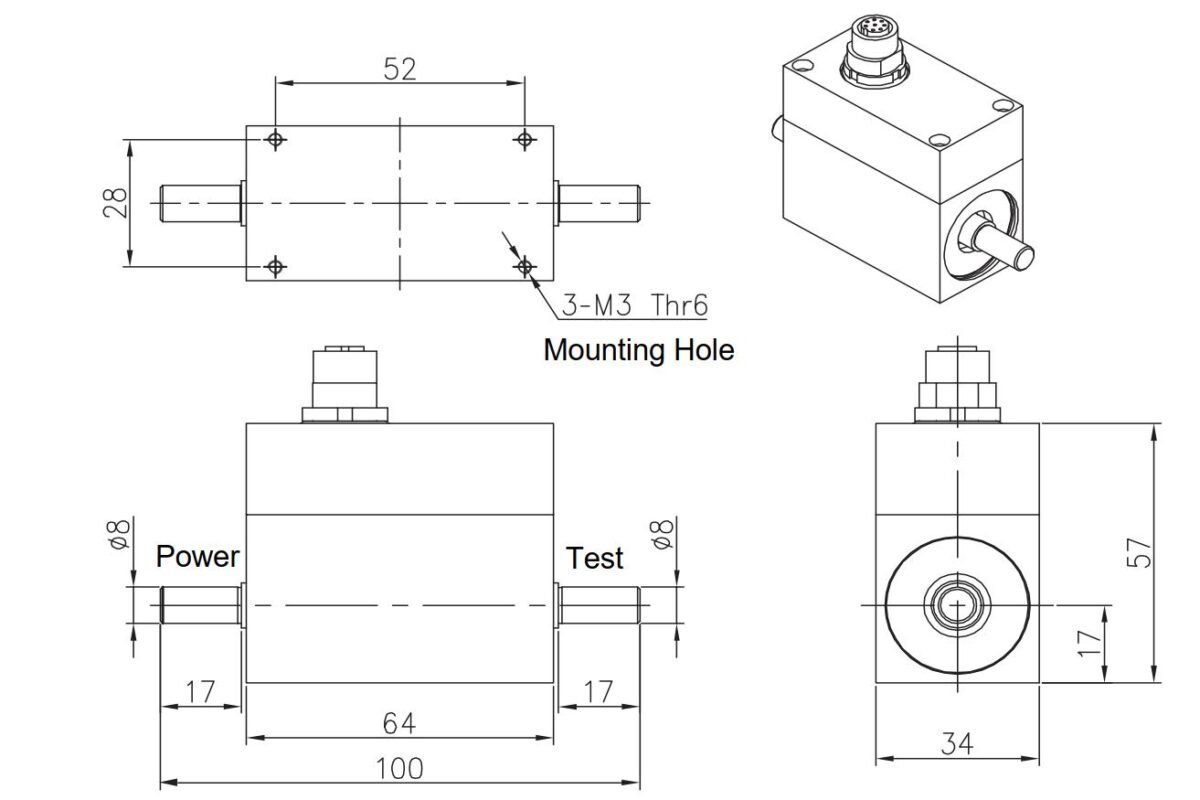

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 0.1~5N.m |
| Speed range | 8000rpm |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 12-30VDC |
| Compensated temp range | –10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 5m |
| IP Class | IP65 |
