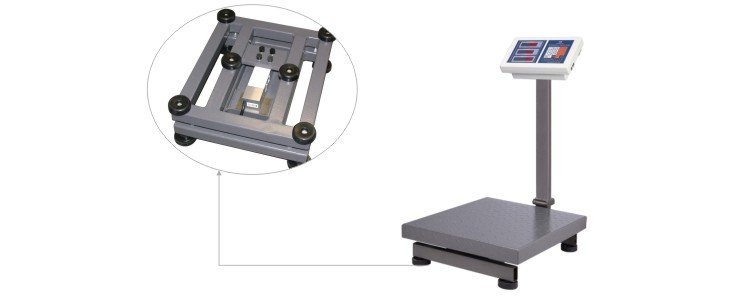

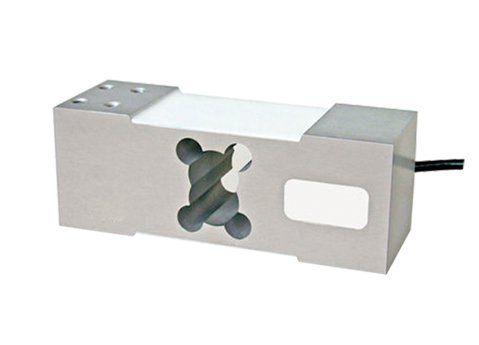

GPB147 Floor scale Single ended beam load cells
What is specifications of GPB147 Load cell?
| Specifications: | |
| Range: 100, 150, 200, 250, 300, 350, 500 (KG) | |
| Accuracy : C2 | Temp. effect on span(%F.S/10℃): ±0.02 |
| Comprehensive error(%F.S) : ±0.02 | Temp. effect on zero(%F.S/10℃) : ±0.03 |
| Rated output(mv/v) : 2.0±0.1 | Compensated temp. range(℃ ) : -10~+40 |
| Creep(%F.S/30min) : ±0.02 | Use temp. range(℃ ) : -20~+60 |
| Zero balance(%F.S) : ±1.0 | Excitation voltage(V) : 9~12(DC) |
| Input resistance(Ω) : 405±10 | Safe overload (%F.S) : 120 |
| Output resistance(Ω) : 350±3 | Ultimate overload (%F.S) : 150 |
| Insulation resistance(MΩ) : ≥5000(100VDC) | Defend grade : IP65 |

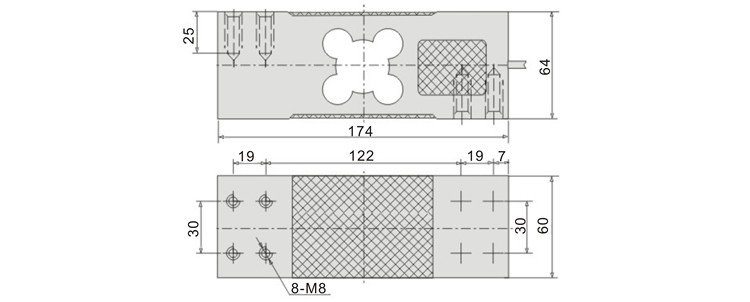

What is dimension of GPB147 Load cell?
